4 Replacement Procedures 4.24 North bridge (and GPU) heat sink/CPU heat sink/Fan/CPU
12. Unlock the CPU by turning the cam counterclockwise on the CPU socket by 180
degrees with a flat-blade screwdriver.

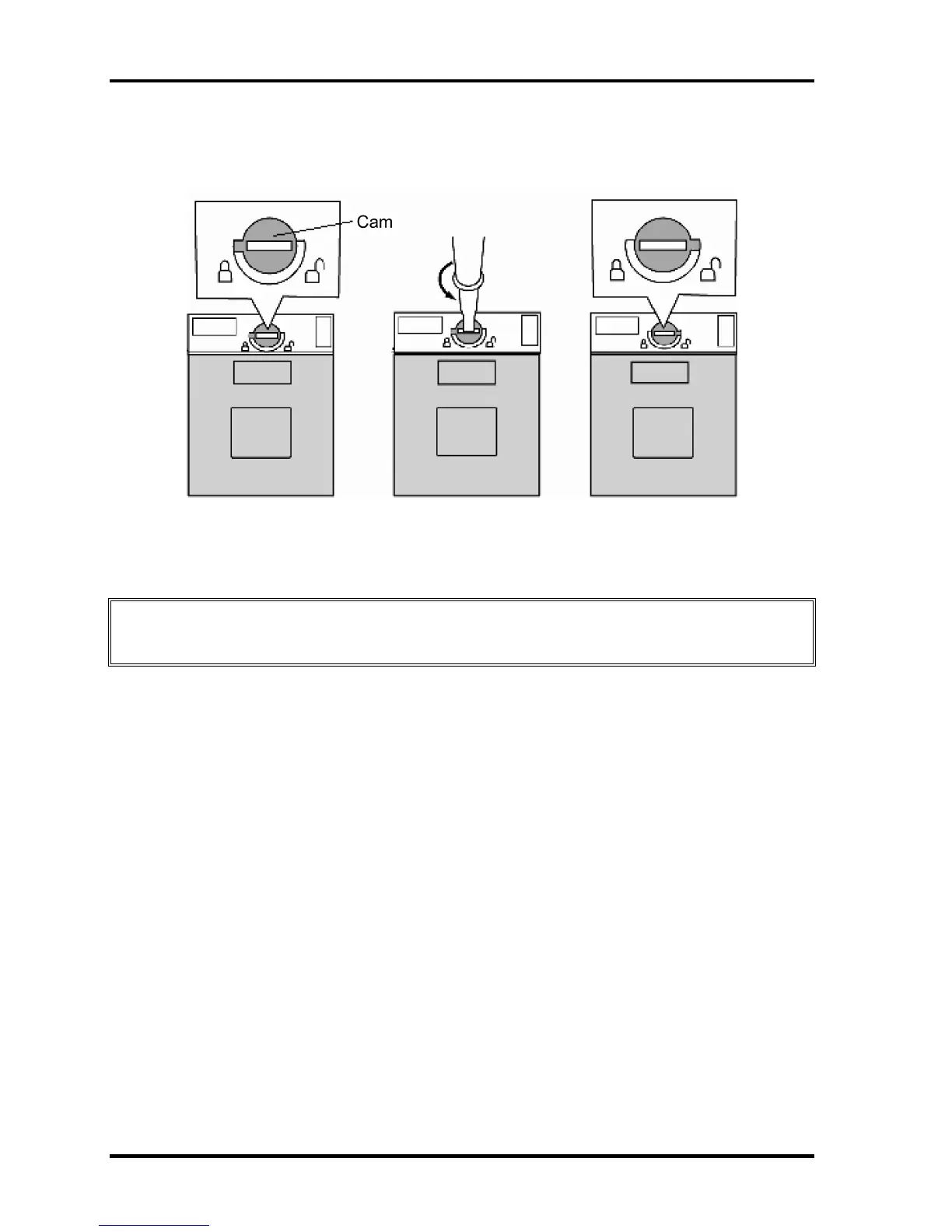

Figure 4-42 Removing the CPU
13. Remove the CPU.
CAUTION: When removing the CPU, lift it up right above. Otherwise, pins of the CPU
may be damaged.
4-70 [CONFIDENTIAL] TECRA A9/TECRA S5/TECRA P5/Satellite Pro S200 Maintenance Manual (960-633)
