4 Replacement Procedures 4.30 Hinge
3. Remove the following screws securing the right hinge.
• M2.5×4B FLAT HEAD screw ×1
• M2.5×6C Tapping screw ×1
4. Release two hooks and slide the right hinge inside to remove it through the hole.
5. Remove the following screw securing the left hinge.
• M2.5×6C Tapping screw ×1
6. Release the hook and slide the left hinge inside to remove it through the hole.
M2.5×6C Tapping
Hinge (right)
Hook
M2.5×6C Tapping
M2.5×4B FLAT HEAD
Hinge (left)

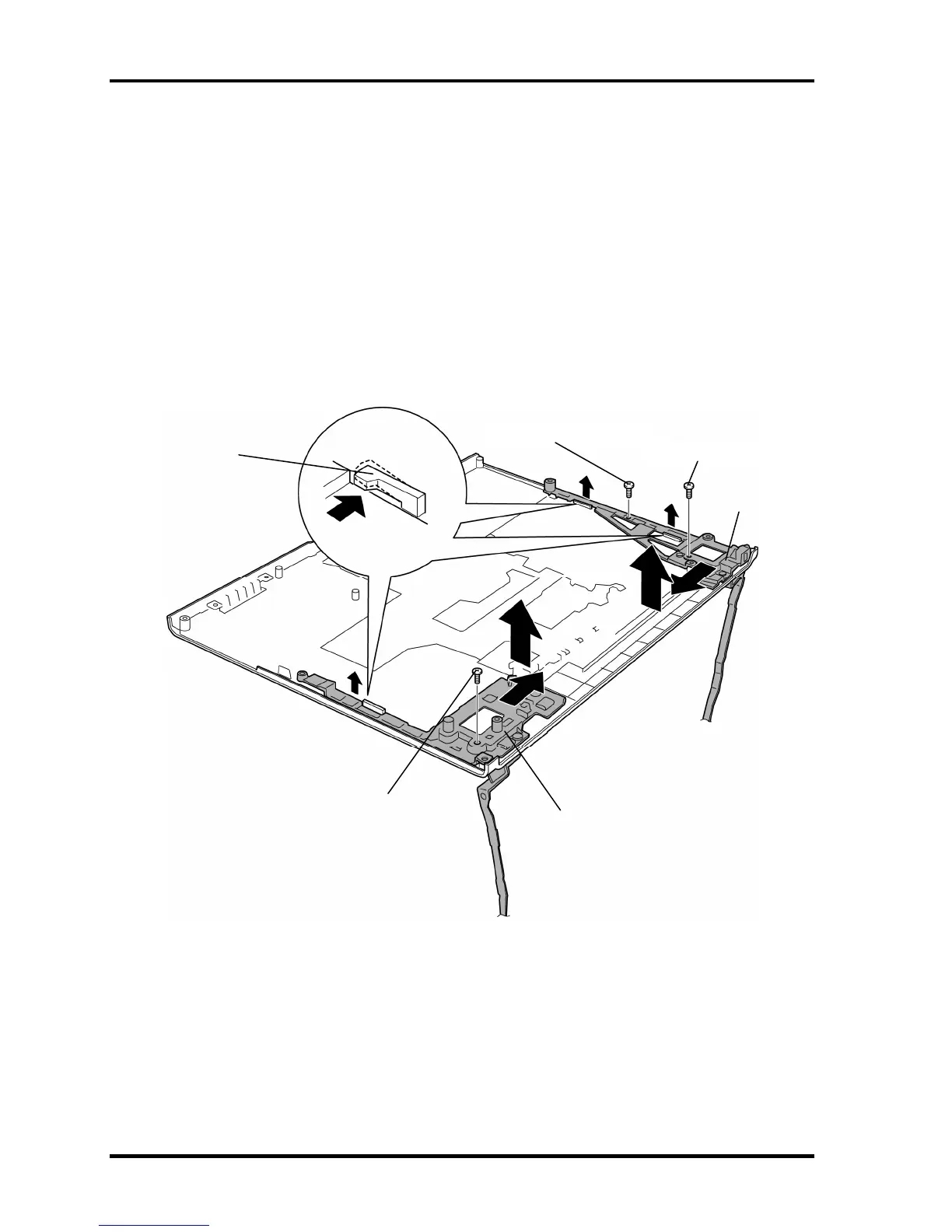

Figure 4-53 Removing the hinge
