User Guide 444
Configuring QoS Class of Service Configuration
â– Configuring the 802.1p to Queue Mapping
Choose the menu QoS > Class of Service > 802.1p Priority to load the following page.

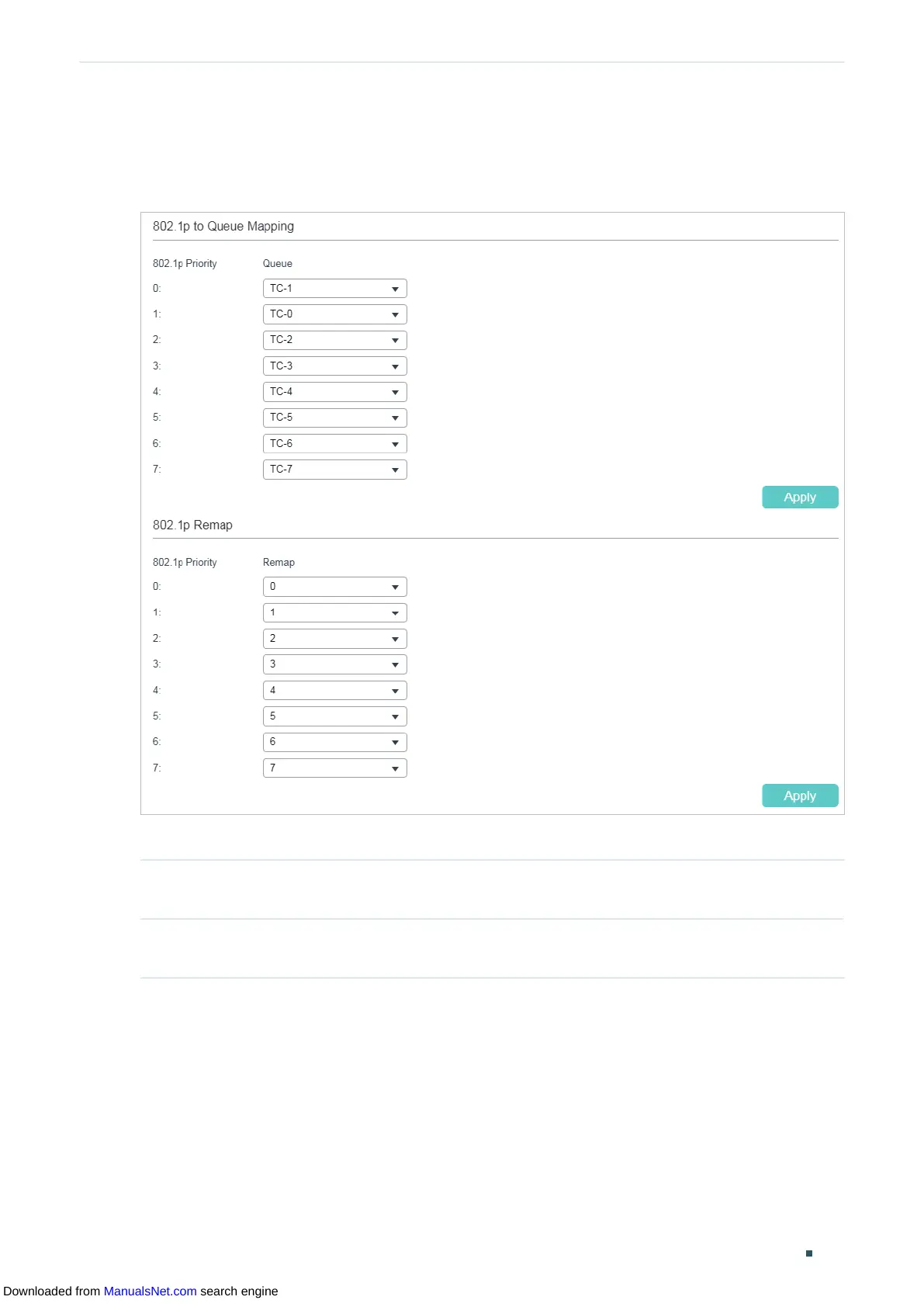

Figure 2-6 Configuring the 802.1p to Queue Mapping
In the 802.1p to Queue Mapping section, configure the mappings and click Apply.
802.1p Priority Displays the number of 802.1p priority. In QoS, 802.1p priority is used to
represent class of service.
Queue Select the TC queue for the desired 802.1p priority. The packets with the desired
802.1p priority will be put in the corresponding queue.
