User Guide 573
Configuring 802.1x Configuration Example

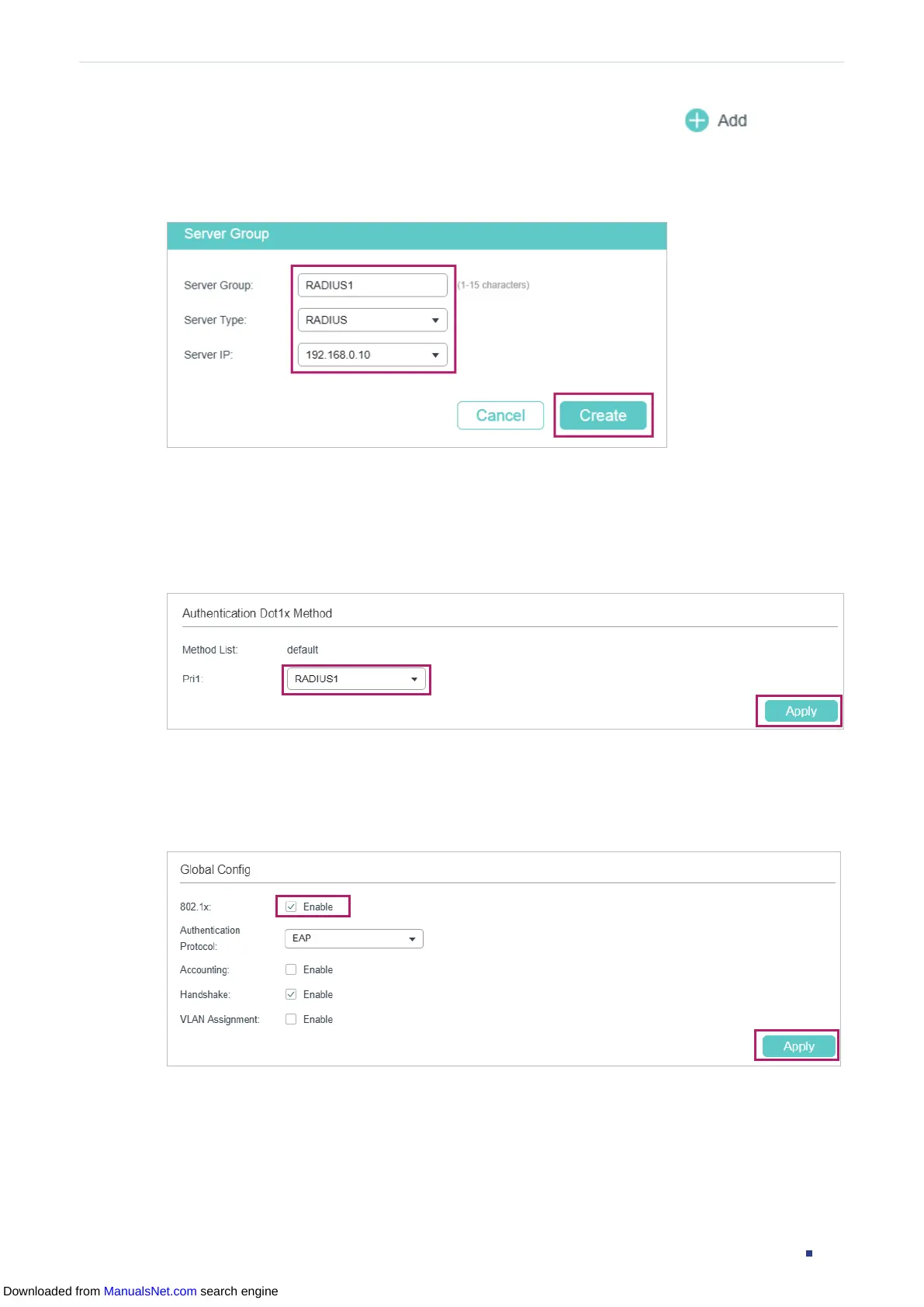

2) Choose the menu SECURITY > AAA > Server Group and click to load the
following page. Specify the group name as RADIUS1, select the server type as RADIUS
and server IP as 192.168.0.10. Click Create.
Figure 3-3 Creating Server Group
3) Choose the menu SECURITY > AAA > Dot1x List to load the following page. In the
Authentication Dot1x Method section, select RADIUS1 as the RADIUS server group for
authentication, and click Apply.
Figure 3-4 Configuring Authentication RADIUS Server
4) Choose the menu SECURITY > 802.1x > Global Config to load the following page.
Enable 802.1x authentication and configure the Authentication Method as EAP. Keep
the default authentication settings. Click Apply.
Figure 3-5 Configuring Global Settings
5) Choose the menu SECURITY > 802.1x > Port Config to load the following page. For port
1/0/1, enable 802.1x authentication, set the Control Mode as auto and set the Control
Type as MAC Based; For port 1/0/2 and port 1/0/3, disable 802.1x authentication.
