2-6 Model 3022A Condensation Particle Counter
5. Change the fuses:
Note: Two European 5 × 20 mm fuses are required in the
European-Fusing Arrangement.
Invert the fuse block and slide it back onto the screw and the
pedestal.
6. Tighten the screw and replace the power-entry module cover.
The fuse(s) that enters the housing first is the active one.
Mounting the Bottle Bracket
Mount the black anodized aluminum bracket (found in the
accessory kit) to the back panel using two 8-32 ×
3
/8-inch screws
and two no. 8 lockwashers as shown in Figure 2-6.
Place the fill bottle in the bracket (also found in the accessory kit
with tubing and a quick-disconnect fitting). Connect the fitting to
the Liquid Supply connector on the back panel. Both mated fittings
are leak-tight when disconnected.

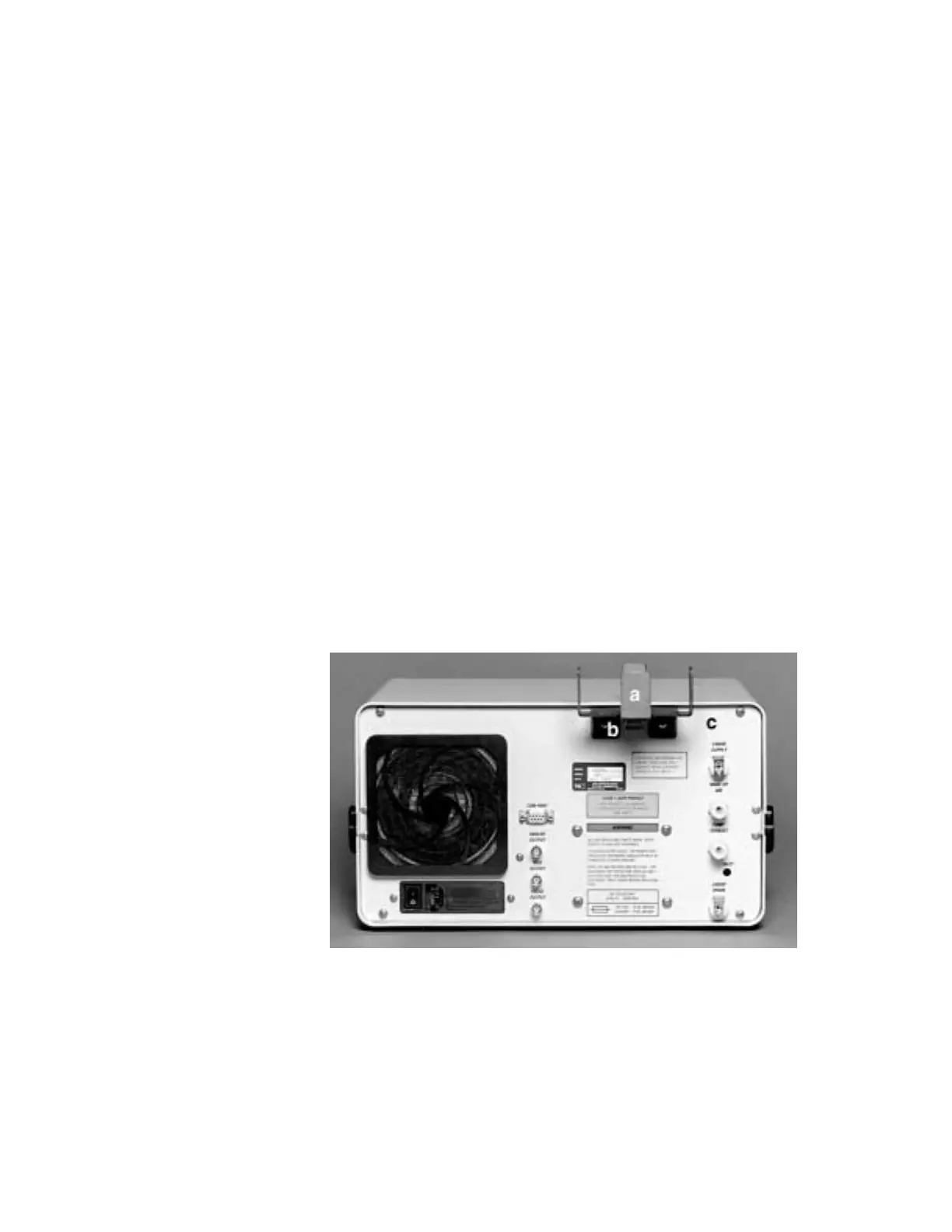

Figure 2-6
Mounting the Bottle Bracket: (a) Bottle Bracket; (b) Screw, 8-32 ×
3
/8 Phillips Pan-
head Lockwasher, #8 Internal Tooth; (c) CPC Back Panel
