TSI Instruments 3022A User Manual

9-8 Model 3022A Condensation Particle Counter
insert the tip of a medium-size flat screwdriver under the short
sides of the chip and gently twist.
TSI
CPC Front View
Side Bar
Screws (4)
Front Panel
Screws (4)
Top Cover
Screws (6)
Condensation Particle Counter

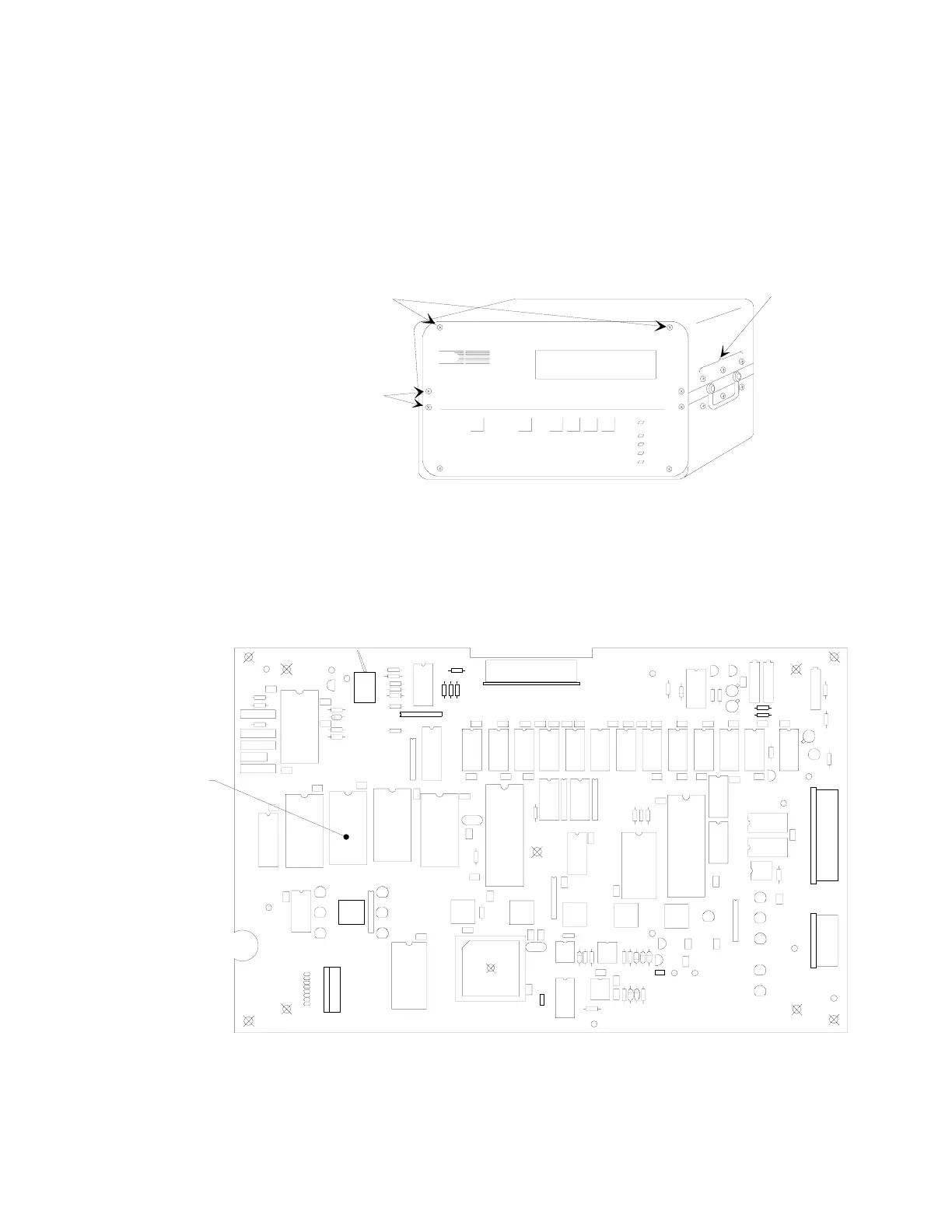

Figure 9-5
Model 3022A CPC Screw Locations
6. Remove the updated version of the EPROM from its static
protective wrapper.
TSI INCORPORATED
P.C. BOARD NO. 2605511 REV C
EPROM
Figure 9-6
EPROM Location on the Model 3022A CPC Display Board
