2-12 Model 3022A Condensation Particle Counter

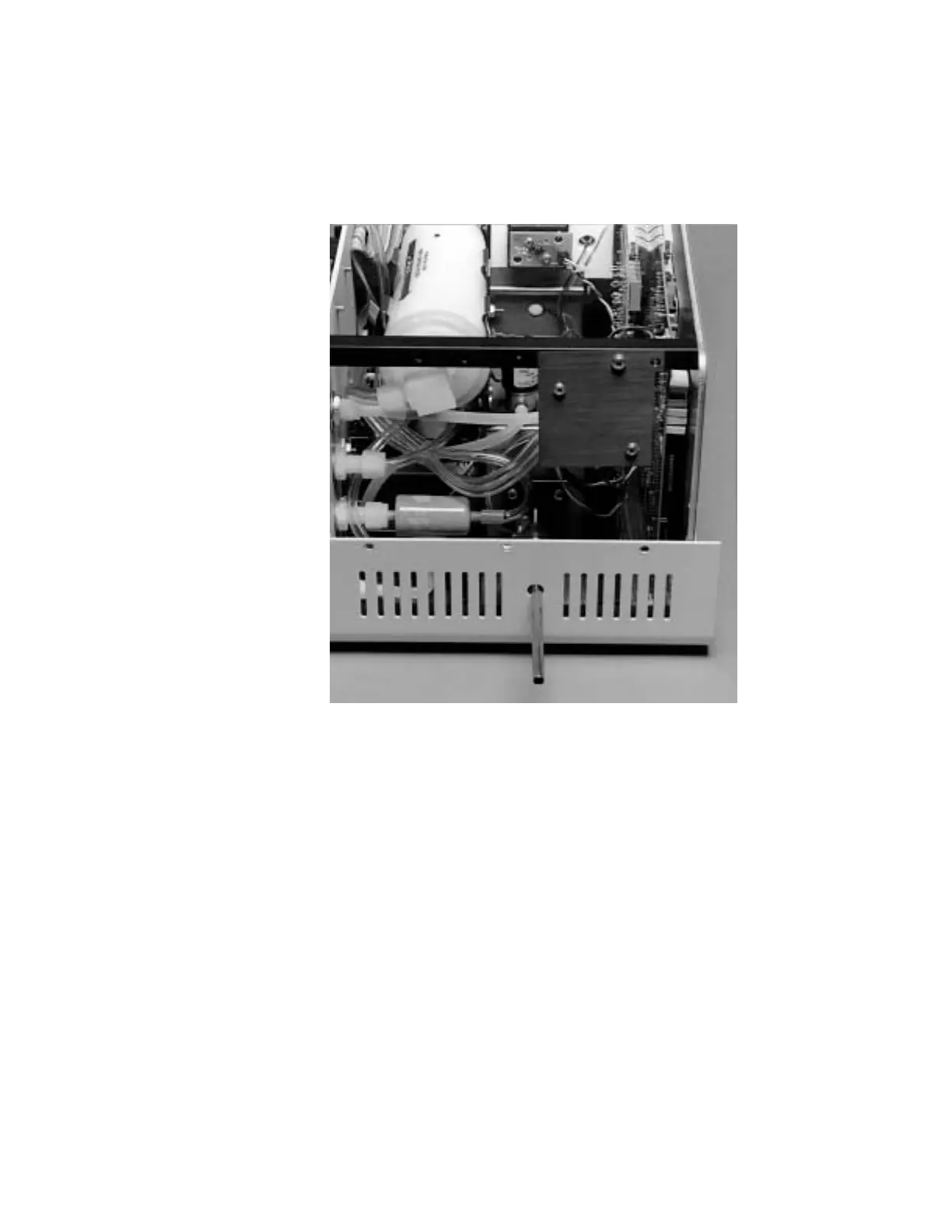

Figure 2-8d
Side Inlet Option with the 2.8-in. Inlet Tube
Applying Power to the CPC
Plug the power cord into the connector on the back panel and then
plug it into the AC power source.
Note: Make certain the power cord is plugged into a grounded power
outlet. Position the UCPC so the appliance coupler is easily
accessible.
Apply power to the CPC with the switch next to the power cord on
the back panel.
The front panel now displays the phrase “TSI” and begins a
warmup sequence. After warm-up, the fluid begins to fill the
internal reservoir in the saturator. The CPC is nearly ready to start
making measurements.
