2-8 Model 3022A Condensation Particle Counter
2. Loosen the Swagelok
®
nuts connected to the CPC’s inlet tube as
well as the saturator inlet tube (see Figure 2-7). Remove the
CPC’s inlet tube by sliding it through the front panel.
Note: It is not necessary to remove the nuts, as shown in
Figure 2-7. Just loosen the nuts to avoid losing them.

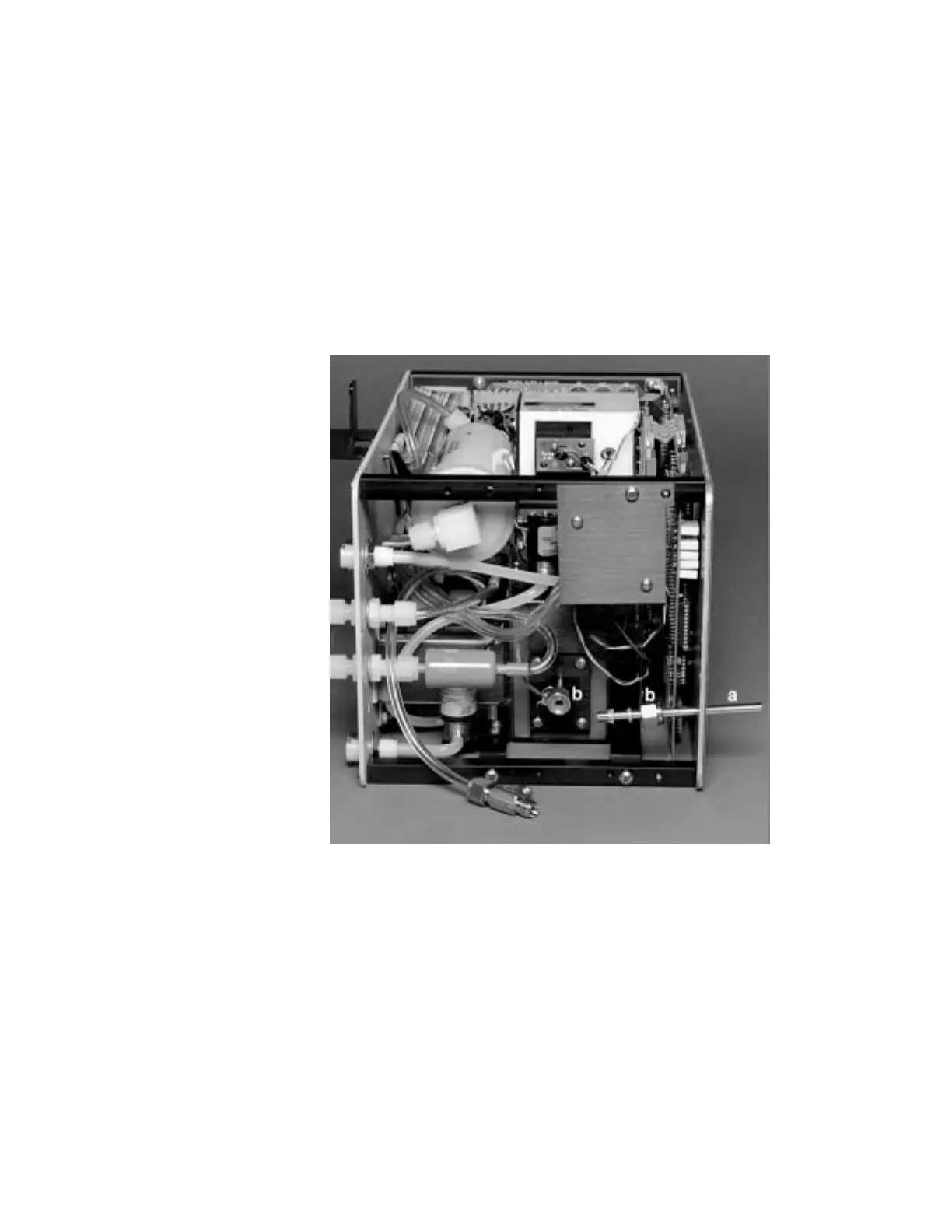

Figure 2-7
Removing the Front Inlet Tube; (a) Pull Inlet Tube Out; (b) Loosen Swagelok Nuts,
2 Places
3. Reconfigure the tubes, found in the accessory kit, according to
Figures 2-8a through 2-8d. Tighten the fittings finger-tight, then
¼-turn with a wrench.
For Figures 2-8c and 2-8d: To use the side inlet, install the
bottom cover, insert the 2.8-in. insert tube, and then tighten the
Swagelok nut.
