D-8 Series 3080 Electrostatic Classifiers
9. Enter the data into the EC program under Bypass Flow
Calibration tab (Figure D-7) and click on the Set Calibration
button.
10. Exit the Bypass Calibration Screen on the Classifier and close
the software window.

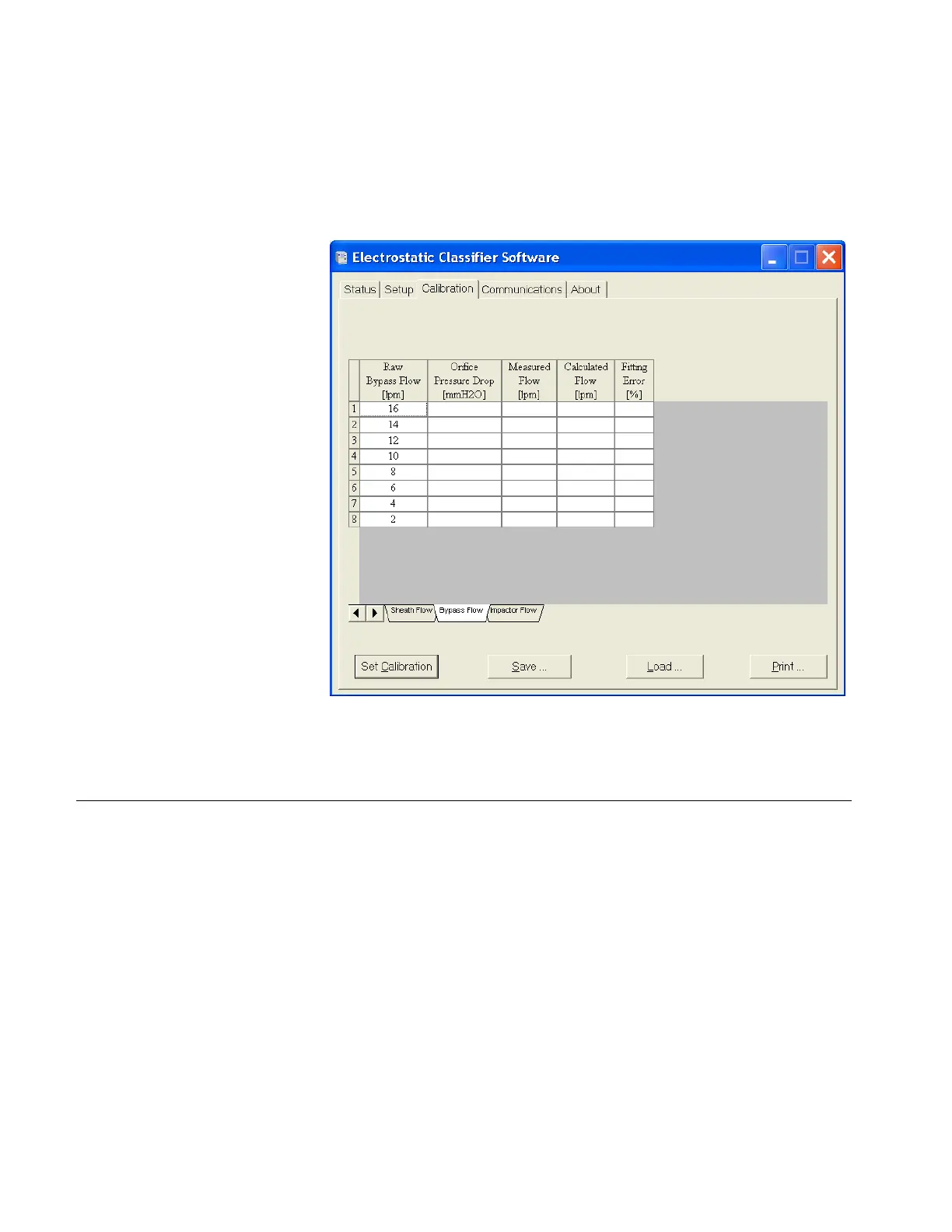

Figure D-7
Bypass Flow Calibration Tab
Impactor Calibration
1. Select MENU from the main screen on the front panel display
of the 3080 Electrostatic Classifier.
2. Select Flow Calibration.
3. Select Impactor Flow.
4. Set Pressure Drop to .0 cmH
2
O and wait 60 seconds until flow
has completely stopped.
