6–16 Series 3080 Electrostatic Classifiers
10. Install the new chip into the vacant socket by aligning the
notch on the top center of the chip with the notch shown on
the silkscreen.
11. Slightly insert one row of pins, then push the chip sideways to
insert the other row.
12. Once both rows of pins are slightly inserted, press the EPROM
firmly the rest of the way into the socket.
13. Inspect the socket to make sure that all pins are inserted into
the socket.

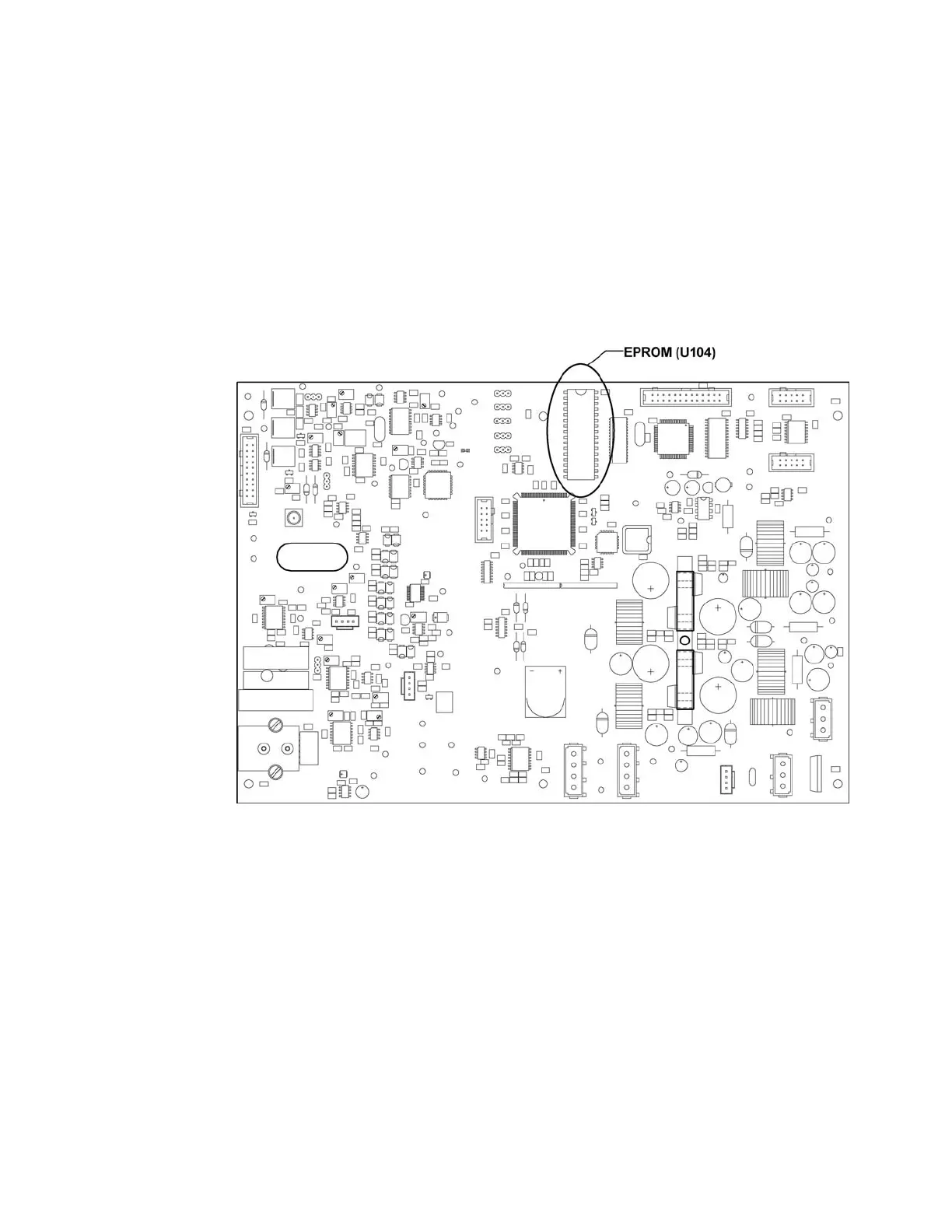

Figure 6-10
Location of the EPROM on the Main PC-Board
14. Swing the front panel shut making sure that no cables or
tubing are pinched.
15. Tighten the three captive screws on the inside left of the front
panel (you may have to move the panel up or down slightly to
get the screws to engage).
16. Replace the cover on the instrument.
17. Tighten the seven screws holding the cover in place.
18. Insert the power cord into the power entry connector on the
back of the instrument.
