Unpacking and Setting up the System 2–3

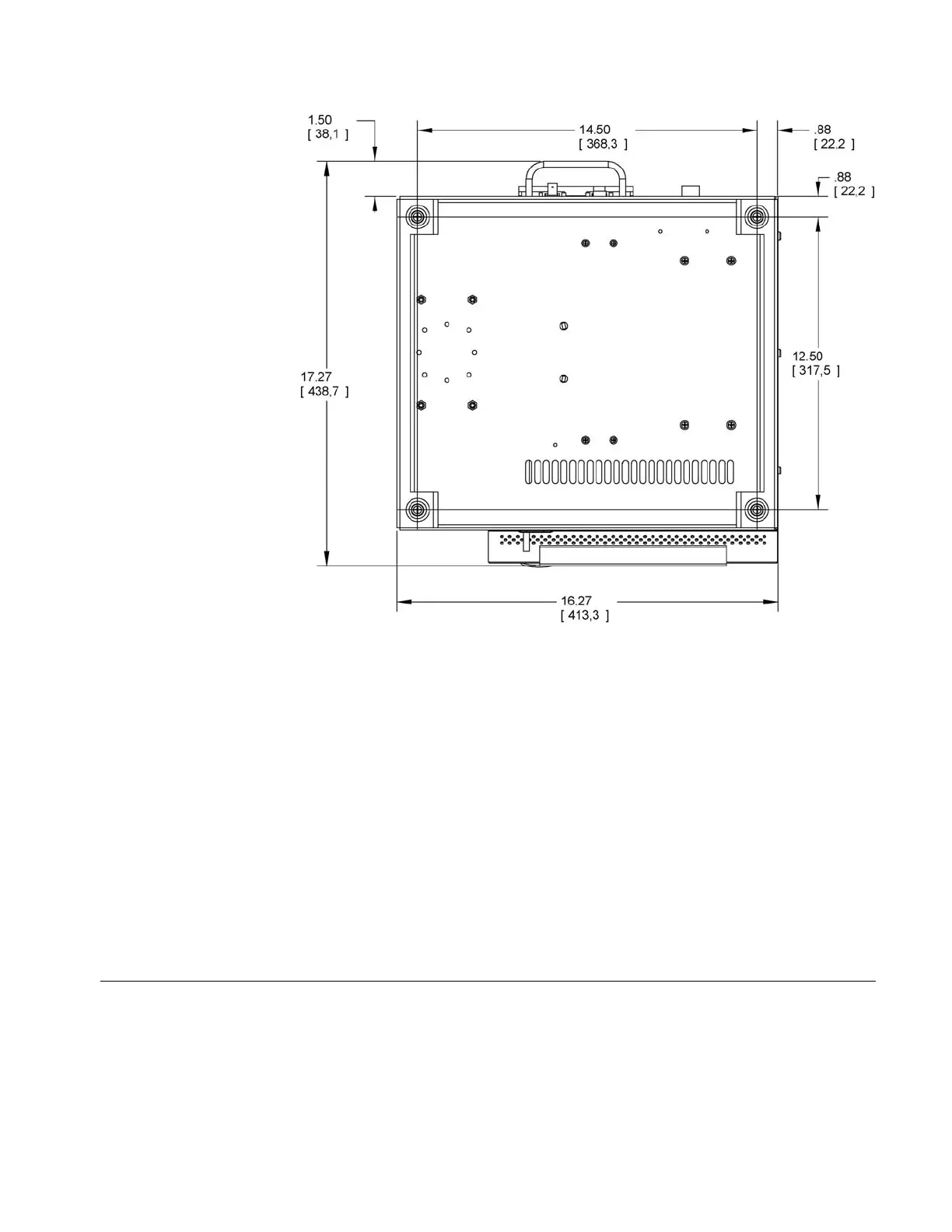

Figure 2-1
Bottom View of Electrostatic Classifier Showing Location of Rubber Feet. Feet can
be removed to provide mounting points on cabinet. Dimensions are in inches [mm].
Ventilation Requirements
The Classifier cabinet is designed to be cooled by room air drawn in
through a filter from the back of the cabinet and exhausted through
holes at the side, front, and bottom of the cabinet.
The cabinet should be installed with at least 2-inch (50-mm)
clearance between the back panel and left-side panel and any other
surface. Also, the cabinet should be set on a clean, hard surface so
that the exhaust air can move freely from the base of the cabinet.
Power Connection
Connect the AC power cord (supplied) to the AC POWER IN
connection on the back of the Classifier and then into an available
power outlet. It is not necessary to select the correct voltage
because the instrument accepts line voltage of 100 to 240 VAC,
