Unpacking and Setting up the System 2–13
Nano DMA Mounting
The Classifier uses a quick-connect bracket to mount any of the
two TSI DMAs. This mount provides physical support for the DMA
as well as electrical grounding for safety.
Caution
If, for any reason, you operate the Classifier with a DMA that is not
installed in the mounting bracket, you must connect the base of the
DMA to the chassis of the Classifier with a ground strap or provide
independent earth grounding to the DMA for safety.
The mounting bracket has a spring-loaded locking mechanism that
holds the base of the DMA securely. To install the DMA use the
following steps:
1. Place the base of the DMA down into the middle of the
mounting plate on the Classifier as shown in Figure 2-10.
2. Slide the base toward the cabinet of the Classifier until you hear
a click. If you have trouble getting the plates to slide, try
wiggling the DMA plate from side to side slightly as you push or
try a little grease on intersecting parts of the plates.

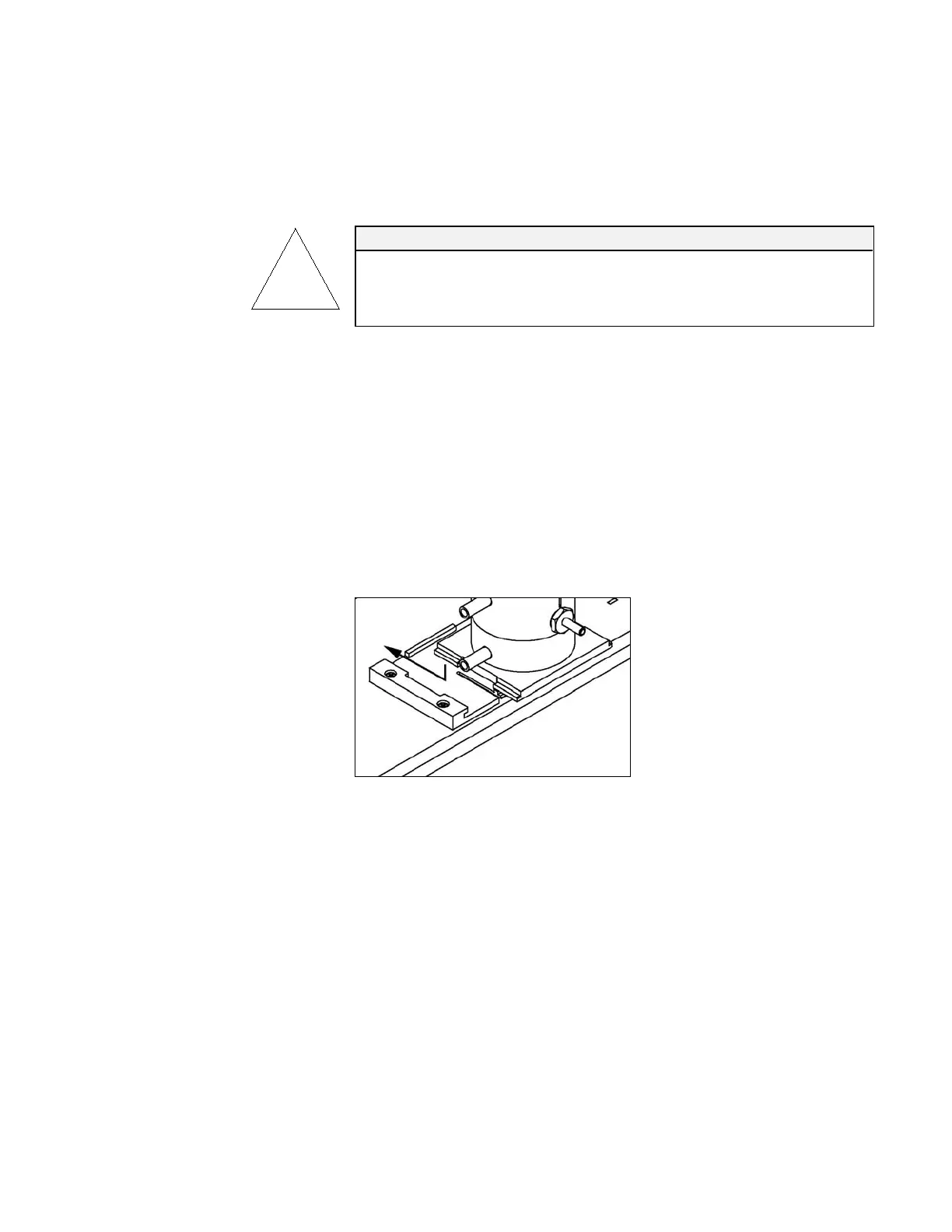

Figure 2-10
Installing Nano DMA in Mounting Bracket. Push down and toward cabinet until
spring locks in place.
To remove the DMA refer to Figure 2-11 and use the following
steps:
1. Place a flat-bladed screwdriver between the DMA baseplate and
the mounting plate locking spring.
2. Push the screwdriver in about
1
⁄8 inch [3 mm] and twist the
screwdriver to unlock the spring.
3. Pull the DMA away from the cabinet and then up to release it.
