6–18 Series 3080 Electrostatic Classifiers

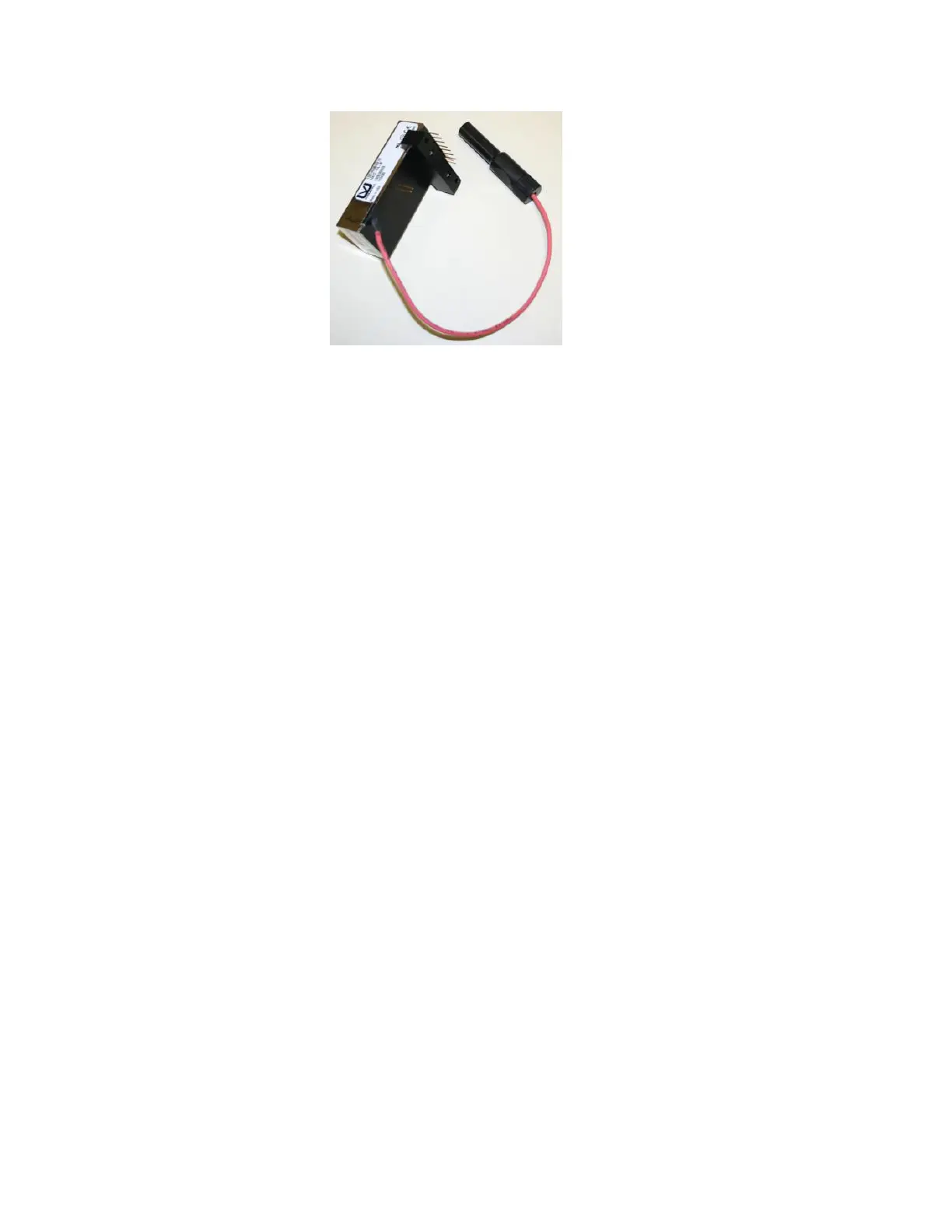

Figure 6-12
Positive High-Voltage Controller
The two different polarity HV controllers can be identified by their
different model numbers:
Negative polarity HV controller: 10A12-N4-M (Default)
Positive polarity HV controller: 10A12-P4-M (Optional)
Follow the steps below to replace the negative HV controller with
the positive HV controller physically in the 3080 Electrostatic
Classifier:
1. Turn off the power of the 3080 and disconnect the electrical
power cable.
2. Remove the cabinet cover of the 3080 by loosening the seven (7)
screws securing the cover (the screws do not have to be
removed)
3. Disconnect the long black HV controller connector by pulling it
up and then loosen the two screws on the sides of the HV
controller body from the mounting bracket as shown in
Figure 6-11 and Figure 6-13.
