3–2 Series 3080 Electrostatic Classifiers
The LCD display is used in conjunction with the control knob to
adjust the various flows, high voltage, particle size settings and
many menu items. The 320 × 240 pixel LCD display provides
continuous real-time display of settings.

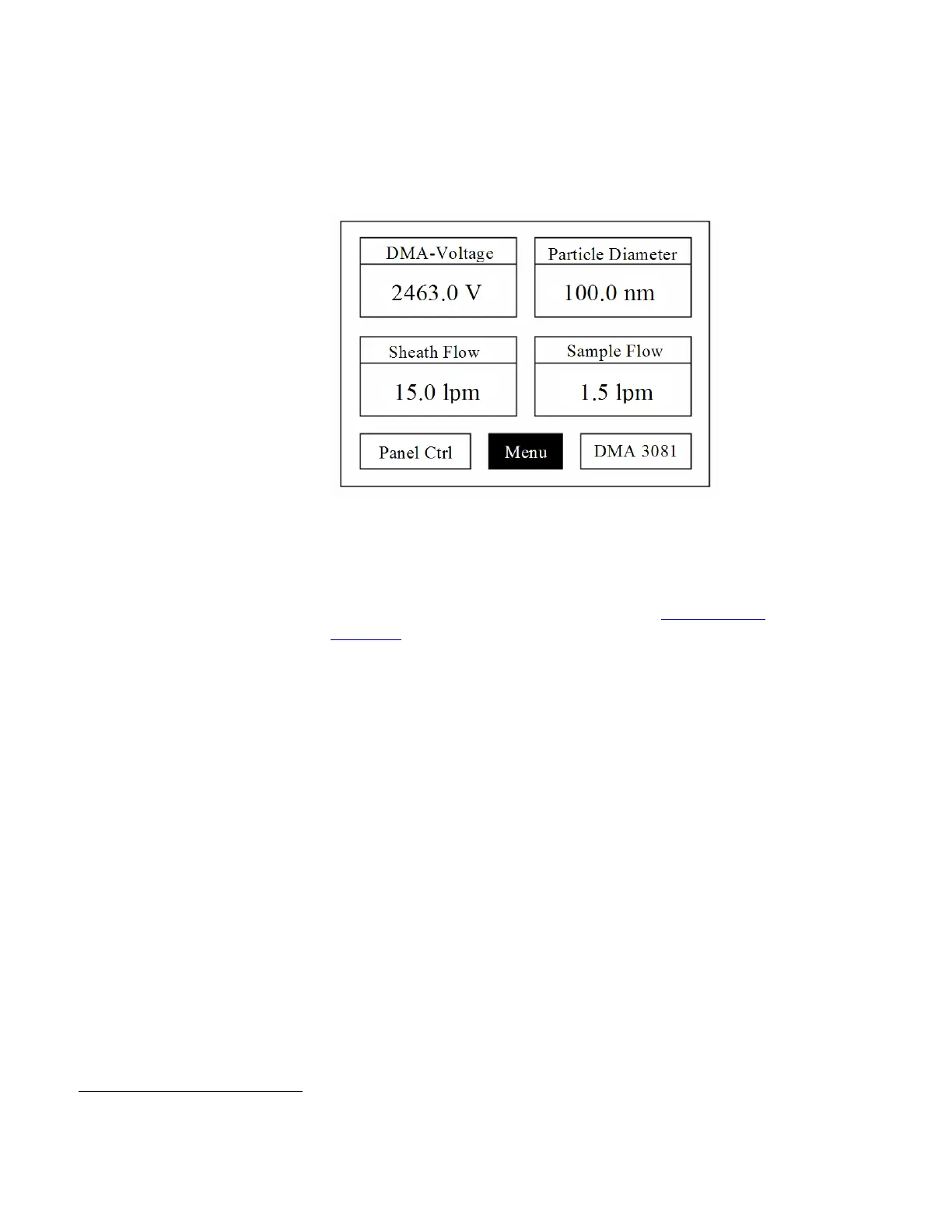

Figure 3-2
Classifier LCD Display
There are several operations you can perform using the control
knob with the display. Refer to Chapter 5, “Operating the
Classifier,” for a description of how to make selections and change
values on the menu.
Aerosol Inlet
The aerosol inlet on the front of the Classifier is designed for use
with the impactor. Tubing can be attached to the inlet to sample
directly when necessary. The inlet is 0.25 inch (6.35 mm) in
diameter for use with ¼-inch Swagelok
®
-type connectors or with
flexible tubing with a slightly smaller inner diameter.
Note: Conductive tubing is recommended for use with the Classifier
to minimize particle loss due to electrostatic charge. Suitable
tubing is available from TSI.
®
Swagelok is a registered trademark of Swagelok® Companies, Solon, Ohio.
