3–1
CHAPTER 3
Controls, Indicators,
and Connectors
Use the information in this chapter to familiarize yourself with the
location and function of controls, indicators, and connectors on the
Model 3080 Electrostatic Classifier.
This chapter is organized into four sections describing aspects of
the instrument: Front Panel, Back Panel, Side Panel, and Internal
Components.
Front Panel
The main components of the front panel are the LCD display, the
control knob, the three status LEDs, the aerosol inlet and
neutralizer chamber as shown in Figure 3-1.

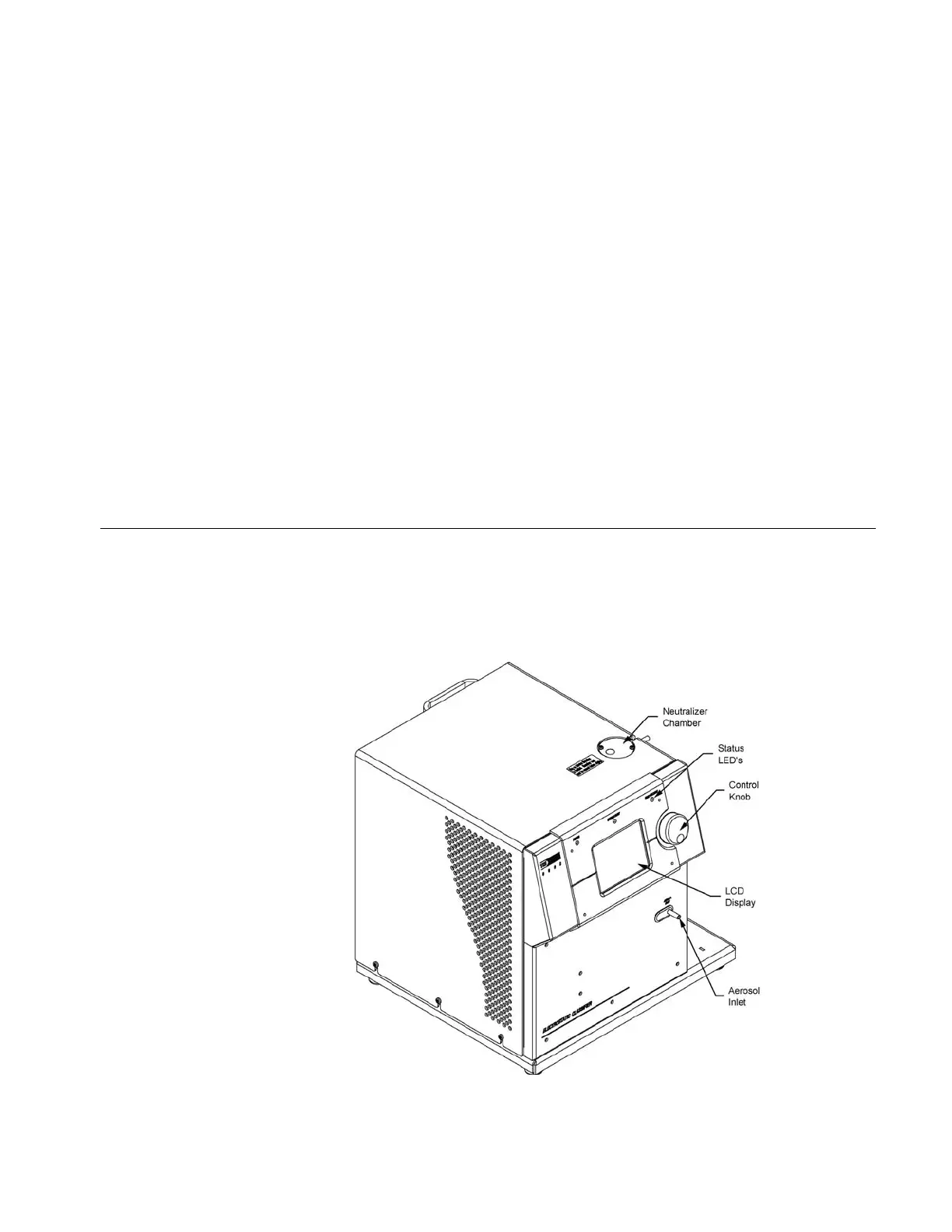

Figure 3-1
Front of the Model 3080 Electrostatic Classifier
