Control, Indicators, and Connectors 3–7
Impactor High/Low
The impactor fittings are used to connect an internal pressure
transducer to the tubes connected to the impactor on the inlet of
the Classifier. This allows you to display the aerosol flow rate on the
front panel (based on a calibration stored in the Classifier for each
impactor nozzle).
High Voltage Out for DMA Only
This is a specialized high-voltage connector for use with all TSI
DMAs to connect the high-voltage supply in the Classifier to the
DMA.
Internal Components
The main internal components are shown in Figure 3-5. For a more
detailed explanation of these components refer to Chapter 5
.

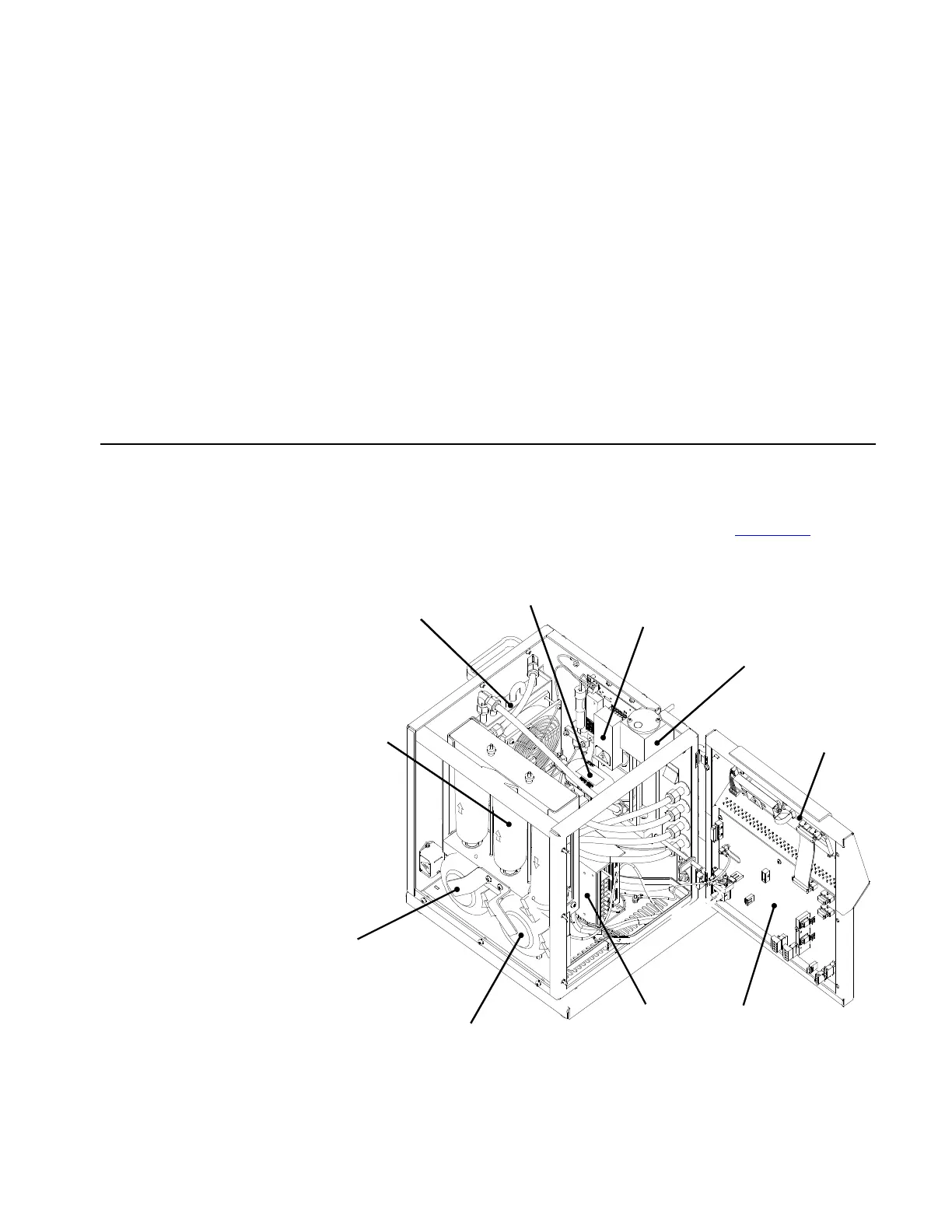

Figure 3-5
Main Internal Components
