Classifier Calibration D–5

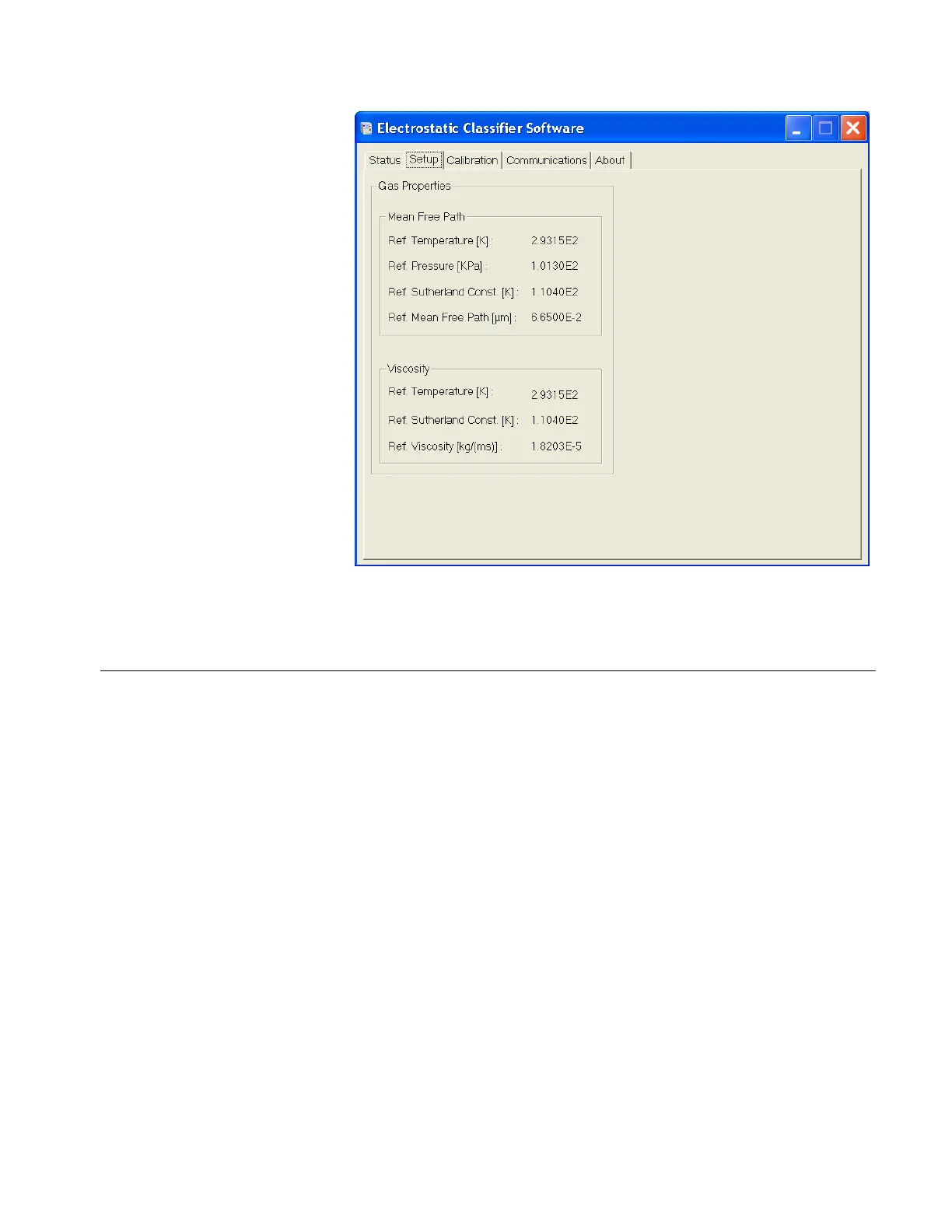

Figure D-5
Setup Tab
Sheath-Air Calibration
The flows described below are calibrated at TSI and normally do not
need to be recalibrated. These instructions are intended for the
advanced user that may wish to perform a field calibration.
It is best to calibrate the flows in the order described in this
section. A primary standard flowmeter such as an electronic bubble
flowmeter is required. The Classifier is calibrated at TSI using a
Gilman Gilibrator Electronic Bubble Flowmeter. Contact your TSI
representative to order a calibration flowmeter.
Equipment needed:
 Volumetric Flowmeter Standard

3
⁄8 to ¼ adapter
 Computer with EC software loaded and connected to Serial port
of Classifier
1. Select MENU from the main screen on the front panel display
of the 3080 Electrostatic Classifier.
