2–12 Series 3080 Electrostatic Classifiers
Table 2-3
Tubing Connections for Model 3081 Long DMA
Tube # Length Description Part No.
1 13-in [330-mm] Black, fits ¼-in [6.35-mm] fitting 3001903
2 23-in [584-mm] Black, fits
3
⁄8-in [9.5-mm] fitting 3001904
3 10.5-in [267-mm] Black, fits
3
⁄8-in [9.5-mm] fitting 3001904
4 6.5-in [165-mm] Black, fits
3
⁄8-in [9.5-mm] fitting 3001904

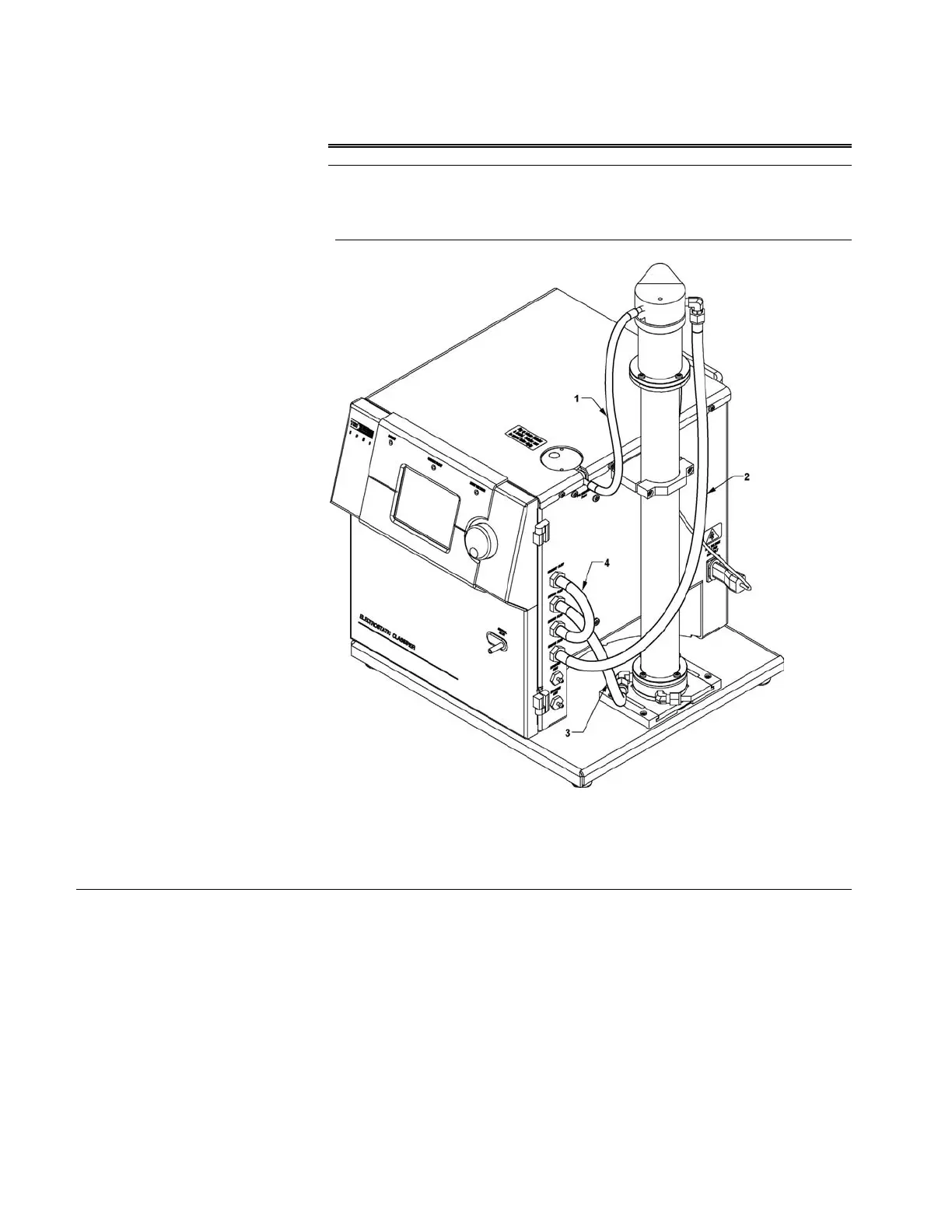

Figure 2-9
Tubing Configuration for the Model 3081 Long DMA
Installing Model 3085 Nano DMA
If your order included a Nano DMA, it will be shipped separately
from the Classifier and must be assembled to the Classifier before
use. The following section describes how to mount the Nano DMA,
install plumbing and connect the high-voltage line.
