D301087 0308 - BL20 CANopen 3-19

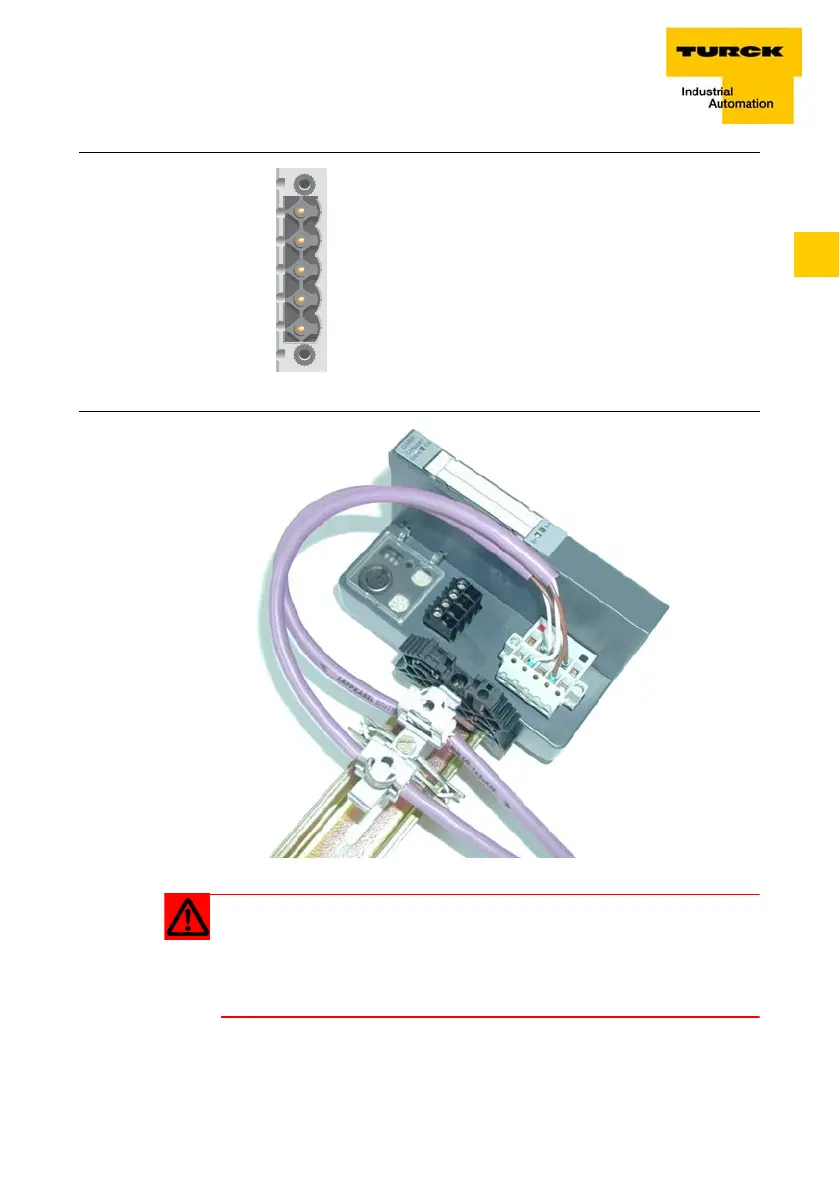

Connections of the data cables to BL20-GWBR-CANopen
3
Figure 8:
Open Style con-
nector (male)
Figure 9:
Shielding connec-
tion for an
BL20-GWBR-CAN-
OPEN
Attention
No compensating current should flow through the shielding.
To achieve this, a reliable system of equipotential bonding must be
installed.
CAN L
SHIELD
CAN H
GND
