Service Interface Connection
The following cable can be used to connect the service interface
(female PS/2 connector) to a PC for the purpose of using
I/O-ASSISTANT (project planning and diagnostic software).
 special I/O-ASSISTANT-connection cable from TURCK
(IOASSISTANT-ADAPTERKABEL-BL20/BL67; Ident-no.:
6827133)
Connection with I/O-ASSISTANT-Connection Cable
The I/O-ASSISTANT-cables have a PS/2 male connector (connec-
tion for female connector on gateway) and a SUB-D female
connector (connection for male connector on PC).

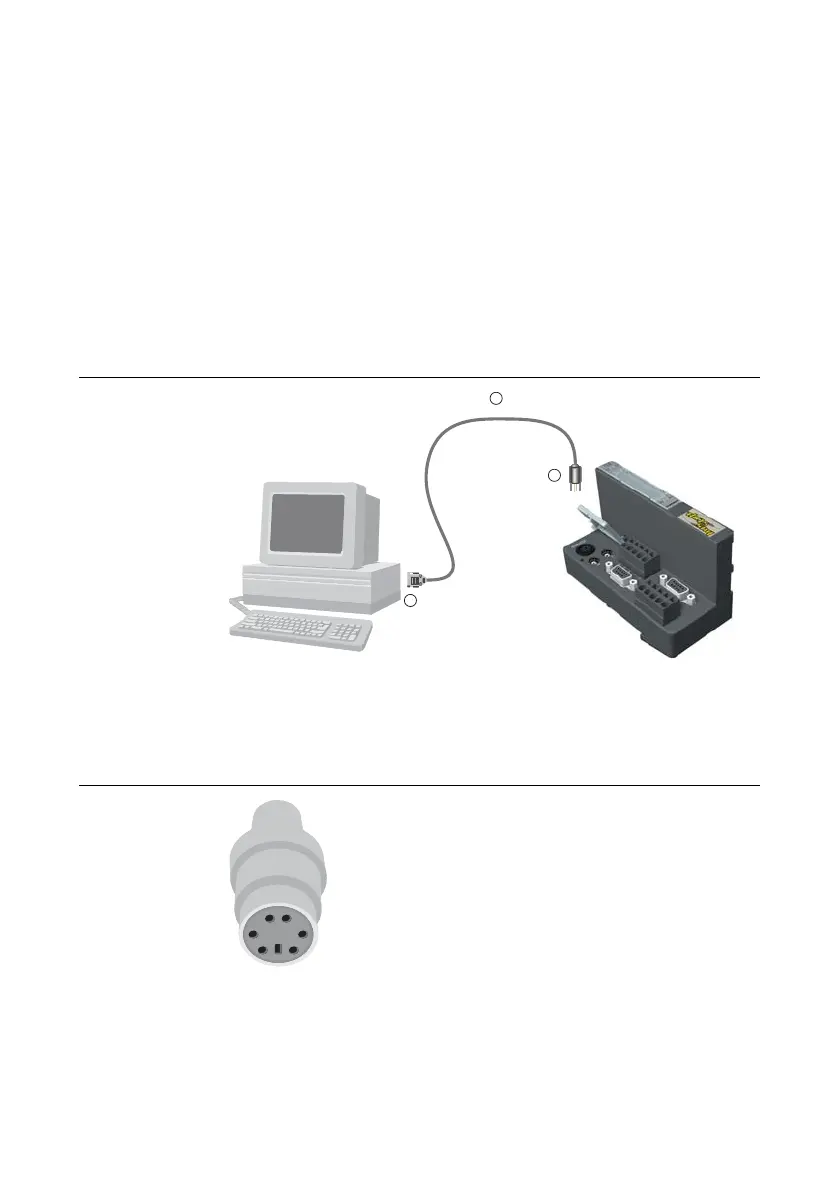

Figure 10:
BL20-gateway
connected to PC
via special cable
A SUB-D socket
B BL20 connect-
ing cable
C PS/2 plug
Figure 11:
PS/2 male con-
nector on the con-
nection cable to
the gateway (top
view)
b
a
c
A
B
C
43
16
25
