D301087 0308 - BL20 CANopen 3-21
Connections of the data cables to BL20-GWBR-CANopen
3

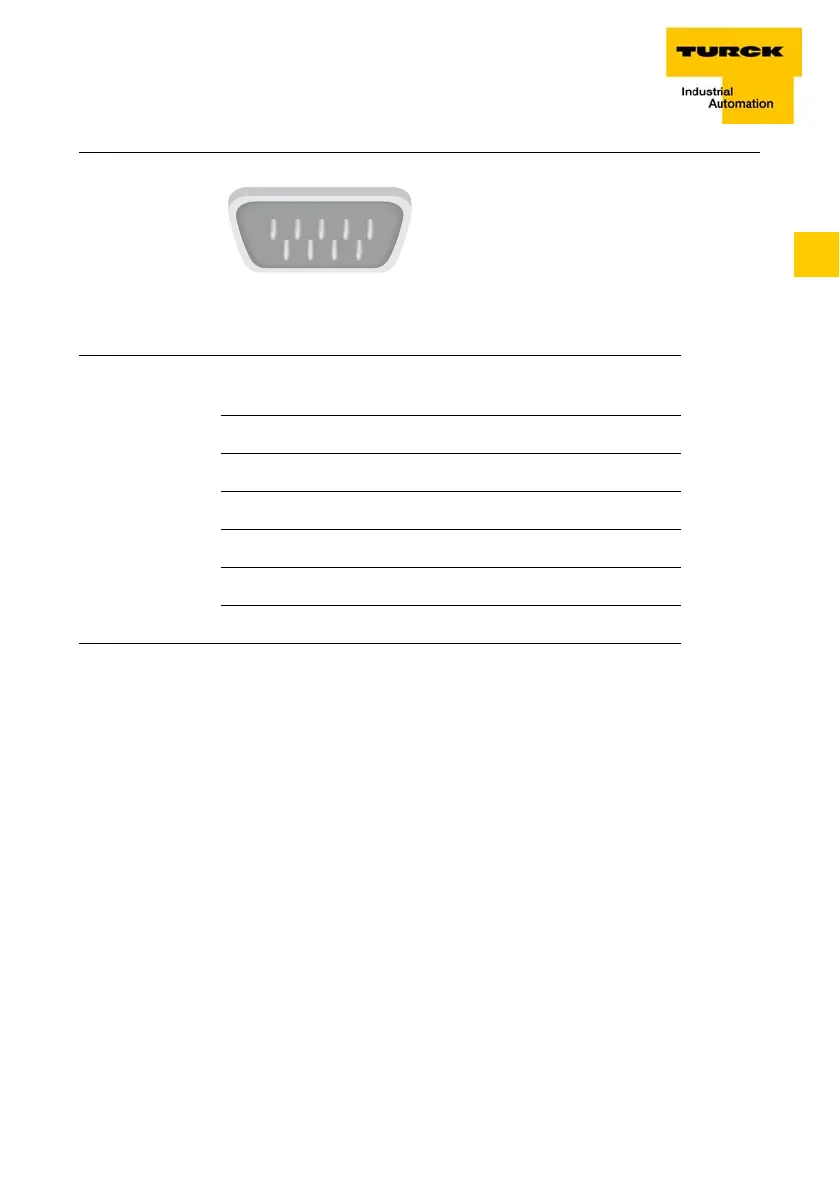

Figure 12:
9-pole SUB-D
female connector
on the cable for
connecting to PC
(top view)
Table 9:
Pin assignments
for PS/2 and SUB-
D interfaces
Pin BL20 gateway
PS/2 socket
SUB-D interface
on PC
Pin
1 +5 V Gw DTR, DSR 4, 6
2GND GND 5
3– – –
4TxD RxD 2
5/CtrlMode RTS 7
6RxD TxD 3
54321
9678
12345
6987
