Tuttnauer 5050 - Autoclave Component Views

Page 21

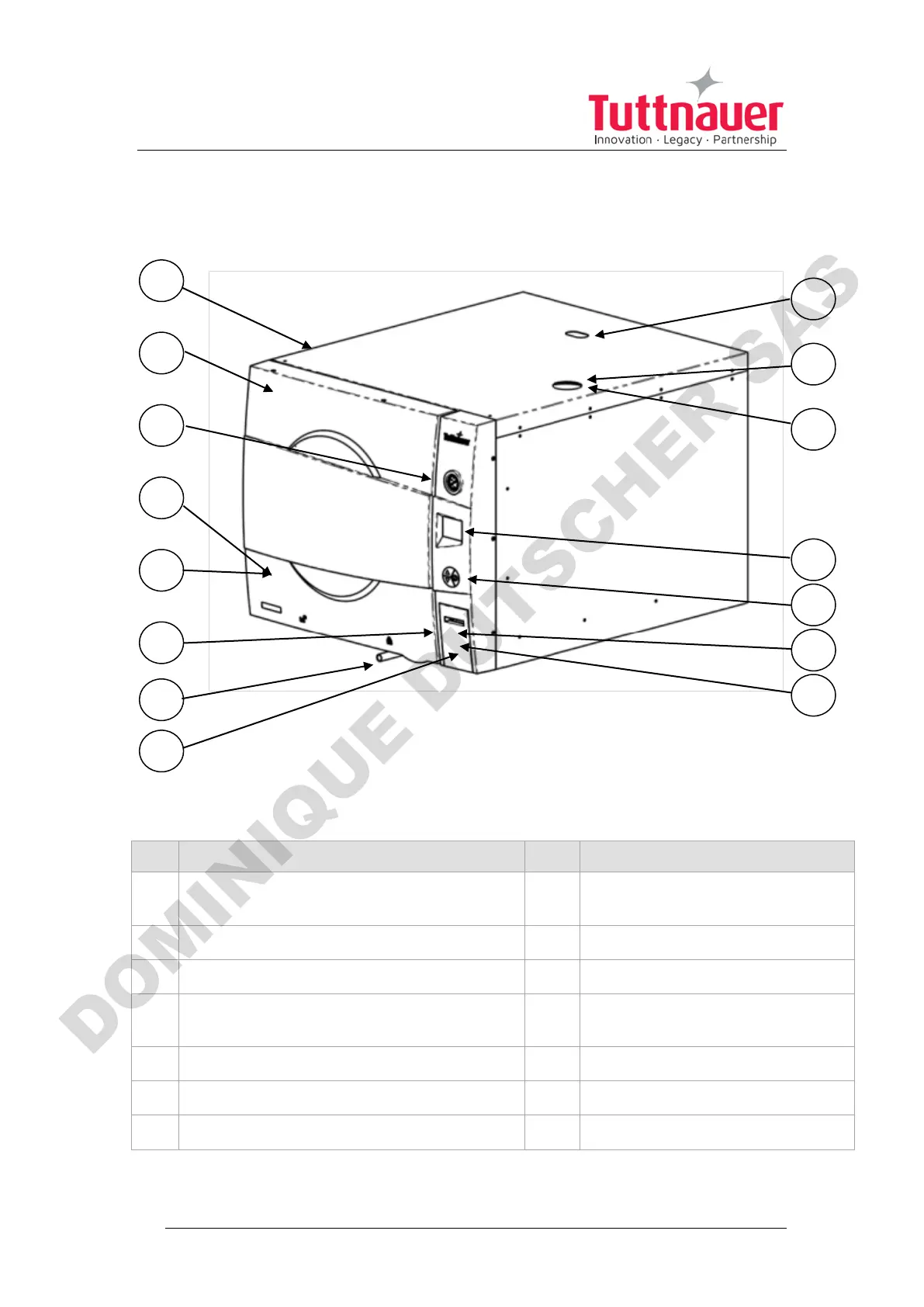

3.15 Front View
No.
Description
No.
Description
1
Autoclave cover
8
Main switch (under the printer
cover)
2
Validation port (under door cover)
9
Safety valve
3
Pressure gauge
10
Water reservoir cover
4
Reservoir water drain valve (under
door cover)
11
Water reservoir – assembly
5
Ring for drain valve (under door cover)
12
Control panel display
6
Printer Cover
13
Control panel keyboard
7
Door Closing Handle (MD models)
14
USB port
5
4
3
2
8
6
1
9
11
10
13
12
15
14
7
