3. Remove water reservoir cover.
4. Operate the safety valve:

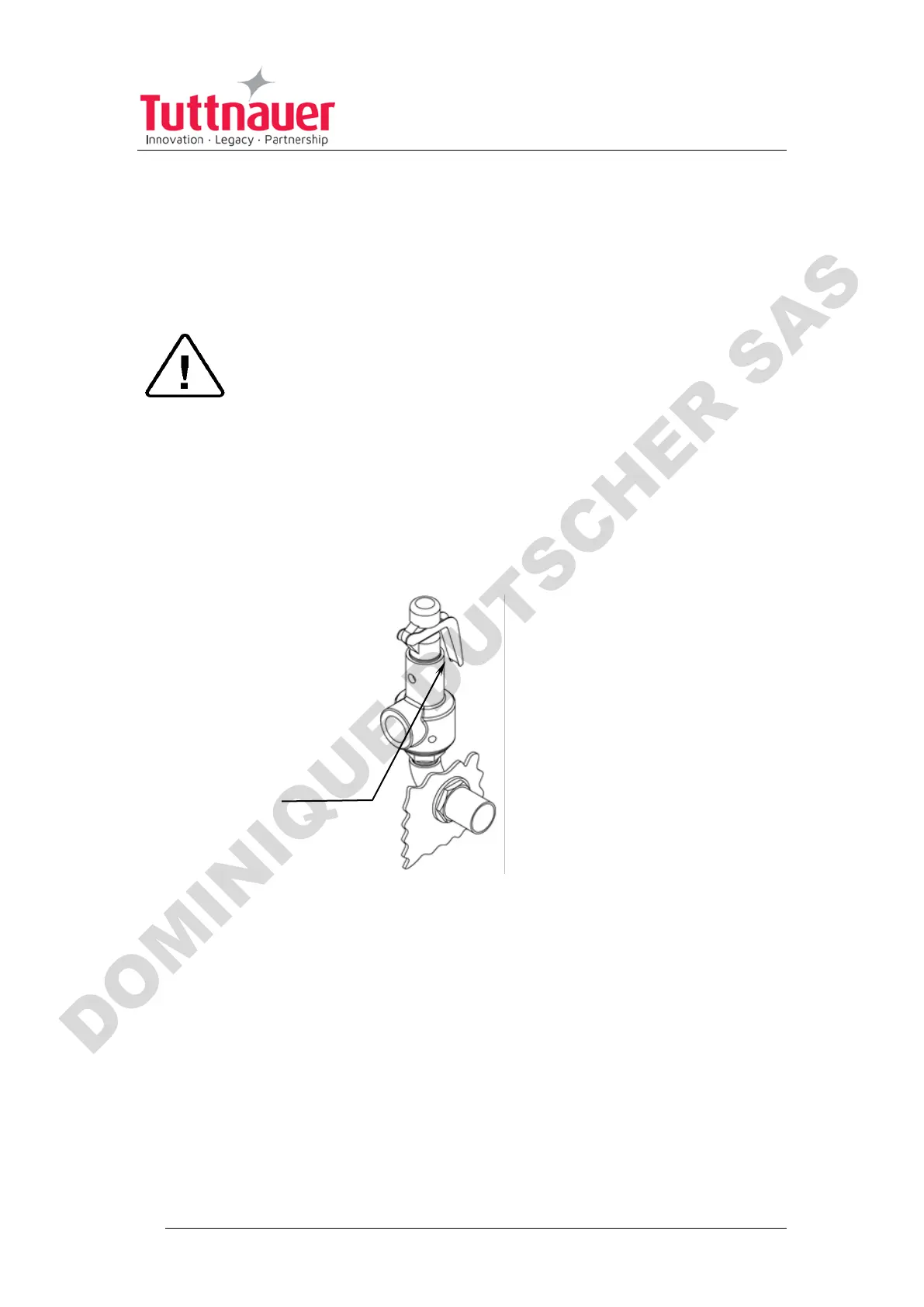

5. Pull the valve’s handle and verify that steam escapes from the valve.
6. Press the STOP key to pause operation, and exhaust steam from
chamber.
7. Wait until pressure goes down to zero, only then can the door be
opened.
Attention:
Use protective gloves in order not to burn your hands with the hot
steam.
8. Press the STOP key to interrupt the operation, and exhaust steam from
the chamber.
9. Wait until the pressure decreases to zero, only then can the door be
opened.
11.4.1.1 Safety opening device (11)
This Safety device is a 3/2 operating pneumatic spring-loaded valve (2
position, 3 ports) that is connected to the safety port of the door. An
angular bracket (12), which is attached to one of the arms, will push the
valve’s piston to a position that at the instant that the arms are locked,
the safety port of the door is blocked.
At the instant that the arms move backward the valve changes its
position and the chamber is vented. After the pressure in the chamber
equalizes the ambient pressure the autoclave’s door can be opened
with no risk for the operator, of steam or hot water burst.
