W A S H S E L E C T I I
Document Number: WS21002 127
Document Title: WSII Operations Manual

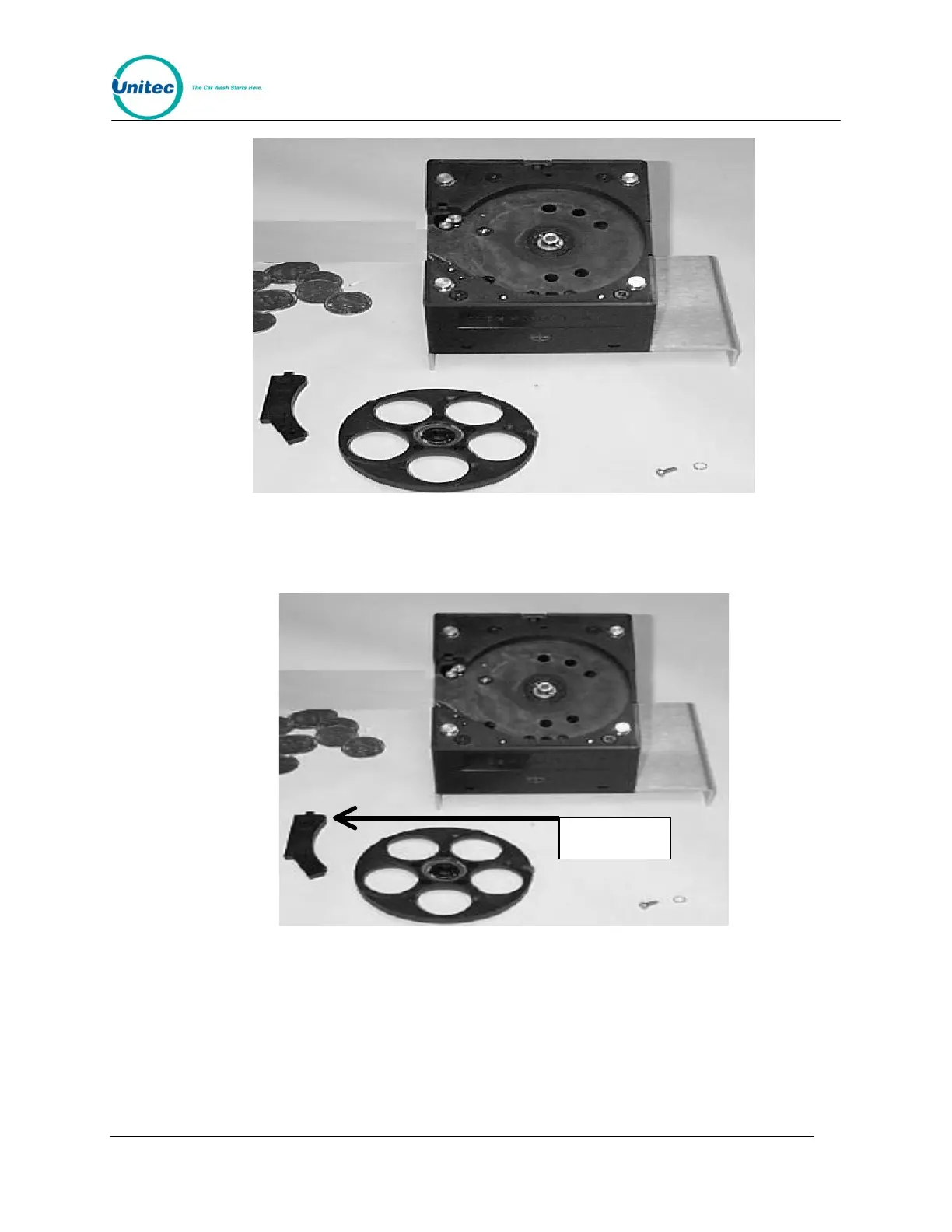

Figure 29. Hopper View - Guide Arm Cover Removed
9. Using a screwdriver, gently pry off the old hopper arm. Be very careful not to
break the pins that hold the arm in place.
Figure 30. Hopper View - Removal of the Coin Guide Arm
10. Place the new hopper arm into the slot exactly as the old one was.
11. Place the new hopper wheel into the plastic hopper exactly as the old one was.
3 . 5 . 5 . 2 Re- a s s e m b l e t h e H o p p e r
1. Once the new guide arm and dispensing-wheel have been replaced, reinstall the
coin guide arm cover. (See Figure 18.)
