2. Slide the black plastic top back onto the hopper-cube assembly. Securely latch it
in place by locking the clasp.
3. Place the hopper-cube back into the metal housing and replace the two screws
you removed previously. Be sure that the coin exit opening of the hopper-cube is
properly aligned with the exit chute of the metal housing. (See Figure 31.)
C o in – H op p e r
C h ute
C o in E x it
O pe n in g

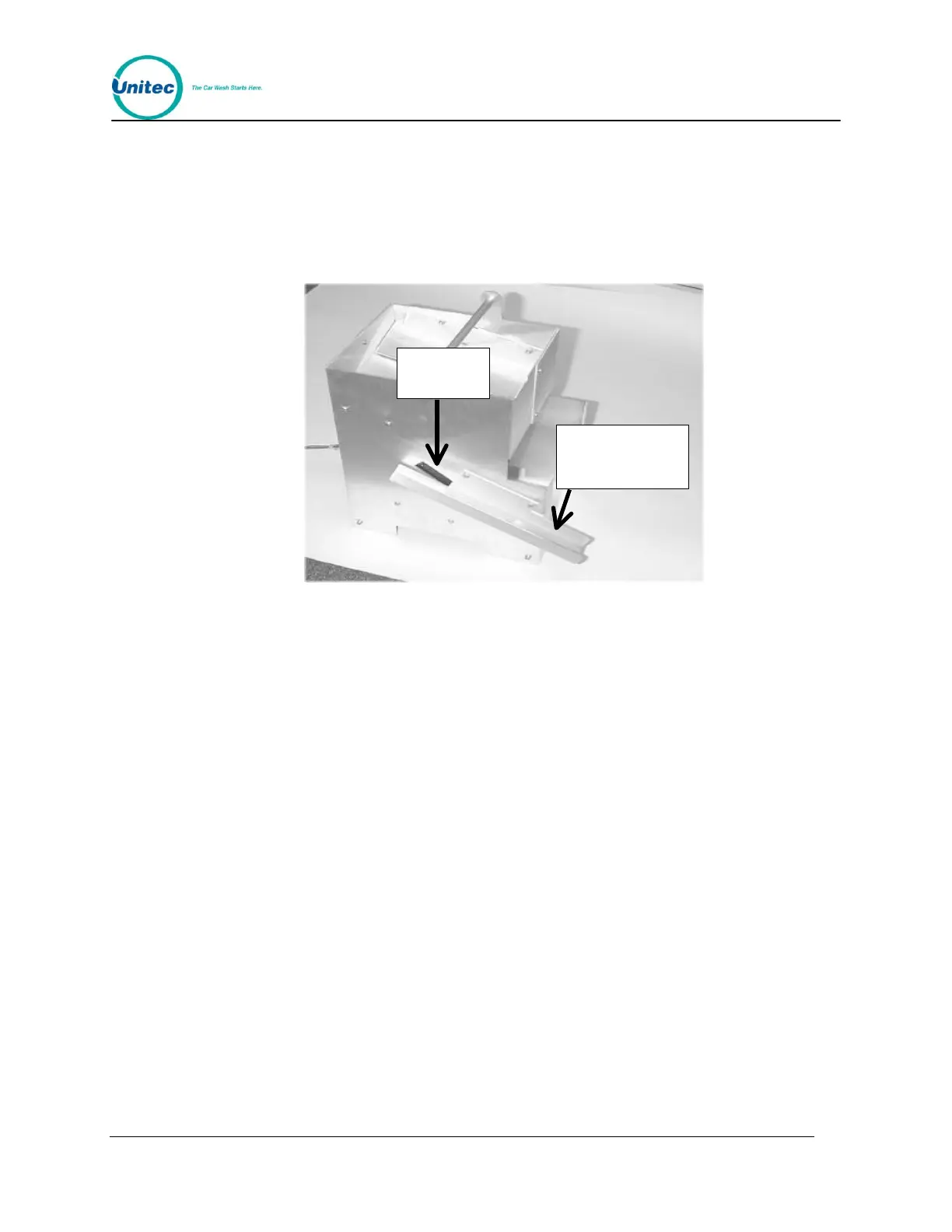

Figure 31. Hopper View - Coin Exit Opening and Chute
3.5.6 Program the IDX to Accept Quarters
Follow the steps below to program the IDX to accept quarters.
1. Remove the front cover by pushing it in and up from the bottom right corner of the
main body. (This is located near the phone number.)
2. Locate the rotary-switch and set it to the position labeled number 6. (If you
choose to dispense $1 coins instead of quarters, this will be position 5.)
3. Press the button located immediately to the left of the switch once.
4. Drop six different quarters through the acceptor and verify that the light (LED)
blinks after the last quarter has been entered.
5. Move the rotary switch back to the position labeled ‘0’.
3.5.7 Programming the IDX to Accept $1 Coins
1. Set the rotary-switch to the position labeled number 5. (This will be position 6 if
you wish to dispense $1 coins.)
2. Press the button located immediately to the left of the switch once.
3. Drop six different dollar coins through the acceptor and verify that the light (LED)
blinks after the last coin has been entered.
4. Move the rotary switch back to the position labeled ‘0’.
