Upright TM12 Service & Parts Manual

Page 2-5
Operation and Specifications 2.3 - Operation
TM12 Work Platform - European
T
RAVEL
W
ITH
P
LATFORM
E
LEVATED
NOTE:The machine will travel at reduced speed when platform is elevated.
1. Check that route is clear of obstacles (persons, obstructions, holes, drop-offs, bumps and
debris), is level, and is capable of supporting the wheel loads.
2. Check clearances above, below and to the sides of platform.
3. Turn the Drive/Lift Switch to DRIVE.
4. Engage the Interlock Switch, and move the Control Handle to FORWARD or REVERSE to
travel in the desired direction. The speed of the machine will vary depending on how far from
center the Control Handle is moved.
5. If the machine is not level the tilt alarm will sound and the machine will not lift or drive. If the
tilt alarm sounds the platform must be lowered and the machine moved to a firm level
surface before attempting to re-elevate the Platform.
L
OWERING
P
LATFORM
1. Turn the Drive/Lift Switch to LIFT.
2. Check around the base of the platform to ensure that no one is in contact with the machine.
Engage the Interlock Switch and pull back on the Control Handle to lower the platform.
E
MERGENCY
L
OWERING

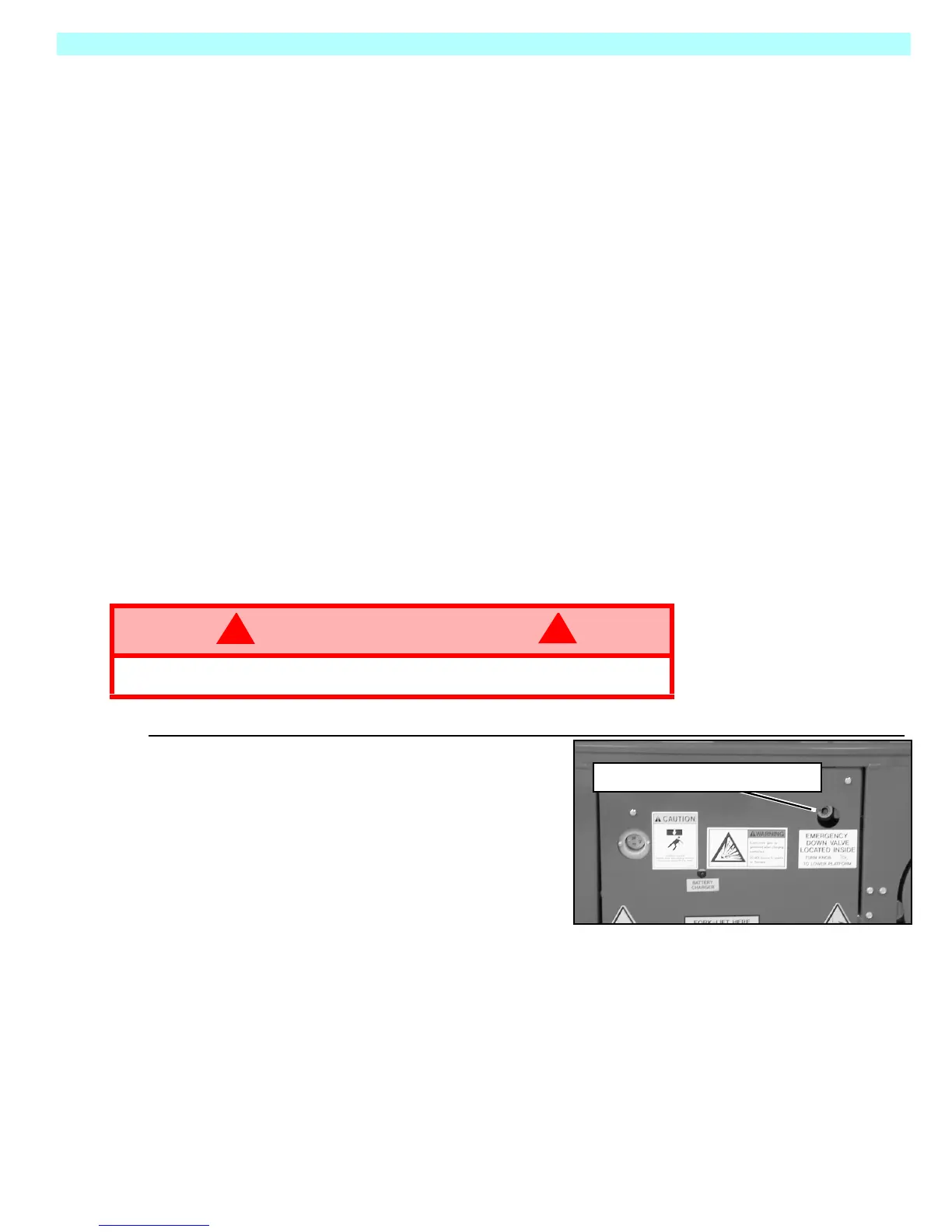

Figure 2-4:
Emergency Lowering Valve
The Emergency Lowering Valve is located
through a hole on the right side of the
machine.
1. Open the Emergency Lowering Valve by
pushing in on the Knob and turning ¼
turn counterclockwise.
2. To close, push in on the knob and turn ¼
turn clockwise until the detent engages.
NOTE:The platform will not elevate if the
Emergency Lowering Valve is open.
WARNING !
!
If the platform should fail to lower, NEVER climb down the elevating assembly.
Stay clear of the elevating assembly while operating the Emergency Lowering Valve.
Emergency Lowering Valve
