Upright TM12 - Controls; Platform Controls

Page 3-27
Maintenance 3.15 - Controls
TM12 Work Platform - European
3.15 C
ONTROLS
P
LATFORM
C
ONTROLS
The Proportional Controller can be disassembled to replace defective switches. See Section 6
for replacement part numbers.

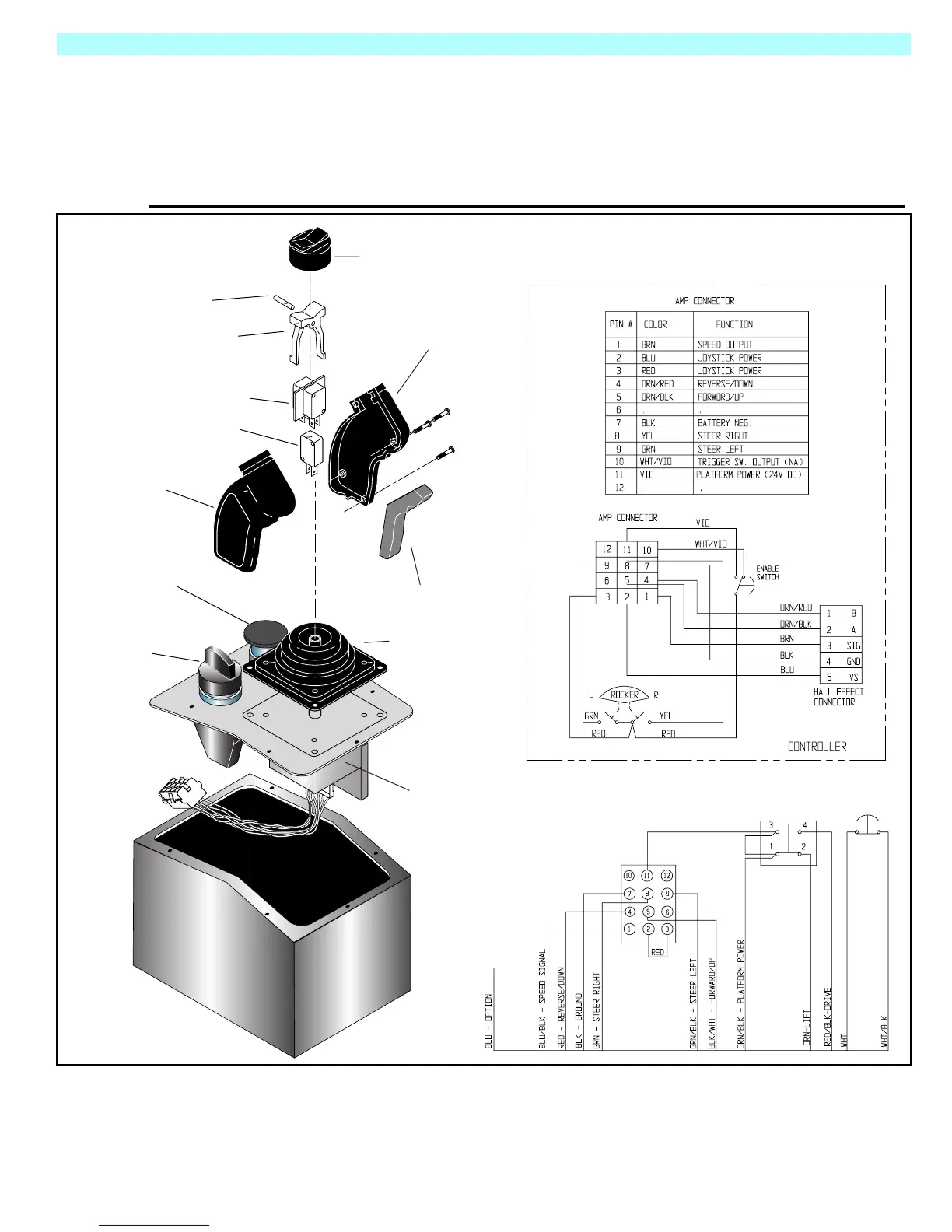

Figure 3-24:
Upper Controls
.
12 Pin
Connector
Lift/Drive
Selector
Switch
Lift/Drive
Selector
Switch
Emergency
Stop
Switch
Emergency
Stop
Switch
Lever, Interlock
Boot, Steering Rocker
Rocker Pin
Rocker, Steering
Right Handle Half
Switch, Steering
Switch, Interlock
Left Handle Half
Boot, Handle
Hall Effect Device
