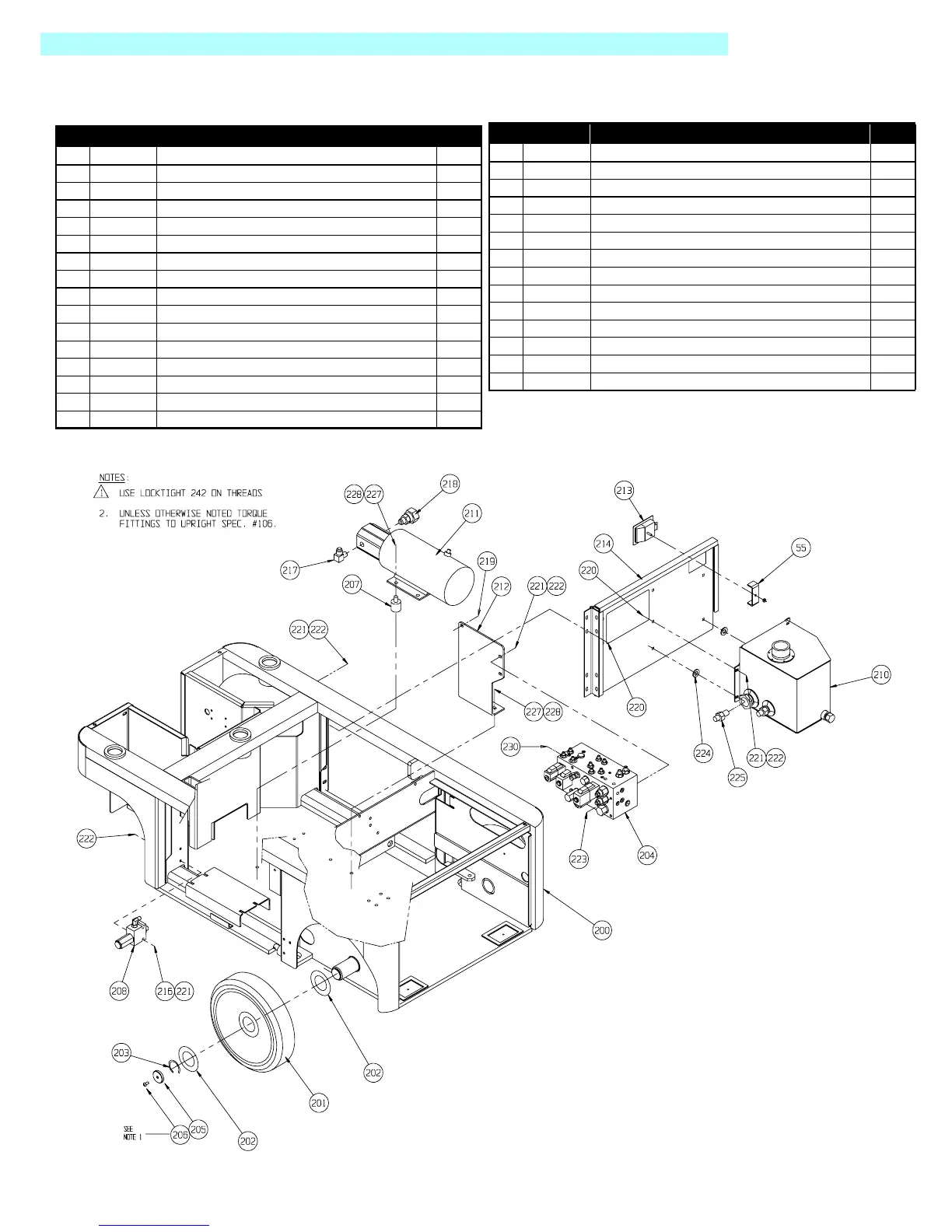

Illustrated Parts Breakdown - Chassis Assembly, 3 of 4
TM12 Work Platform - European
Chassis Assembly, 3 of 4
107002-000
ITEM PART NO. DESCRIPTION QTY
200 107133-000 CHASSIS WELDMENT REF
201 065392-020 WHEEL IDLER 2
202 011786-014 BUSHING MACHINE 1 3/4 I.D. 4
203 013315-009 RETAINING RING 1 1/2 2
204 101120-021 CONTROL VALVE ASSEMBLY 1
205 065513-000 END CAP 2
206 011823-006 SCREW 3/8-16 BUTT HD X 3/4 2
207 066046-007 MOUNT, VIBRATION 4
208 107006-000 DRIVE RELIEF VALVE ASSY 1
210 107007-000 HYD RESERVOIR ASSY 1
211 101230-000 POWER UNIT 1
- 101230-010 PUMP REF
- 015797-011 MOTOR, ELECTRIC REF
212 107152-000 BRACKET, CONTROL VALVE MOUNT 1
213 065395-000 LATCH 1
214 107150-000 PANEL WELDMENT RH 1
216 011252-016 SCREW HHC 1/4-20 X 2 2
217 011934-004 FITTING 90° 6MBH-6MJ 1
218 015959-004 FITTING 8MBH-12FJX 1
219 013919-010 CLAMP HOSE 1
220 011829-006 CARRIAGE BOLT 1/4-20 x 3/4 7
221 011240-004 WASHER FLAT STD 1/4 12
222 011248-004 NUT HEX 1/4-20 UNC 12
223 011252-040 SCREW HHC 1/4-20 X 5 3
224 107079-000 WASHER, RUBBER 2
225 011939-021 FITTING 12MP-12MJ 1
227 011240-005 WASHER FLAT 5/16 6
228 011248-005 NUT HEX 5/16-18 6
229 020032-003 FITTING TEE #6 - NOT SHOWN 2
230 020733-001 FITTING TEE #4 1
