Upright TM12 - 2.4 - Transporting Work Platform; Figure 2-6: Transporting the Work Platform

Page 2-7
Operation and Specifications 2.4 - Transporting Work Platform
TM12 Work Platform - European
2.4 T
RANSPORTING
W
ORK
P
LATFORM

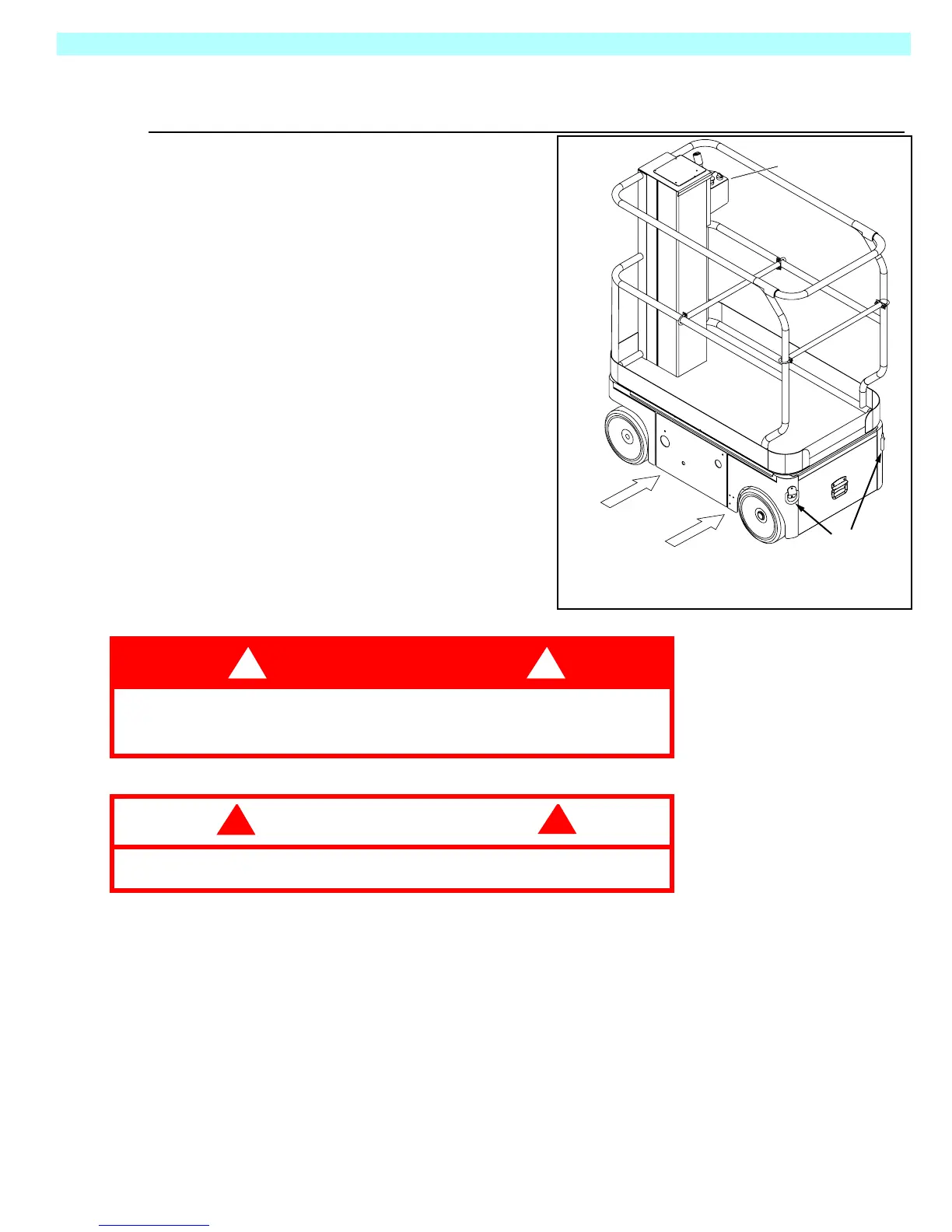

Figure 2-6:
Transporting the Work Platform
B
Y
F
ORKLIFT
Forklift from the side by lifting under the
chassis modules.
B
Y
C
RANE
Secure straps to chassis lifting/tie down
points only.
B
Y
T
RUCK
1. Maneuver the work platform into trans-
port position and chock wheels.
2. Secure the work platform to the trans-
port vehicle with chains or straps of
adequate load capacity to the chassis
lifting/tie down points.
3. Open the Emergency Lowering Valve.
Theplatformmustbeinthefullylow-
ered position for transport.
Forklift: Side
Lift/Tie Down Points
Controller Assembly
DANGER
! !
Forklifting is for transporting only.
See specifications for weight of work platform and be certain that forklift is of
adequate capacity to lift the work platform.
CAUTION
!
!
Overtightening of chains or straps attached to tie down lugs may result in
damage to work platform.
