Page 3-6
Maintenance 3.7 - Supporting Elevating Assembly
TM12 Work Platform - European
3.7 S
UPPORTING
E
LEVATING
A
SSEMBLY

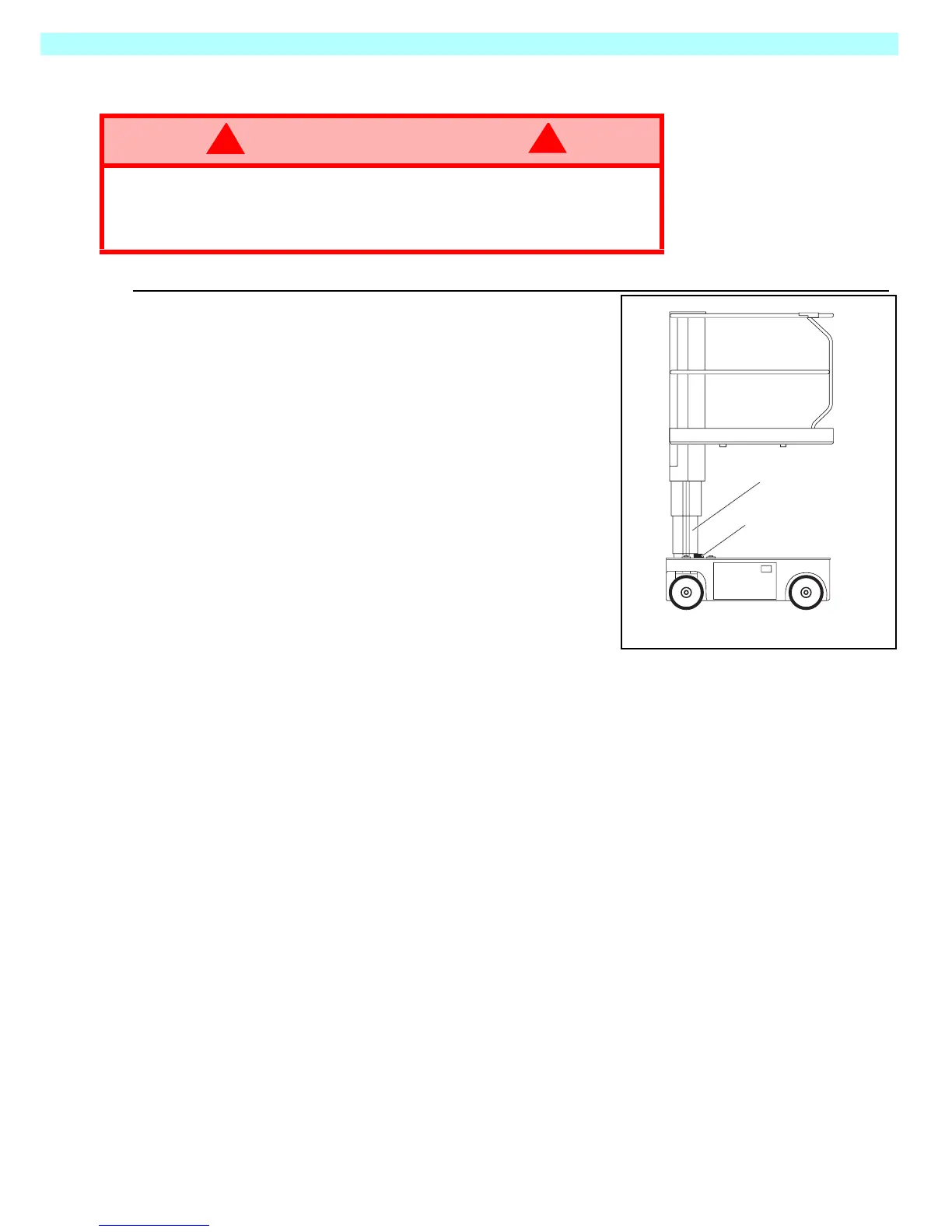

Figure 3-6:
Supporting the Elevating Assembly
1. Park the Work Platform on firm level ground.
2. Verify Platform Emergency Stop Switch is ON.
3. Turn Chassis Key Switch to CHASSIS.
4. Position Chassis Lift/Lower Switch to UP and ele-
vate Platform approximately 1.2m (4 feet).
5. Place a wood block, 5cm x 10cm x 46cm (2 in. x
4 in. x 18 in.) long between the #2Mastand
Chassis just behind the Mast Assembly.
6. Push Chassis Lift Switch to DOWN position and
gradually lower Platform until the #2Mastissup-
ported by the block.
R
EMOVAL
1. Push Chassis Lift Switch to UP position and grad-
ually raise Platform until wood block can be
removed.
2. Remove block.
3. Push Chassis Lift Switch to DOWN position and
completely lower Platform
WARNING
!
!
Never perform service on the work platform in the elevating assembly area
while platform is elevated without first blocking the elevating assembly.
DO NOT stand in elevating assembly area while placing or removing the
mast support block.
Number 2 Mast
Wood Block
To Next Page
