Page 6-9

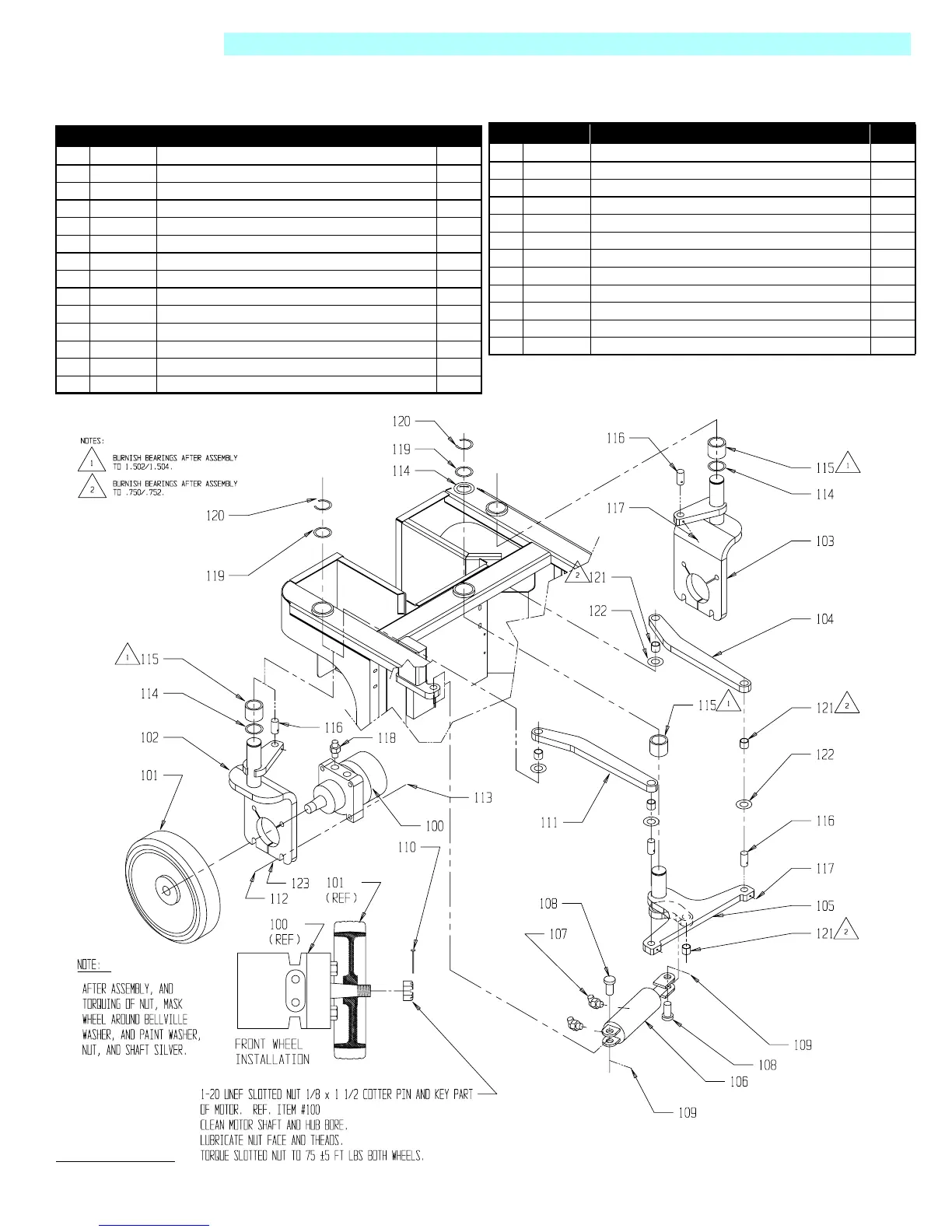

Illustrated Parts Breakdown - Chassis Assembly, 2 of 4
TM12 Work Platform - European
Chassis Assembly, 2 of 4
107002-000
Drawing # 2 of 4
ITEM PART NO. DESCRIPTION QTY
100 101125-001 MOTOR HYDRAULIC 2
101125-010 Seal Kit
101 065393-002 WHEEL, DRIVE 2
102 107186-000 WHEEL YOKE, L.H. 1
103 107185-000 WHEEL YOKE, R.H. 1
104 065517-000 STEER LINK RH 1
105 065445-000 BELL CRANK WELDMT 1
106 065397-002 CYLINDER, STEERING 1
065397-011 Seal Kit
107 011934-001 FITTING, 90° 4MBH-4MJ 2
108 011848-041 PIN 3/4 PIVOT 2
109 011757-010 COTTER PIN, RUE RING 3/4” 2
110 011753-012 PIN COTTER 1/8 x 1 1/2 2
111 065518-000 STEER LINK LH 1
112 011256-026 SCREW HHC GR5 1/2-13 UNC x 3 1/4 8
113 011248-008 NUT HEX 1/2-13 UNC 8
114 010092-011 WASHER THRUST 1 1/2 3
115 027931-068 BEARING 1 1/2 3
116 065534-000 STEER PIN 4
117 011736-012 ROLL PIN 3/16 DIA. x 1 1/2 4
118 011941-005 FITTING STRAIGHT 6-6S 4
119 011786-007 BUSHING MACHINE 1 1/2 I.D. 3
120 013315-009 RETAINING RING 3
121 027931-022 BEARING 3/4 I.D. 5
122 010092-005 WASHER THRUST 3/4 I.D. 4
123 011240-008 WASHER FLAT STD 1/2 8
ITEM PART NO. DESCRIPTION QTY
To Next Page
