Page 3-11
Maintenance 3.10 - Hydraulics
TM12 Work Platform - European
H
YDRAULIC
P
UMP
The Hydraulic Pump is located in the Power Module, and is mounted on the rear of the motor.
R
EMOVAL
NOTE: If the hydraulic tank has not been drained, suitable means for plugging the hoses should be
provided to prevent excessive fluid loss.
1. Mark, disconnect and plug the hose assemblies.
2. Loosen the capscrews and remove the pump assembly from the motor.
I
NSTALLATION

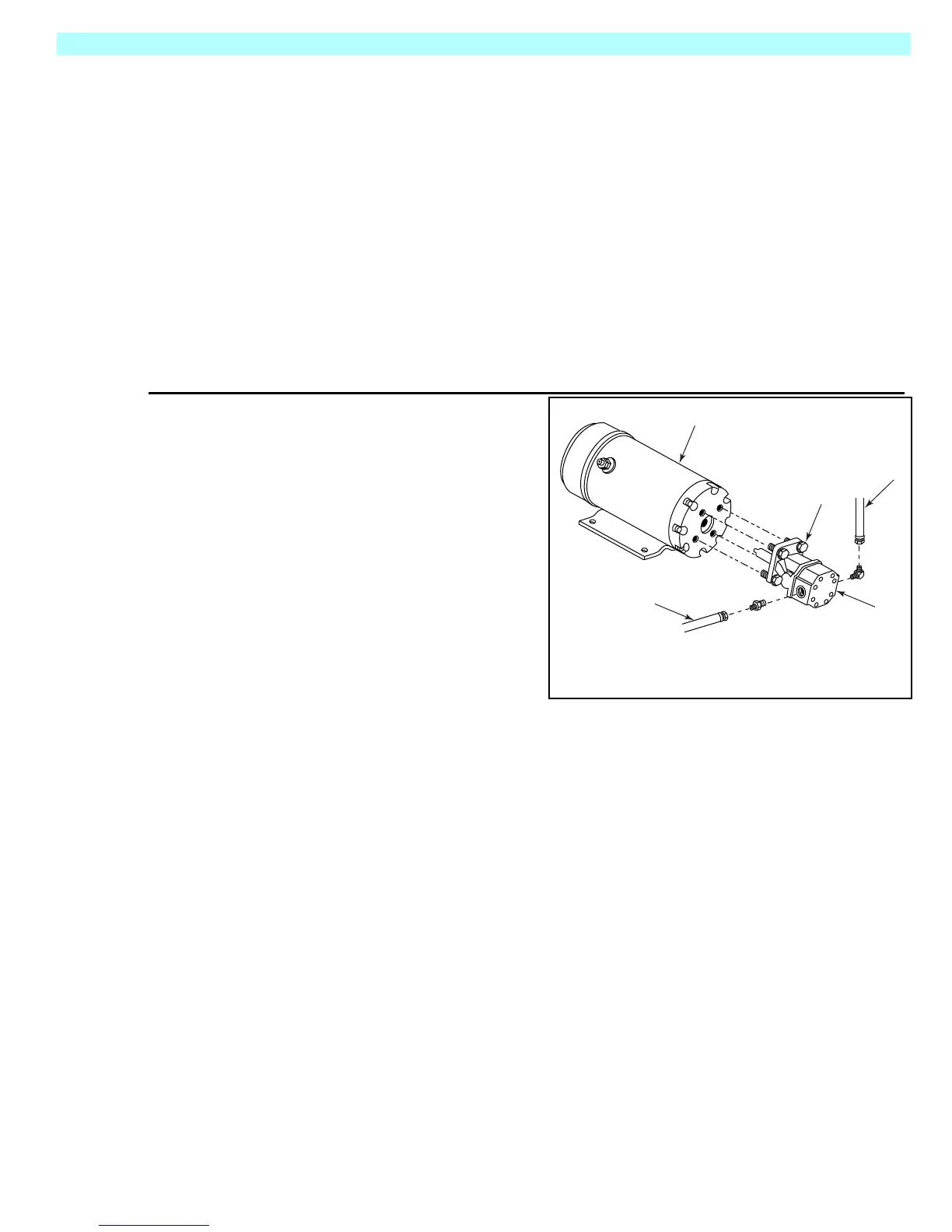

Figure 3-11:
Hydraulic Pump
1. Lubricate the pump shaft with gen-
eral purpose grease and attach the
pump to the motor with the cap-
screws.
2. Using a crisscross pattern, torque
each capscrew a little at a time until
all capscrews are torqued to 27 Nm
(20 Ft/Lbs).
3. Unplug and reconnect the hydraulic
hoses.
4. Check the oil level in the hydraulic
tank before operating the work plat-
form.
1
2
3
5
4
1. Inlet Hose
2. Outlet Hose
3. Capscrew
4. Pump Assembly
5. Electric Motor
