Maintenance 3.10 - Hydraulics
TM12 Work Platform - European
C
YLINDER VALVE
A
SSEMBLY

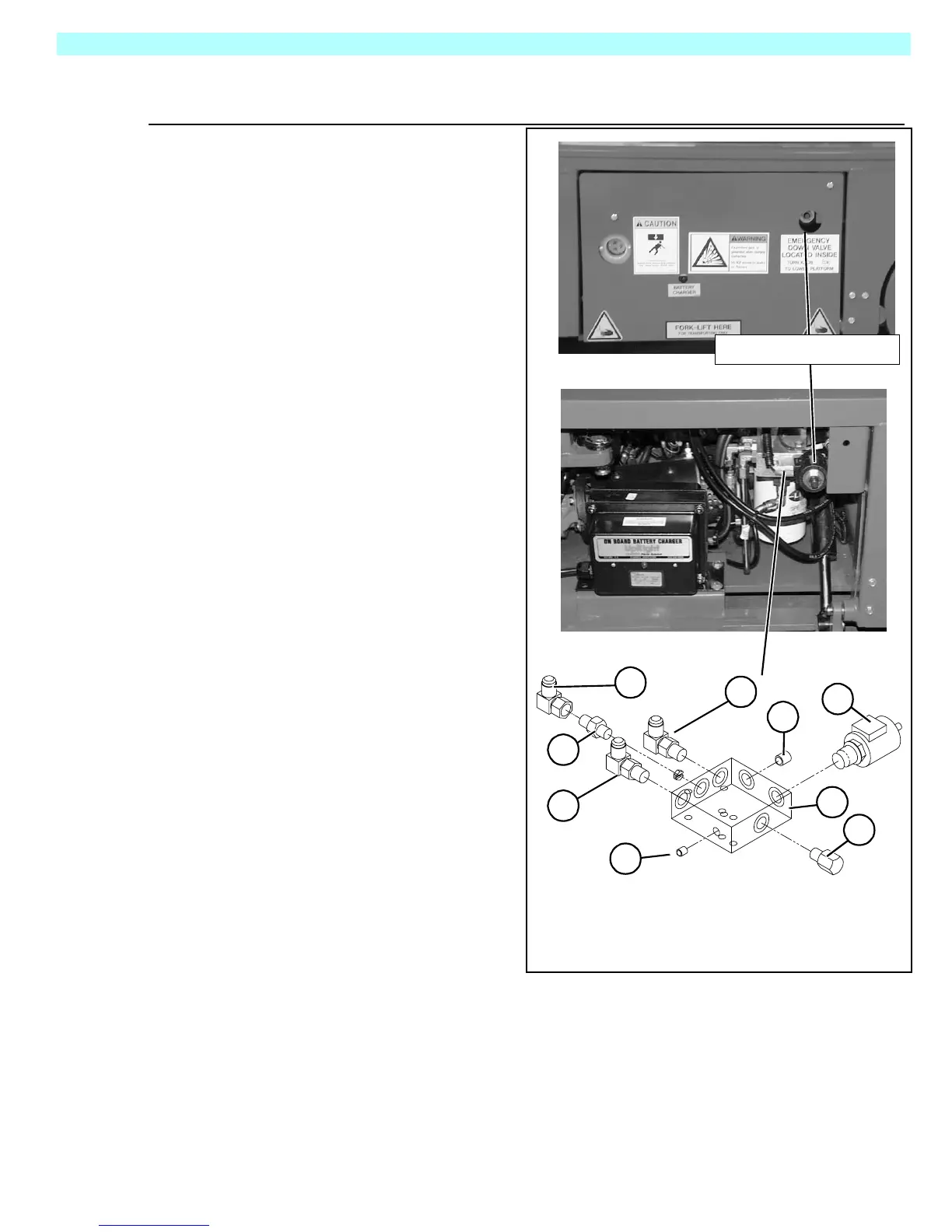

Figure 3-12:
Cylinder Valve
EMERGENCY DOWN VALVE
The Emergency Down Valve is acces-
sible through a hole in the panel on the
left side of the machine. The valve is a
24 Volt DC solenoid mounted on the
Cylinder Valve Block.
C
YLINDER
V
ALVE BLOCK
The Cylinder Valve Block is located
behind the panel on the left side of the
machine, toward the rear.
6
7
8
2
5
4
3
1
1. Valve Block
2. Flow Control Valve (1GPM)
3. Solenoid Valve (24 VDC)
4. Plug 1/4 - 18 NPTF
5. Fitting, 90 6MB - 6MJ
6. Fitting, 90 6JX-6MJ
7. Fitting, Straight 6MB - 6MJ
8. Fitting, 90 6MB - 4MJ
Emergency Down Valve
Left Side, Panel On
Left Side, Panel Off
9
