Page 6-15

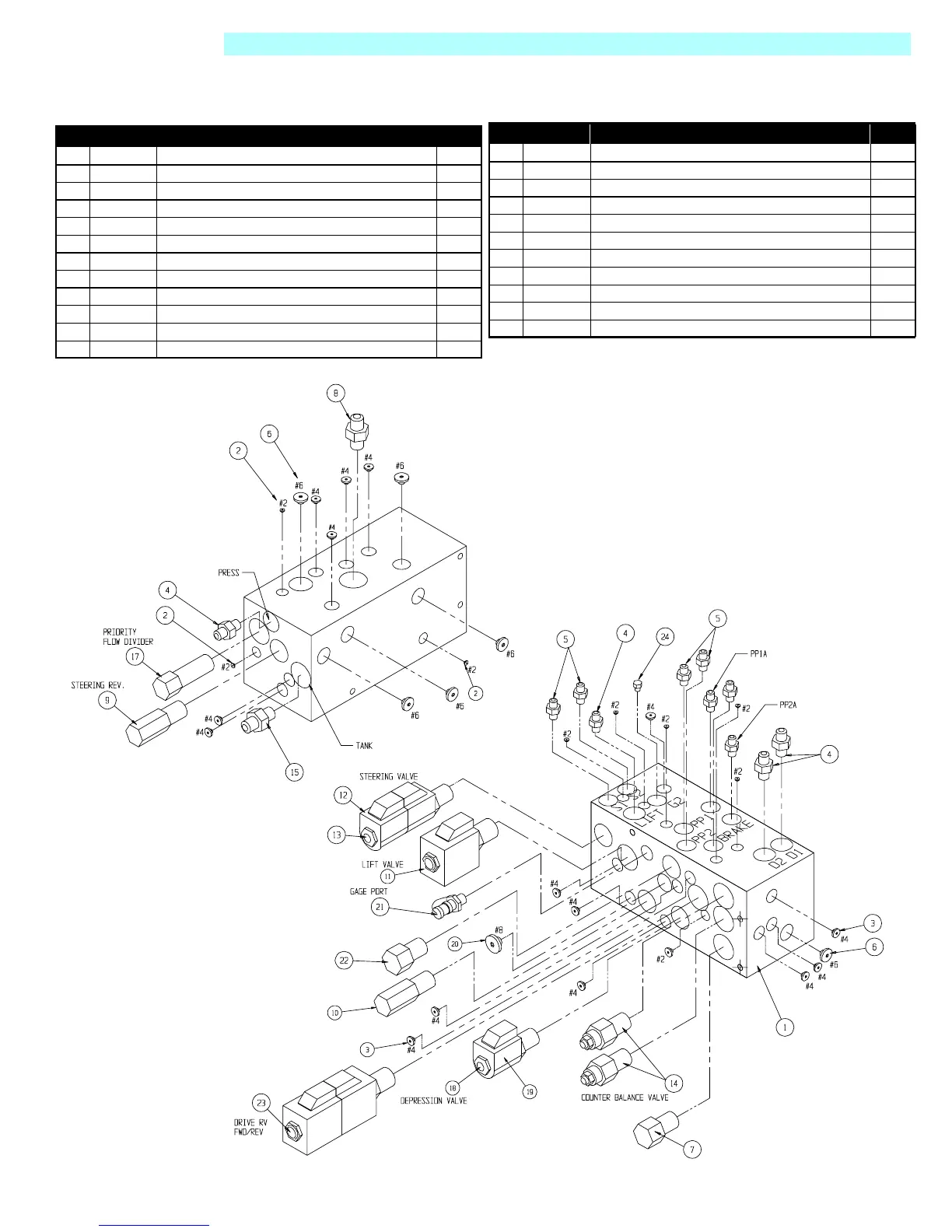

Illustrated Parts Breakdown - Control Valve Assembly
TM12 Work Platform - European
Control Valve Assembly
101120-021
ITEM PART NO. DESCRIPTION QTY
1 100020-040 CONTROL VALVE BLOCK 1
2 012004-002 FITTING #2 PLUG 9
3 012004-004 FITTING #4 PLUG 15
4 011941-005 FITTING STRAIGHT 6MB - 6MJ 3
5 011941-001 FITTING STR 4MBH - 4MJ 7
6 012004-006 FITTING PLUG #6 6
7 063955-008 PLUG CAVITY #8 2 WAY 1
8 011941-009 FITTING 8MB-6MJX 1
9 060390-013 RELIEF VALVE, STEERING (1500 PSI) 1
10 060390-025 RELIEF VALVE, MAIN (3000 PSI) 1
11 063923-006 2 POS - 4 WAY SOLENOID W/ COIL 1
12 101120-033 COIL 2
13 064845-000 3 POS - 4 WAY SOLENOID W/ COILS 1
14 101120-035 COUNTERBALANCE VALVE 2
15 011941-008 FITTING STR 8MB-4MJ 1
17 064843-000 FLOW DIVIDER VALVE (1.0 GPM) 1
18 063973-001 2 POS POPPET VALVE W/ COIL 1
19 101120-033 COIL 1
20 012004-008 FITTING #8 PLUG 1
21 063965-001 FITTING GAGE 1
22 064841-000 CHECK VALVE 1
23 063923-021 3 POS - 4 WAY SOLENOID W/ COILS 1
24 020021-004 FITTING, PLUG #4 1
ITEM PART NO. DESCRIPTION QTY
To Next Page
