Operation and Specifications 2.5 - Maintenance
TM12 Work Platform - European
B
ATTERY
M
AINTENANCE

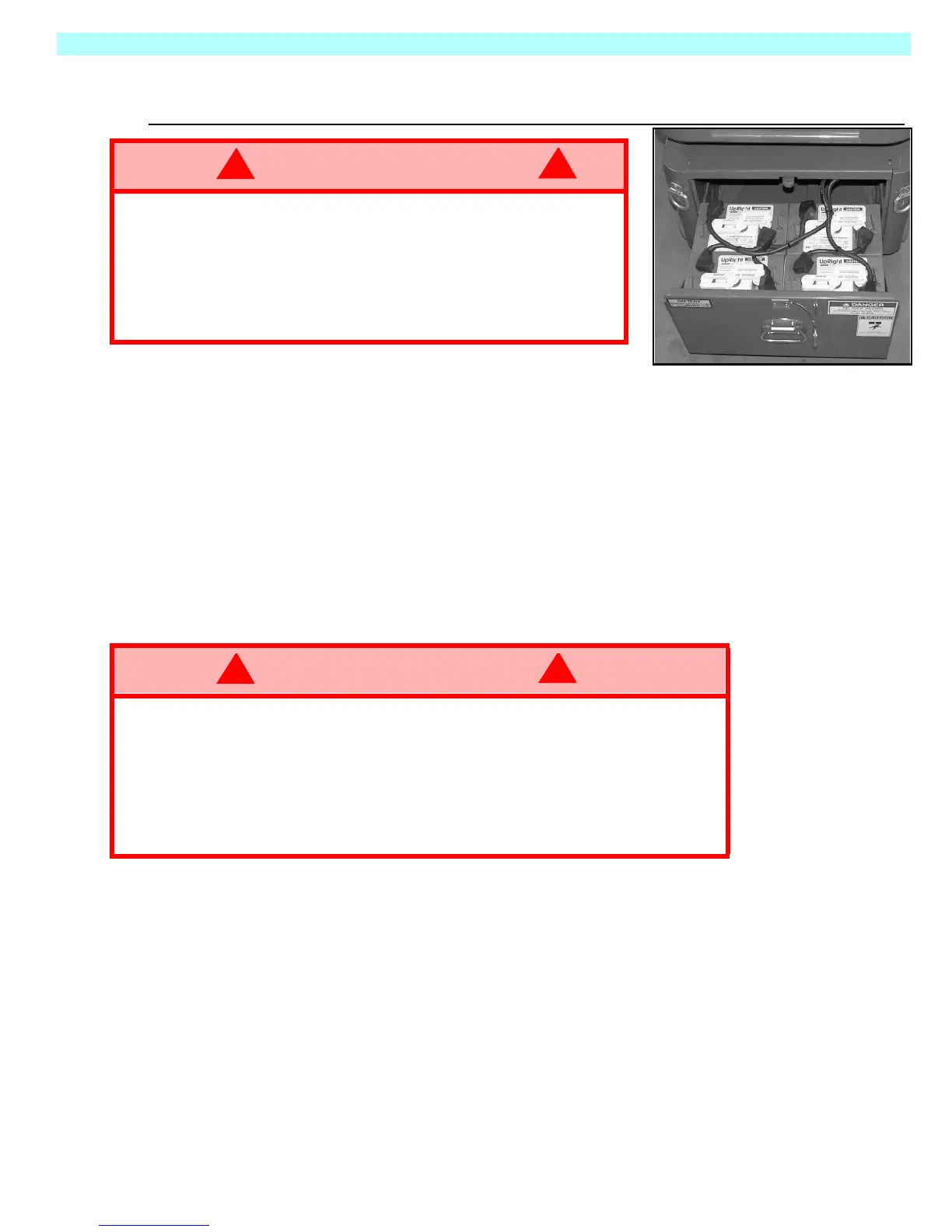

Figure 2-8:
Access to Batteries
Check the battery fluid level daily, especially if the work
platform is being used in a warm, dry climate.
If electrolyte level is lower than 10 mm (3/8 in.) above the plates, add distilled water ONLY. Do not
use tap water with high mineral content, as it will shorten battery life.
The battery and cables should be inspected regularly for signs of cracks in the case, electrolyte
leakage and corrosion of the terminals. Inspect cables for worn spots or breaks in the insulation
and for broken cable terminals. Keep terminals and tops of batteries clean.
B
ATTERY
C
HARGING
Charge the batteries at end of each work shift or sooner if batteries have been discharged.
NOTE:If voltage falls below 17 volts (for a 24 volt system), the charger will not recharge the batteries. If
this extreme voltage drop occurs, disconnect and recharge each battery separately using a 6 volt charger
to bring the voltage up to at least 4½ volts.
1. Check battery fluid level. If electrolyte level is lower than 10 mm (3/8 in.) above plates add
distilled water only.
2. Verify charger voltage switch is set to the correct voltage.
3. Connect extension cord (1,5 mm
²
[12 gauge] minimum conductor diameter; 15 m (50 ft.)
maximum length) to charger plug located through cutout at the left side of the chassis.
4. Connect an extension cord to properly grounded outlet of proper voltage and frequency.
5. The battery charger turns on automatically after a short delay, the LED charge indicator will
illuminate.
6. The battery charger turns off automatically when batteries are fully charged, the LED charge
indicator will blink indicating that the charger is in a continuing maintenance mode. DO NOT
leave the charger plugged in for more than 48 hours, as permanent damage to the batteries
may occur.
NOTE:The battery charger circuit must be used with a GFI (Ground Fault Circuit Interrupt) outlet.
NOTE:DO NOT operate the machine while charger is plugged in.
WARNING
!
!
Hazard of explosive gas mixture. Keep sparks, flame and smoking
material away from batteries.
Always wear safety glasses when working near batteries.
Battery fluid is highly corrosive. Thoroughly rinse away any spilled
fluid with clean water.
Always replace batteries with UpRight batteries or manufacturer
approved replacements weighing 28 kg (62 lbs.) each.
WARNING
!
!
Charge batteries only in a well ventilated area.
Do not charge the batteries if the work platform is near a source of sparks or flames.
Permanent damage to batteries will result if the batteries are not recharged
immediately after discharging.
Never leave the charger operating for more than two days.
Never disconnect the cables from the batteries when the charger is operating.
Keep the battery charger dry.
