Upright TM12 Service & Parts Manual

Page 6-12

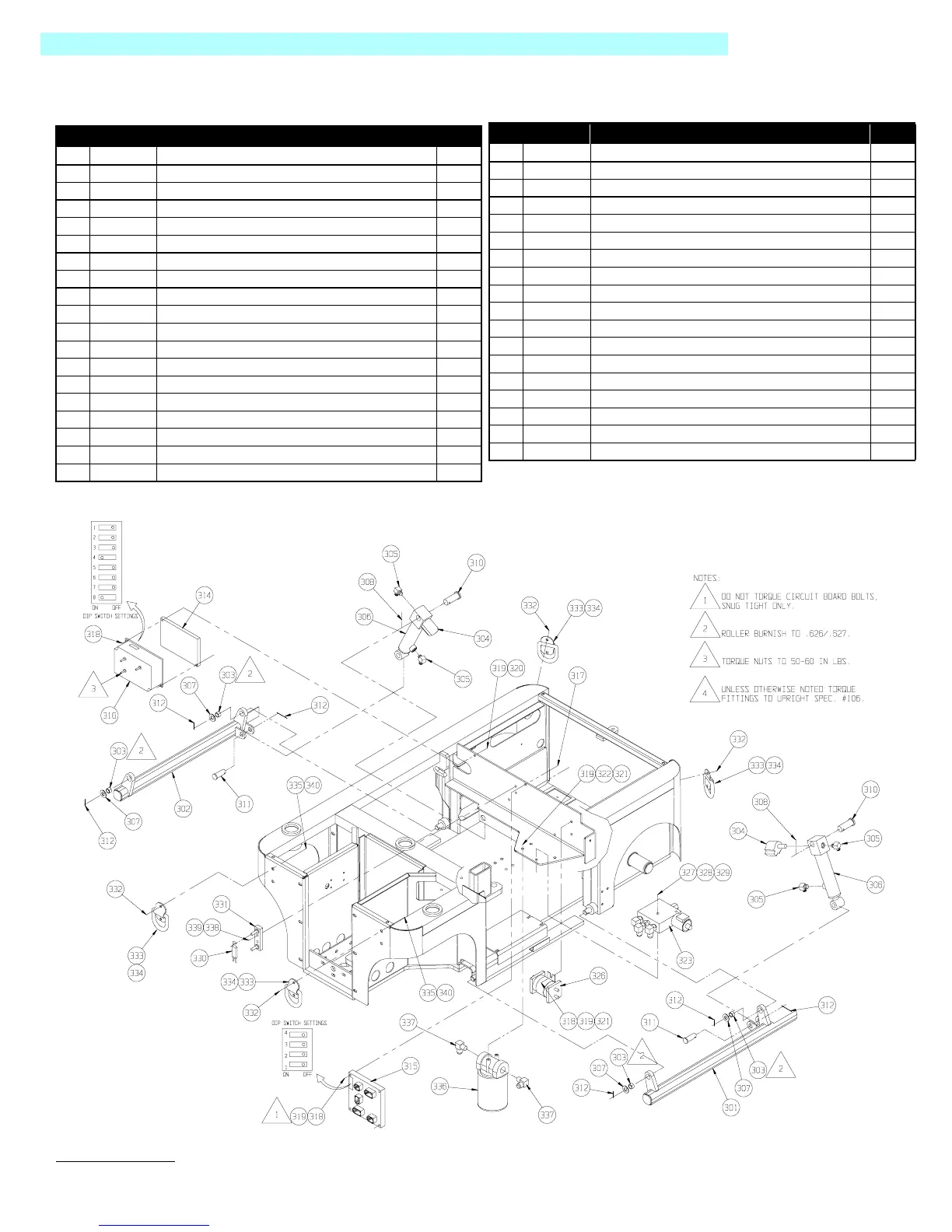

Illustrated Parts Breakdown - Chassis Assembly, 4 of 4
TM12 Work Platform - European
Chassis Assembly, 4 of 4
107002-000
Drawing # 4 of 4
ITEM PART NO. DESCRIPTION QTY
301 107179-000 GUARD WELDMENT-L.H. 1
302 107180-000 GUARD WELDMENT-R.H. 1
303 027931-063 BRONZE BUSHING #AA 710-27 4
304 063973-001 VALVE N.C. 2
305 011934-001 FITTING 4MBH-4MJ 4
306 065970-001 CYLINDER DEPRESSION 2
065970-011 Seal Kit
307 014996-010 WASHER 5/8 SAE 4
308 011757-005 1/2 RUE RING 2
310 011848-019 CLEVIS PIN 3/4 X 2 1/2 2
311 011848-009 CLEVIS PIN 5/8 X2 2
312 011754-012 COTTER PIN 5/32 X 1 1/2 6
314 065984-000 HEATSINK PLATE 1
315 065709-001 CIRCUIT BOARD 1
316 065708-001 MOTOR CONTROL 1
317 011252-012 BOLT 1/4-20 UNC X 1 1/2 2
318 011248-004 LOCKNUT 1/4-20 HEX 6
319 011240-004 WASHER 1/4 DIA STD FLAT 8
320 011252-010 SCREW HHC 1/4-20 X 1 1/4 2
321 011252-006 SCREW HHC 1/4-20 X 3/4 4
322 011238-004 WASHER SPLIT LOCK 1/4 2
323 107005-000 CYLINDER VALVE ASSY 1
326 010122-001 RELAY 1
327 011248-005 NUT HEX 5/16-18 2
328 011240-005 WASHER 5/16 FLAT 4
329 011253-018 SCREW HHC 5/16-18 X 2 1/4 2
330 010148-001 FUSE 1
331 010149-000 FUSE BLOCK 1
332 011254-008 SCREW HHC 3/8-16 X 1 8
333 107080-000 BRACKET - D-RING 4
334 107080-001 D-RING 4
335 011248-006 NUT HEX ESNA 3/8-16 8
336 005154-001 FILTER 1
337 011940-034 FITTING 90° 12MP-6MJ 2
338 011709-008 SCREW #10-24 X 1 2
339 011248-003 NUT HEX #10-24 2
340 011240-006 WASHER 3/8 FLAT 8
ITEM PART NO. DESCRIPTION QTY
