Maintenance 3.3 - Special Tools
TM12 Work Platform - European
3.3 S
PECIAL
T
OOLS
The following is a list of special tools which may be required to perform certain maintenance pro-
cedures on the work platform.
• (0-69 bar) Hydraulic Pressure Gauge with Adapter Fittings
• (0-207 bar) Hydraulic Pressure Gauge with Adapter Fittings
• (0-414 bar) Hydraulic Pressure Gauge with Adapter Fittings
• Small UpRight Connector Field Kit
(UpRight P/N 030899-000)
• Large UpRight Connector Field Kit
(UpRight P/N 030898-000)
•Inclinometer
3.4 U
P
R
IGHT
C
ONNECTORS
UpRight connectors are designed so that connector parts, contacts or electrical cables may be
replaced without replacing the entire connector.

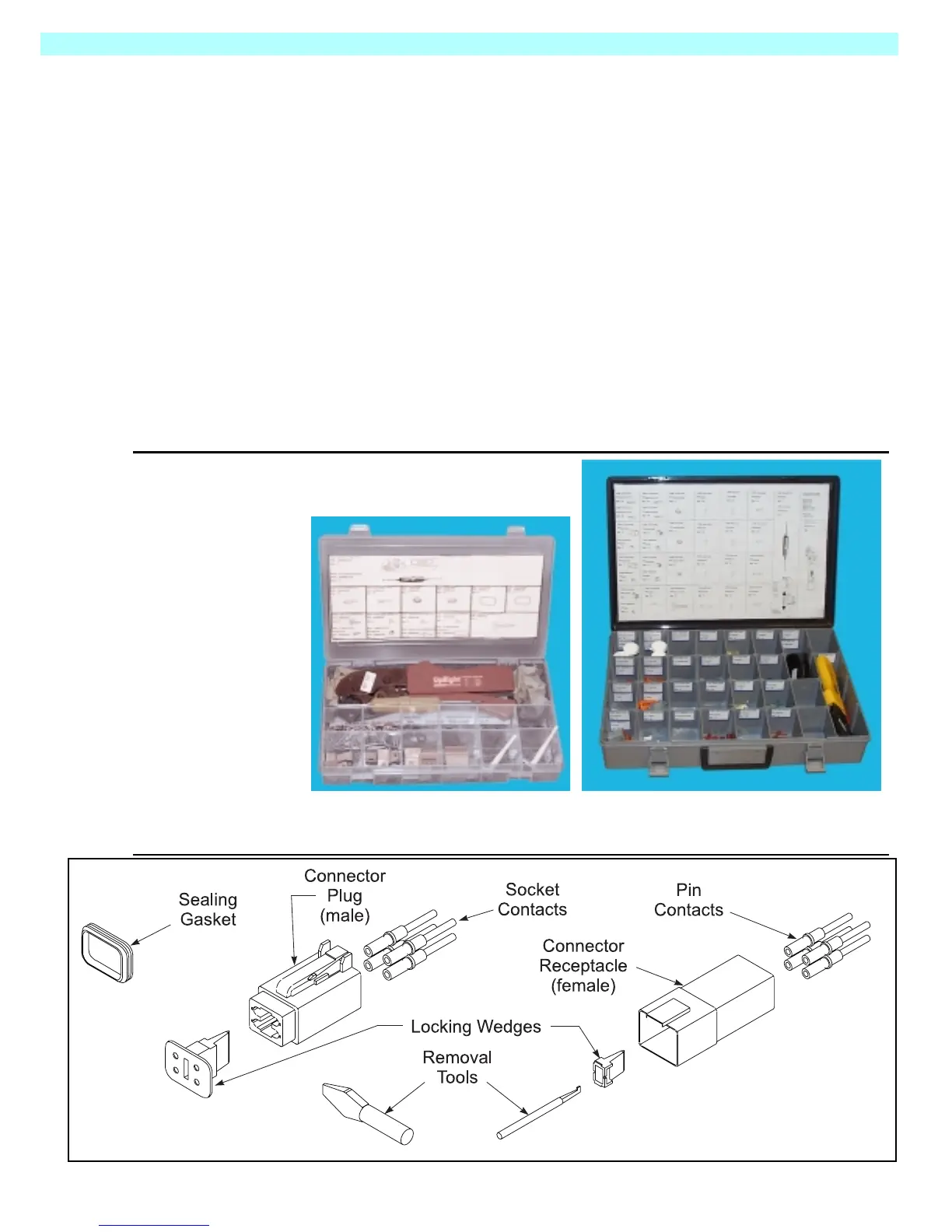

Figure 3-1:
UpRight Connector Kits
Figure 3-2:
Plugs and Receptacles, UpRight Connectors
Large KitSmall Kit
