Page 2-6
Operation and Specifications 2.3 - Operation
TM12 Work Platform - European
P
ARKING
B
RAKE
R
ELEASE

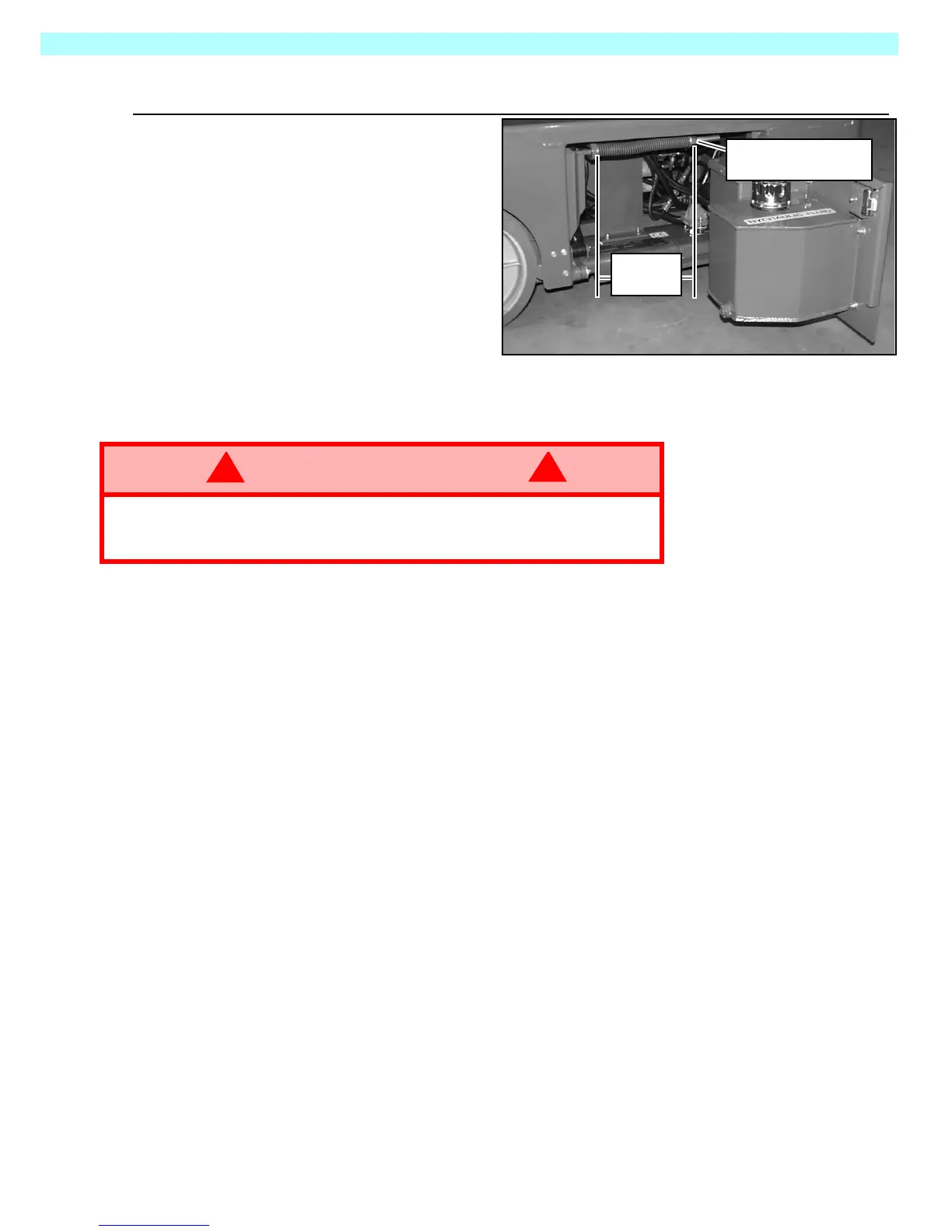

Figure 2-5:
Parking Brake Adjustment
Perform the following only when the
machine will not operate under its
own power and it is necessary to
move the machine or when winching
onto a trailer to transport.
1. Loosen the spring compression
nut so the spring is loose and
the brake bars are away from
the tires.
2. The machine will now roll when
pushed or pulled.
After moving the machine and before
normal operation:
1. Tighten the spring compression nut until the spring measures 22,2 cm-22,8 cm (8¾”-9”) in
length, verify that the brake bars have fully engaged the tires before the machine is oper-
ated.
A
FTER
U
SE
E
ACH
D
AY
1. Ensure that the platform is fully lowered.
2. Park the machine on a firm, level surface, preferably under cover, secure against vandals,
children and unauthorized operation.
3. Turn the Key Switch to OFF and remove the key to prevent unauthorized operation.
WARNING
!
!
Never tow faster than 0,3m/sec. (1 ft./sec.).
Never operate work platform with the Parking Brakes released. Serious
injury or damage could result.
Spring
Compression Nut
22,2 cm -
22,8 cm
