Upright TM12 Service & Parts Manual

Page 6-8

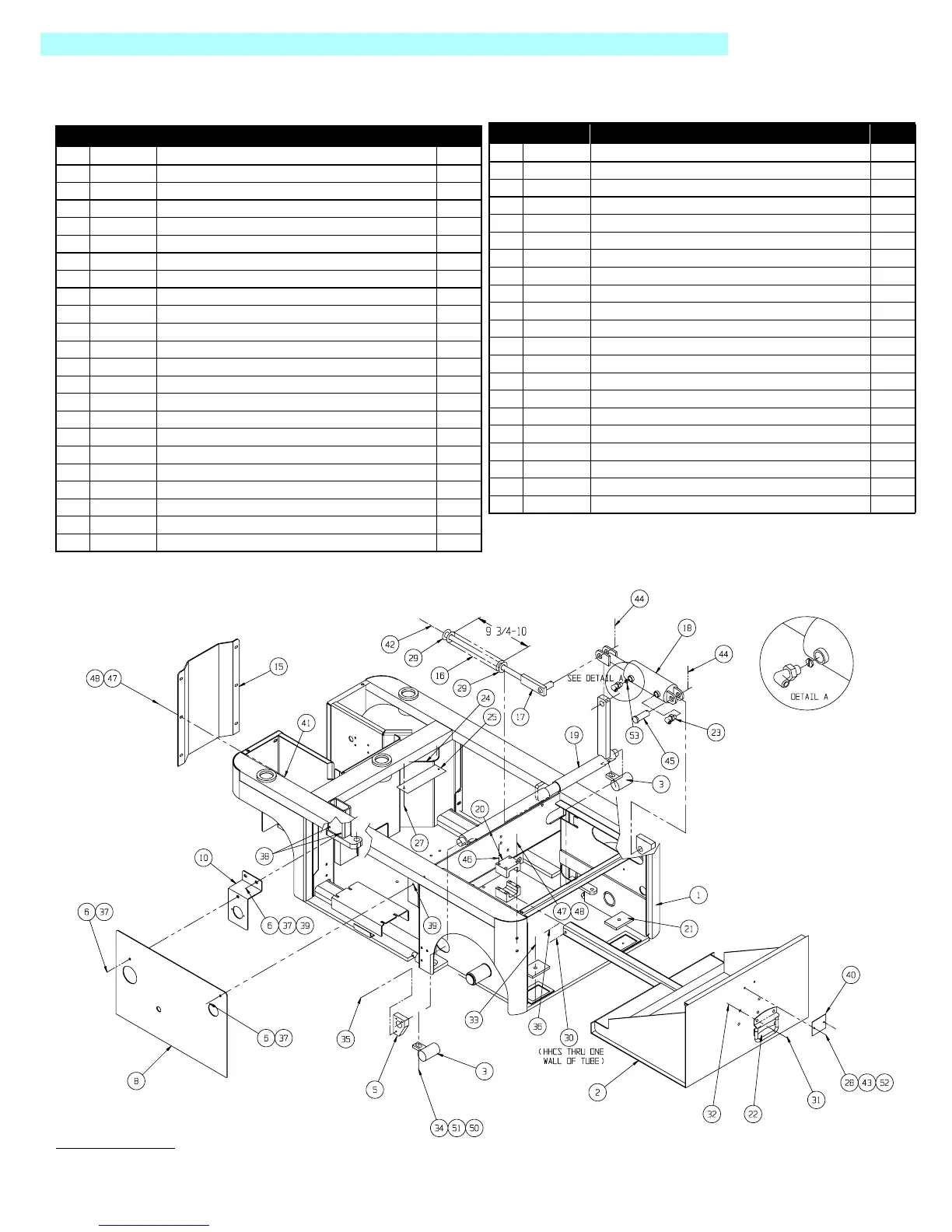

Illustrated Parts Breakdown - Chassis Assembly, 1 of 4
TM12 Work Platform - European
Chassis Assembly, 1 of 4
107002-000
Drawing # 1 of 4
ITEM PART NO. DESCRIPTION QTY
1 107133-000 CHASSIS WELDMENT TM12 1
2 065465-000 BATTERY PAN WELDMENT 1
3 065472-000 SHOE PARK BRAKE 2
5 065384-000 BRAKE BEARING 2
6 011252-004 SCREW HHC 1/4-20 X 1/2 LG 4
8 107131-000 CHASSIS ACCESS PANEL 1
10 107153-000 BRACKET CHARGER CORD 1
15 065532-000 FRONT COVER 1
16 010121-010 SPRING COMPRESSION 1
17 065474-000 TENSION BAR WELDMENT 1
18 065397-001 CYLINDER, BRAKE 1
- 065397-010 SEAL KIT -
19 065469-000 BRAKE ACTUATOR WELDMENT 1
20 065385-000 GUIDE PAD 2
21 065380-000 SLIDE PAD 2
22 026541-016 HANDLE 1
23 011935-001 FITTING 45° 4MBH - 4MJ 2
24 061796-099 GROMMET (EDGING) 1.33
25 065656-000 WEAR PAD 2
27 065368-000 TACK 2
28 026553-004 RIVET 3/16 X .250-.375 GRIP 2
29 014996-010 WASHER 5/8 SAE 2
30 011252-006 SCREW HHC 1/4-20UNC x 3/4 1
31 064397-003 NUT ACORN 10-24 NC 4
32 011709-004 SCREW MRDHD 10-24UNC x 1/2 4
33 026553-008 RIVET 3/16 X .501-.625 GRIP 2
34 011256-012 SCREW HHC 1/2-13UNC x 1 1/2 2
35 014066-006 SCREW 1/4 AB x 3/4 6
36 011248-004 NUT HEX 1/4-20 UNC 1
37 011240-004 WASHER FLAT STD 1/4 4
39 014252-004 NUTSERT 1/4-20 3
40 065569-000 LATCH PLATE 1
41 011830-006 BOLT CARRIAGE 5/16-18 x 3/4 6
42 011248-010 NUT HEX 5/8-11 UNC 1
43 011240-003 WASHER STD FLAT #10 1
44 011757-010 COTTER PIN, RUE RING, 3/4 2
45 011848-041 PIN 3/4 PIVOT 1
47 011248-005 NUT HEX 5/16-18 UNC 10
48 011240-005 WASHER FLAT STD 5/16 10
50 011240-008 WASHER 1/2 STD FLAT 2
51 011238-008 WASHER 1/2 SPLIT LOCK 2
52 010414-001 LOCKING PIN ASSY X 6 1
53 015919-004 ORIFICE #824 1
55 065352-000 CHANNEL 1
ITEM PART NO. DESCRIPTION QTY
