Page 2-8
Operation and Specifications 2.5 - Maintenance
TM12 Work Platform - European
2.5 M
AINTENANCE
B
LOCKING
T
HE
E
LEVATING
A
SSEMBLY

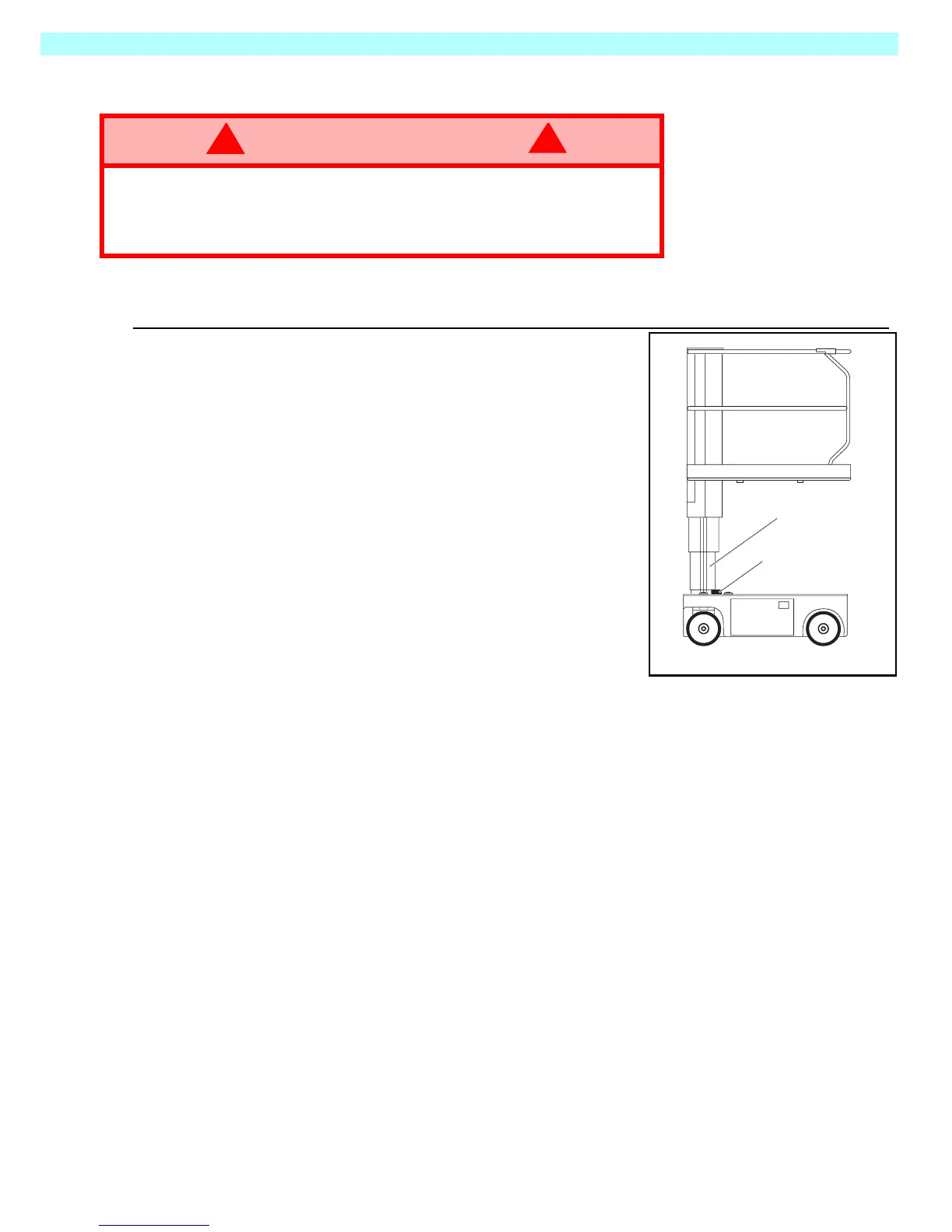

Figure 2-7:
Blocking the Elevating Assembly
B
LOCK
I
NSTALLATION
1. Park the work platform on firm, level surface.
2. Verify that the Chassis and Platform Emergency Stop
Switches are ON by pulling each button out.
3. Turn and hold Chassis Key Switch to CHASSIS.
4. Push Chassis Lift Switch to UP and elevate platform
approximately 1,2 m (4 feet).
5. Place a solid wood block, 51mm x 100mm x 45cm
(2”x 4”x18”) between the second mast section and
Chassis just behind the mast assembly.
6. Push Chassis Lift Switch to DOWN position and grad-
ually lower the platform until the second mast section
is supported by the block.
B
LOCK
R
EMOVAL
1. Turn and hold the Chassis Key Switch to Chassis.
Push the Lift/Lower Switch to UP and gradually raise
the platform until the wood block can be removed.
2. Remove the wood block.
3. Turn and hold the Chassis Key Switch to CHASSIS. Push the Lift/Lower Switch to DOWN
and completely lower platform.
WARNING
!
!
Never perform service while the platform is elevated without first blocking the
elevating assembly.
DO NOT stand in elevating assembly area while placing block.
DO NOT block elevating assembly with a load on the platform.
Number 2 Mast
Wood Block
