Page 3-15
Maintenance 3.10 - Hydraulics
TM12 Work Platform - European
M
AIN
H
YDRAULIC
M
ANIFOLD
Reference:•
“Figure 3-14: Hydraulic Manifold, Exploded View” on Page 3-15
Though it is not necessary to remove the manifold to perform all maintenance procedures, a
determination should be made prior to beginning as to whether or not the manifold should be
removed before maintenance procedures begin.

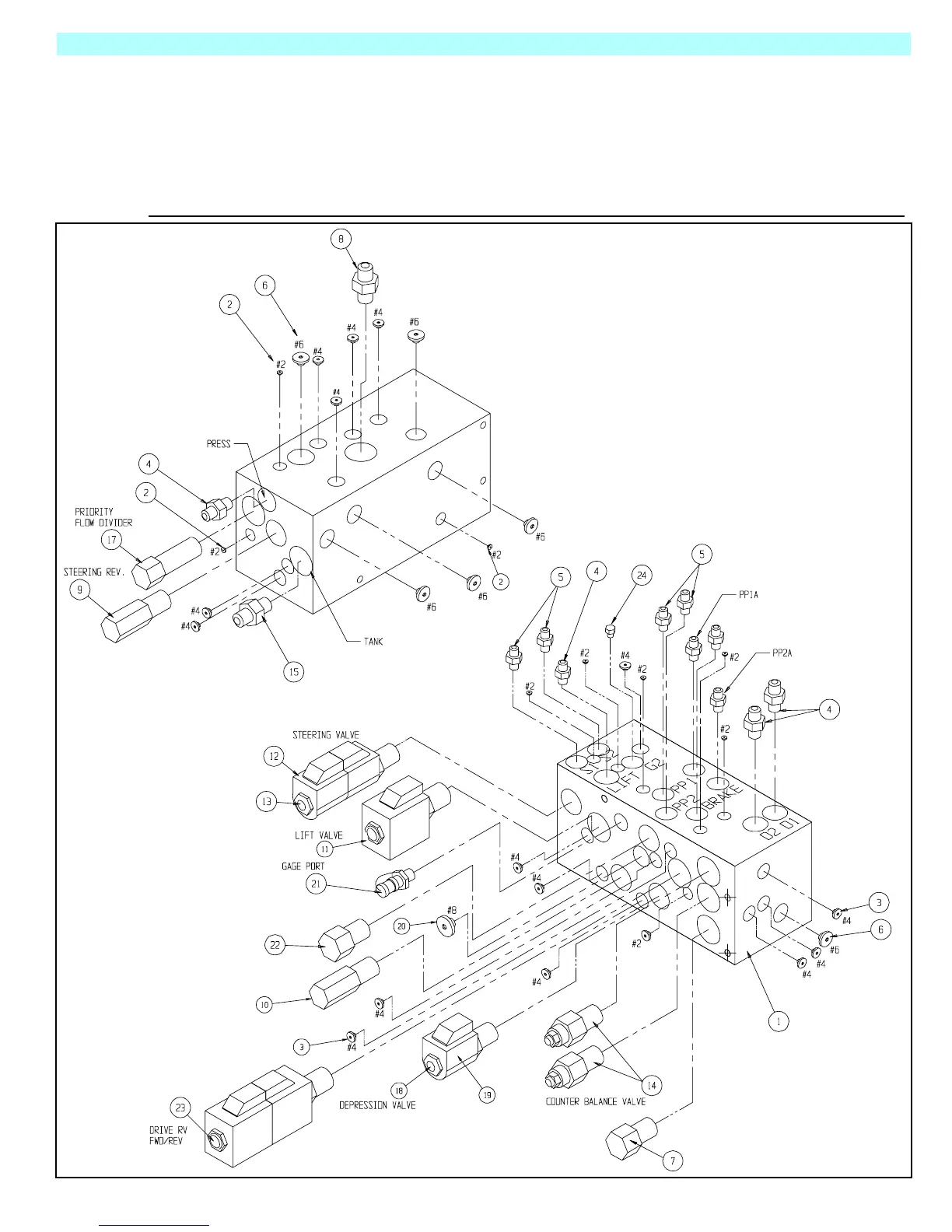

Figure 3-14:
Hydraulic Manifold, Exploded View
1. Control Valve Block
2. Fitting, #2Plug
3. Fitting, #4Plug
4. Fitting, Straight 6MB - 6MJ
5. Fitting, Straight 4MBH - 6MJ
6. Fitting, #6Plug
7. Plug Cavity, #82way
8. Fitting, 8MB - 6MJX
9. Relief Valve, Steering
(103,4 bar)
10. Relief Valve, Main (206,8 bar)
11. Lift Valve
2Position-4WaySolenoid
with Coil
12. Coil
13. Steering Valve
3Position-4WaySolenoid
with Coils
14. Counterbalance Valve
15. Fitting, Straight 8MB - 4MJ
16. -
17. Priority Flow Divider Valve
(3,8 LPM)
18. Depression Valve
2 Position Poppet Valve With
Coil
19. Coil
20. Fitting, #8Plug
21. Fitting Gage Port
22. Check Valve
23. Drive RV Forward/Reverse
Valve
3 Position - 4 Way Solenoid
with Coils
24. Fitting, Plug #4
