Installation/Wiring 3-9
3.2.10 Start/Reset/Enable Inputs
The remote control inputs allows the user to remotely control the operation (refer
to the Setup start method for further details.) The Start input is negative edge
triggered. The pulse should be held low for at least 500ms. Nominal input sink
rating at 24VDC is 10mA per input.

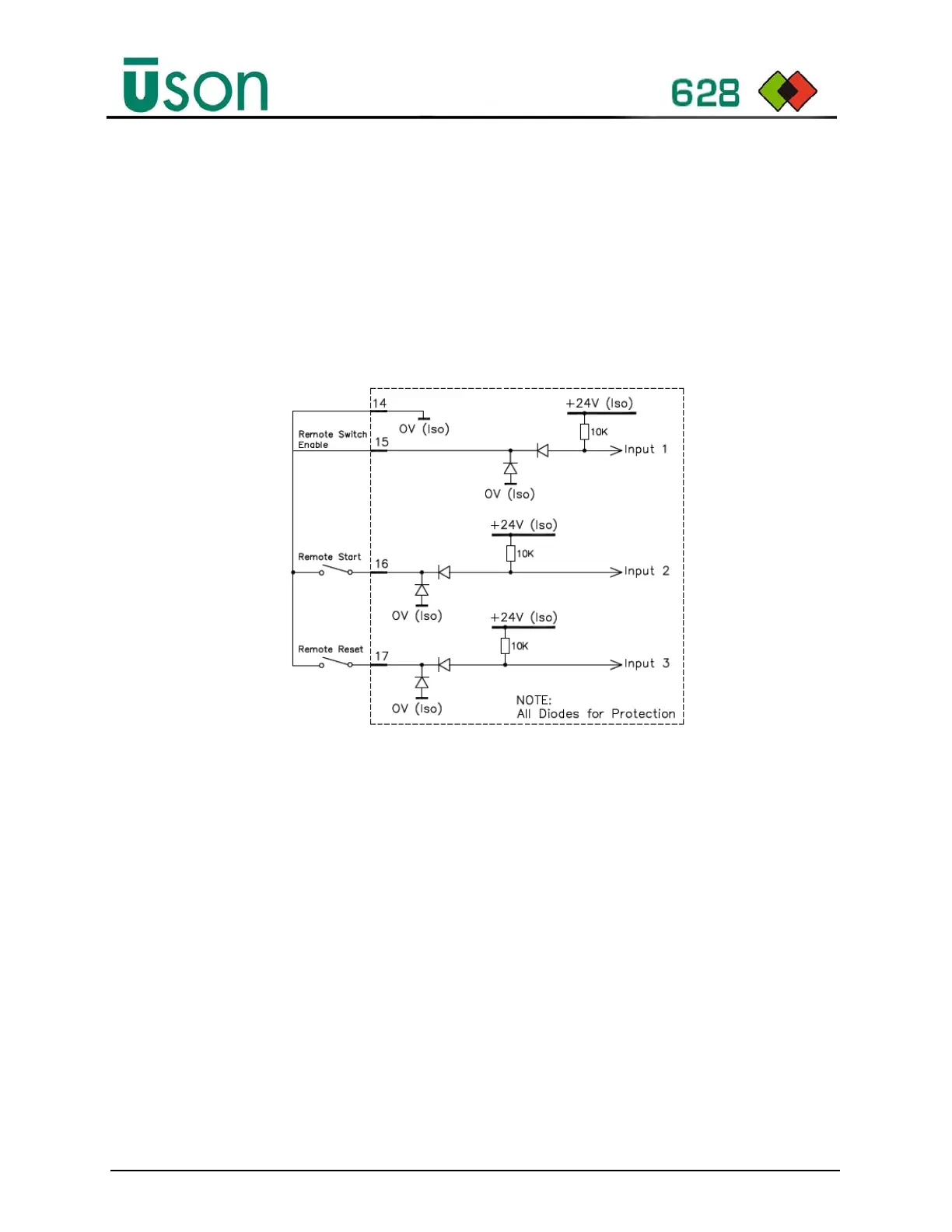

Figure 3–5 shows the input circuit for Start & Reset inputs.
Figure 3–5: Start/Reset Input Circuit
Notes:
All diodes for protection.
