3.2.11 Program Selection
The Remote Program Selection option allows the user to remotely control the
selection of individual programs.
Each input controls a 24V relay as shown in Figure 3–6.

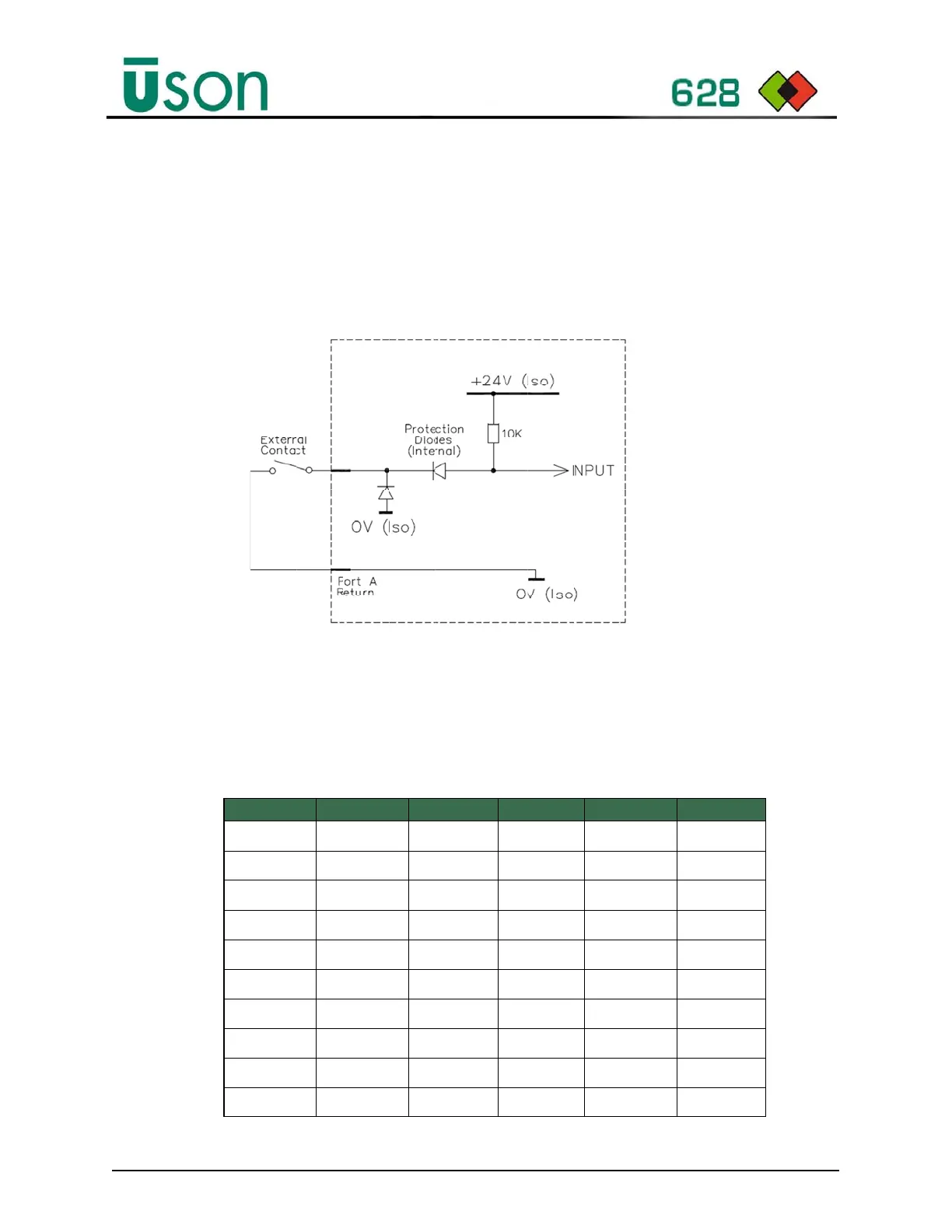

Figure 3–6: Program Selection Inputs
Binary Input Coding
The inputs are binary weighted where contact closure =1. Table 3–5 shows
example binary codes for program selection. Nominal current sink rating at 24V
DC is 10 mA per input.
Table 3–5: Binary Encoding for Program Selection
Program
E.10:2
4
E.6:2
3
E.7:2
2
E.8:2
1
E.11:2
0
Invalid 00000
100001
2
00 010
3
00 011
400100
500101
6
00 110
7
00 111
8
01 000
Input
ED CBA
