3.2.12 Alarm/ End-of-Cycle Outputs
These outputs are provided as volt free relay contacts. Figure 3–7 shows the output
circuit. Maximum contact rating is 24V at 50mA per output and a minimum
current of 10mA is required.
The Alarm Relay closed contact indicates a system fault or an error, including
power loss. An Alarm is maintained until a Reset is performed to clear the error.
The end of cycle relay closes momentarily, typical duration of 500 ms at the end of
a test cycle to indicate the test has completed and results outputs have been
updated.

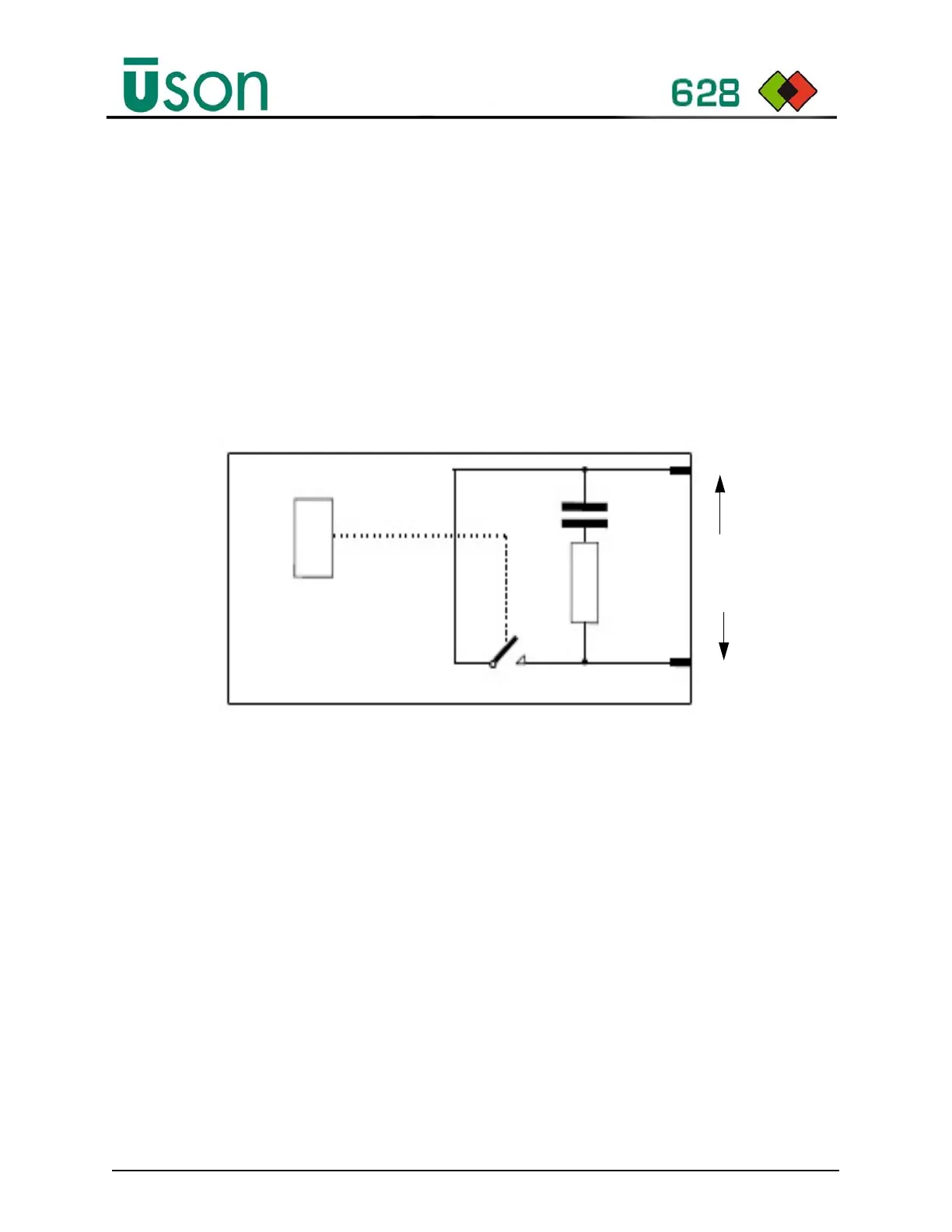

Figure 3–7: Alarm & End-of-Cycle Outputs
Alarm or
End-of-Cycle
Relay
See Table
for
Pinouts
