2DA/2DB
1-6-3
1-6-2

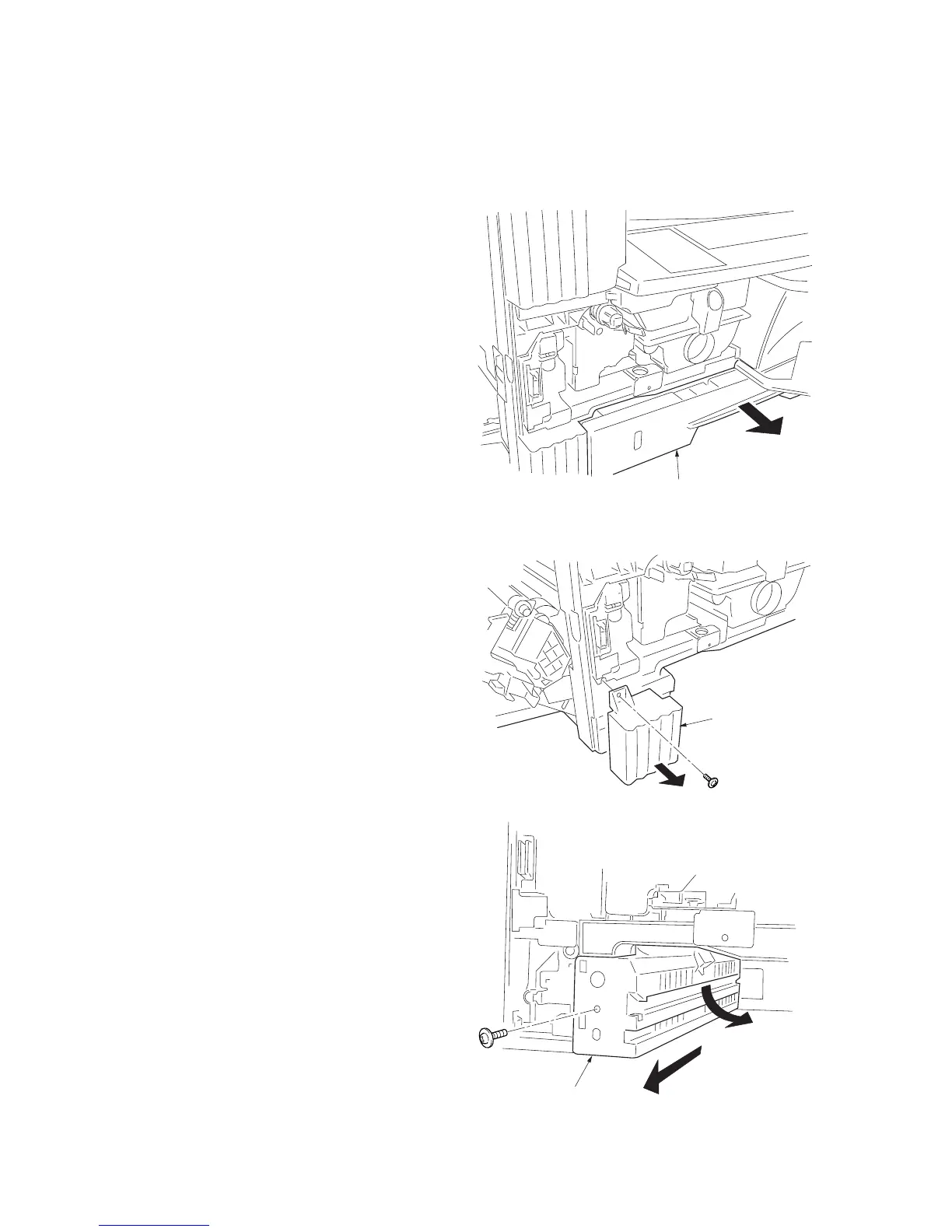

Paper feed section
(1) Detaching and refitting the separation pulley
Follow the procedure below to replace the separation pulley
.
Procedure
1.
Open the front cover and left cover
. Remove
the waste toner box.
2.
Pull out the drawer
.
Figure 1-6-1
3.
Remove the screw and then the front left
lower cover
.
4.
Remove the screw and then the lower paper
feed unit.
Drawer
Front left lower
cover
Lower
p
a
p
er feed unit
Figure 1-6-2
Figure 1-6-3
170
172
