(10-5) Adjusting the margins for printing
Make the following adjustment if the margins are not correct.
U402
U403
(P. 1-6-37)
U404
(P. 1-4-44)
Caution:
Check the copy image after the adjustment. If the margins are still incorrect, perform the above adjustments in
maintenance mode.

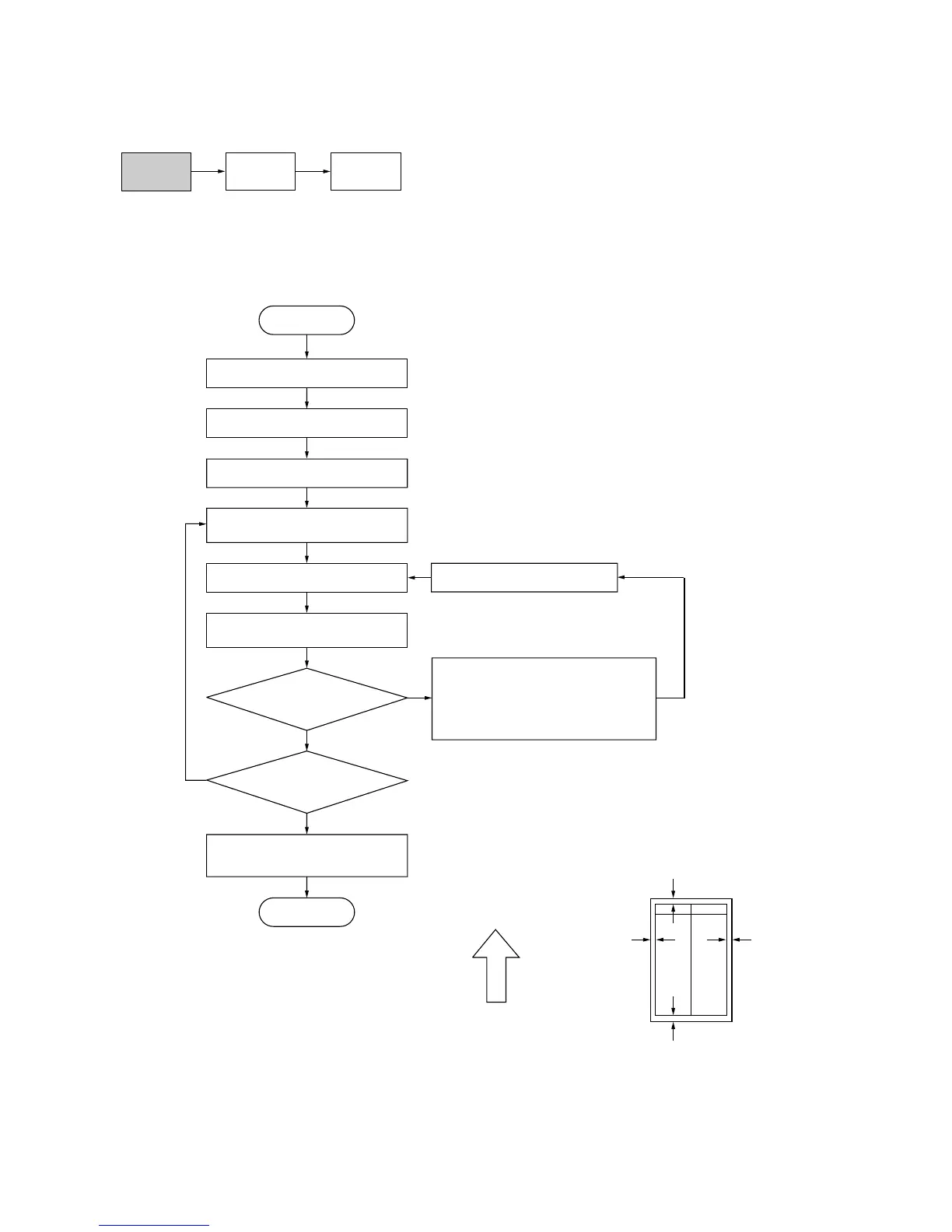

Procedure
Ejection direction
(reference)
Printer leading edge margin
(3 ± 2.5 mm)
Printer
left margin
(2.5
+1.5
mm)
Printer
right margin
(2.5
+1.5
mm)
Printer trailing edge margin
(3 ± 2.5 mm)
–2.0–2.0
Yes
No
Start
Enter maintenance mode.
Enter “402” using the numeric keys.
Press the start key.
Press the start key to output a test
pattern using A3/11" × 17" paper.
Press the start key.
The new setting is stored.
Setting range (initial setting)
LEAD: 0.0 – +10.0 (3.0)
AC: –3.4 – +10.0 (3.0)
TRAIL: –5.0 – +10.0 (4.0)
Changing the value by 1 moves the
leading edge by 0.1 mm.
Select the items to be adjusted
using the up/down cursor keys.
Are the margins correct?
Change the setting.
Increasing the value using the right cursor
key makes the margin wider.
Decreasing the value using the left cursor
key makes the margin narrower.
Press the interrupt key.
LEAD: Printer leading edge margin
AC: Printer left/right margins
TRAIL: Printer trailing edge margin
Yes
No
Press the stop/clear key to
exit maintenance mode.
End
Proceed to
another mode?
Figure 1-6-35
