Utax cd 1120 User Manual

2DA/2DB-1
1-6-46
(3) Detaching and refitting the fixing heater M and S
Follow the procedure below to replace the fixing heater M and S.
Procedure
1. Remove the fixing unit and separate the fixing
right unit and left unit (see pages 1-6-43, 45).
2. Remove the two screws holding each of the
fixing heater M and S on the front and rear of
the fixing left unit.
3. Pull out the fixing heater M and S from the
fixing left unit.
4. Replace the fixing heater M and S, and refit
all the removed parts.
Fixing heater M
Fixing heater M
Fixing heater S
Fixing heater S
Fixin
g
heater S
Fixing heater M

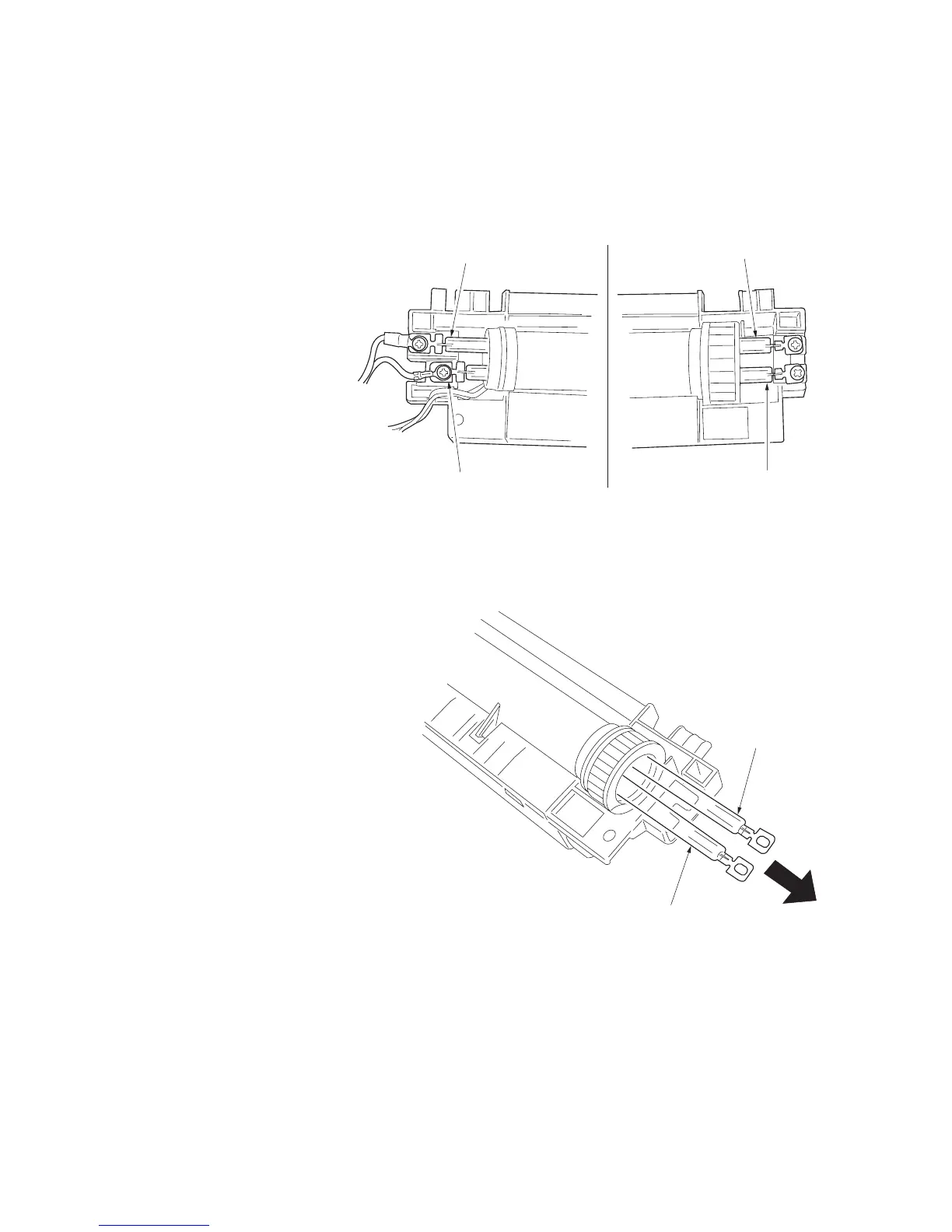

Figure 1-6-83
Figure 1-6-84
