1-6-6 Transfer section
(1) Detaching and refitting the transfer roller
Follow the procedure below to replace the transfer roller.
Procedure
1. Remove the paper conveying unit (see page
1-6-11).
2. Remove the screw holding each of the front
and rear release lever stoppers and then the
stoppers from the release lever shaft.
3. Detach the fitting portions located on the front
and rear and then remove the transfer roller
from the paper conveying unit.
4. Replace the transfer roller and refit all the
removed parts.
Paper conveying unit
Rear release
lever stopper
Front release
lever stopper
Transfer roller
Fitting portion
Fitting portion
Paper conveying unit

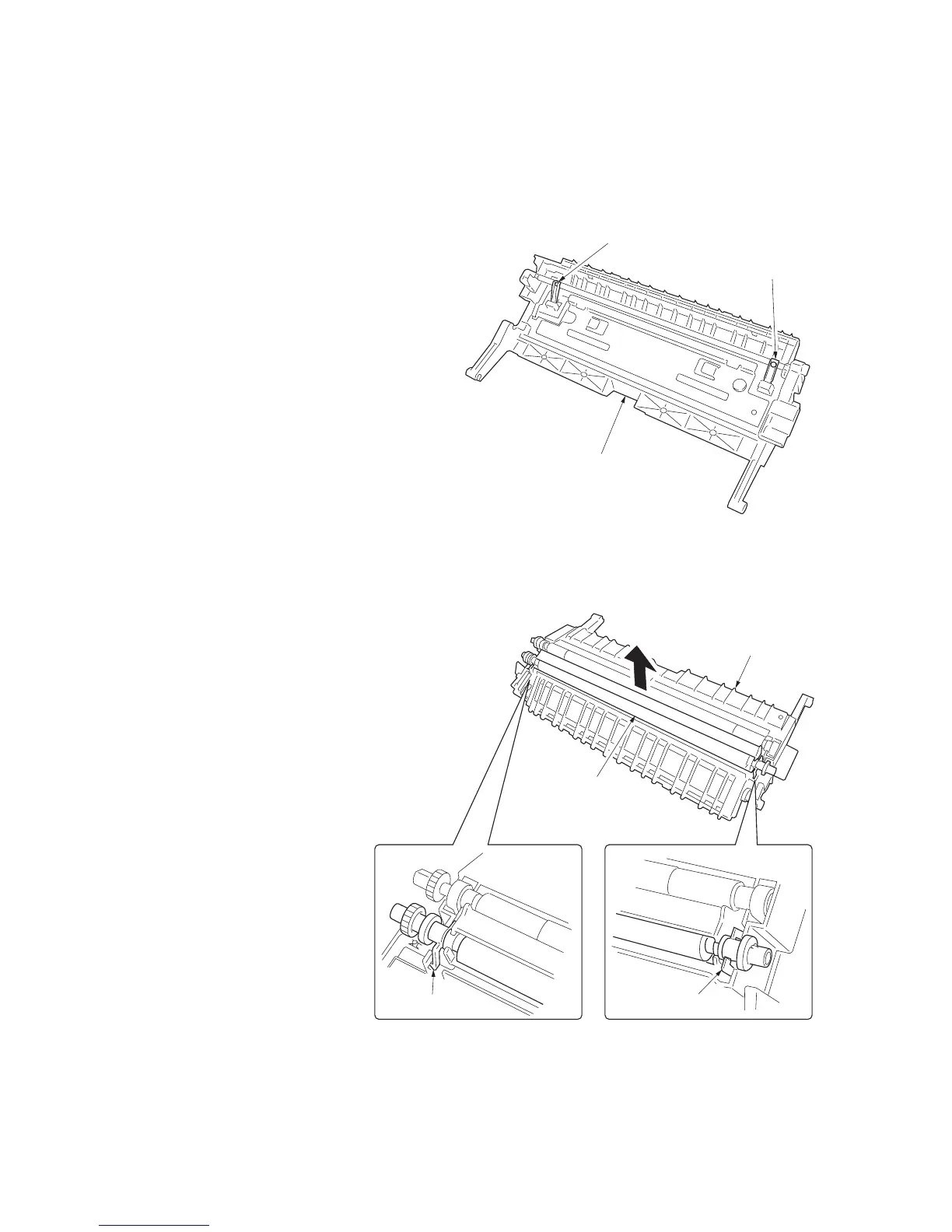

Figure 1-6-74
Figure 1-6-75
