Utax cd 1120

2DA/2DB
1-1-5
1 Paper feed section
2 Optical section
3 Drum section
4 Developing section
5 Transfer and separation section
6 Fixing section
7 Exit and switchback section
8 Duplex section

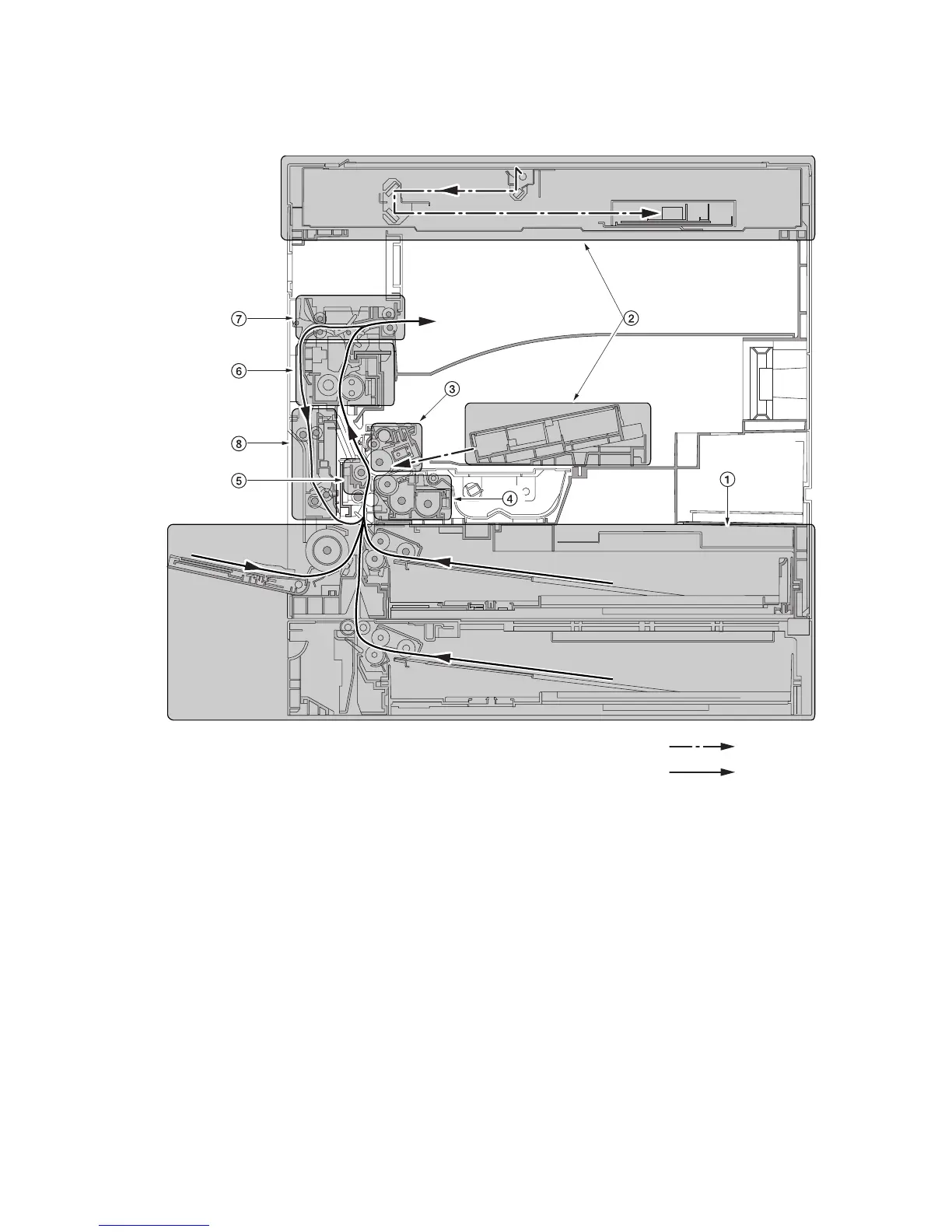

Figure 1-1-3 Machine cross section
1-1-3 Machine cross section
Light path
Pa
p
er
p
ath
