2DA/2DB
2-1-1
2-1-1 Paper feed section
The paper feed section conveys paper from the drawer (one drawer is standard for 16 ppm model/two drawers are
standard for 20 ppm model) or bypass tray to the left and right registration rollers, at which point secondary feed takes
place and the paper travels to the transfer section in sync with the printing timing.
Drawer can hold up to 300 sheets of paper. Paper is fed from the drawer by the rotation of the forwarding pulley and
paper feed pulley. The separation pulley prevents multiple sheets from being fed at one time, via the torque limiter.
The bypass tray can hold up to 50 sheets of paper. Paper is fed from the bypass tray by the rotation of the bypass paper
feed pulley.

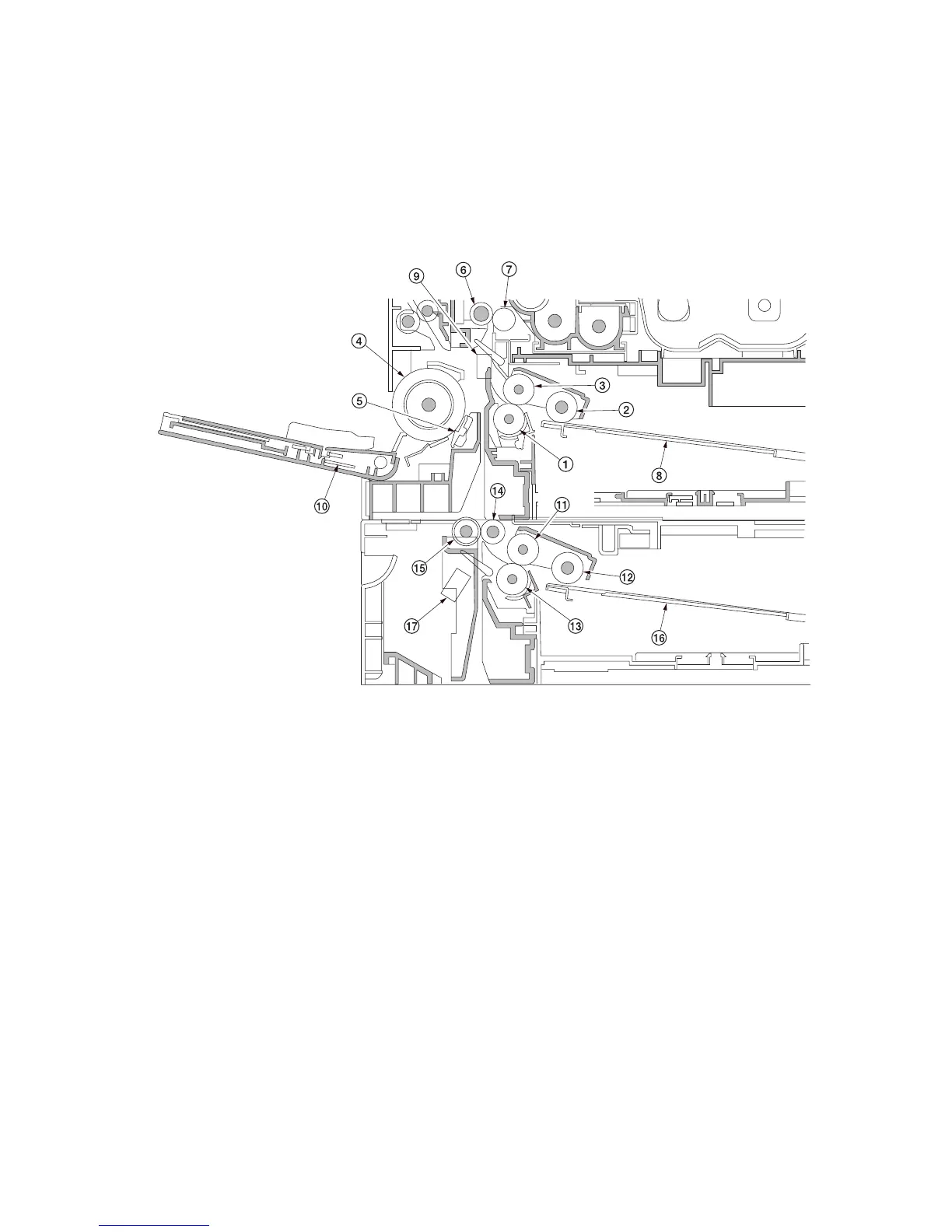

1 Separation pulley
2 Forwarding pulley
3 Paper feed pulley
4 Bypass paper feed pulley
5 Bypass separation pad
6 Left registration roller
7 Right registration roller
8 Drawer lift
9 Registration switch (RSW)
Figure 2-1-1 Paper feed section
0 Bypass paper width switch
(BYPPWSW)
! Drawer paper feed pulley*
@ Drawer forwarding pulley*
# Drawer separation pulley*
$ Feed roller*
% Feed pulley*
^ Drawer lift*
& Drawer feed switch (DFSW)*
*: 20 ppm model only
